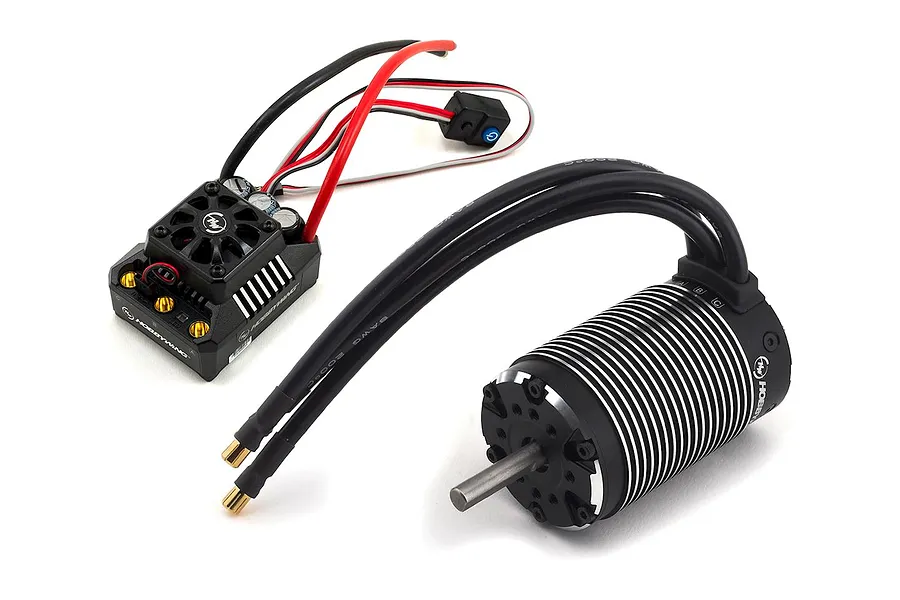

Hobbywing EzRun Max6 5687SL 1100Kv Brushless 160A Motor and ESC Combo

  • Brushless

Part no. 38010802

1 in stockNo reviews yet

$419.30

or 4 fortnightly payments of $104.82 with afterpay or PayPal, or zip

Hobbywing EZRun MAX6 combo with 5687SL 1100kV motor and 160A sensorless ESC, built for large scale 8S RC vehicles.

  • Includes 5687SL 1100kV motor suited to 1/5th scale RC vehicles
  • 160A continuous / 1,050A peak current ESC for large scale 8S builds
  • Suitable for 1/6th touring car, buggy, truggy, and truck applications
  • BEC Output: 6V/7.2V switchable, 6A continuous (switch-mode BEC)
Select Male Connector
Select Wiring Configuration

Want more than 1? and we'll email you when they're here.

  • 1 in stock · Ships Wednesday · order by Wednesday

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Overview

The Hobbywing EZRun MAX6 Sensorless Brushless ESC & Motor Combo includes the 5687SL 1/6 & 1/5 scale, 1100kV motor and is a great option for high-end, aggressively powered, large scale 8S builds.

Note

Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Specifications

Motor
Model5687SL-1100KV
Pole4
KV (No-load)1100KV
Resistance0.0041 Ω
Current (No-load)4.1A
Max Output Power5800W
Current at the point of M.O.P200A
Motor Diameter56mm
Motor Length87mm
Shaft Diameter8.0mm
Shaft Length31.0mm
LiPo Cells3-8
Weight916g (32.21oz)
Applicable1/5th RC Vehicles Truck/Dragster
ESC
Continuous Current160A
Peak Current1,050A
Motor TypeSensorless Brushless Motor
Applications1/6th Touring Car, Buggy, Truggy and Truck
Motor LimitWith 6S LiPo/18S NiMH: KV ≤1500 (5892 size motor); With 8S LiPo/24S NiMH: KV ≤1200 (5892 size motor)
LiPo/NiMH Cells9-24S NiMH, 3-8S LiPo
BEC Output6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
Cooling FanPowered by the stable BEC voltage of 6V/7.2V
ConnectorsInput End: None, Output End: Female 6.5mm Gold Connectors (pre-soldered onto the PCB of the speed controller)
Size (LxWxH)70x56x46.5mm
Weight240g
Programming PortFAN/PRG Port

Motor

TypeBrushless
KVRPM (Revolutions Per Minute) per Volt1100KV
LengthLength of the motor can in mm87mm
DiameterDiameter of the motor can56mm
Shaft Diameter8mm

ESC (Electronic Speed Controller)

For Motor TypeBrushless
Max Voltage29.6V
Waterproof DesignYes
Continuous Amps160A
Motor Connectors6.5mm Bullet
Battery ConnectorN/A
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodFan
BEC Voltage6V, 7.2V
Dual MotorNo
