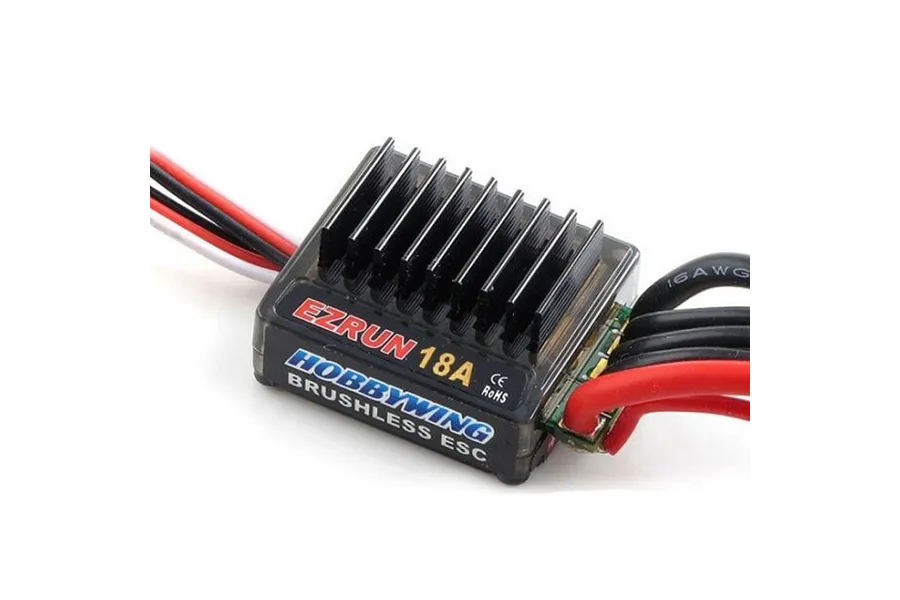

Hobbywing EzRun 18A Sensorless Brushless ESC
Brand: Hobbywing
|
SKU: 81010020
Related Products
Description
Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.
Features
- Compatible with sensorless brushless motors.
- High quality components, big current endurance.
- Excellent start-up, acceleration and linearity features.

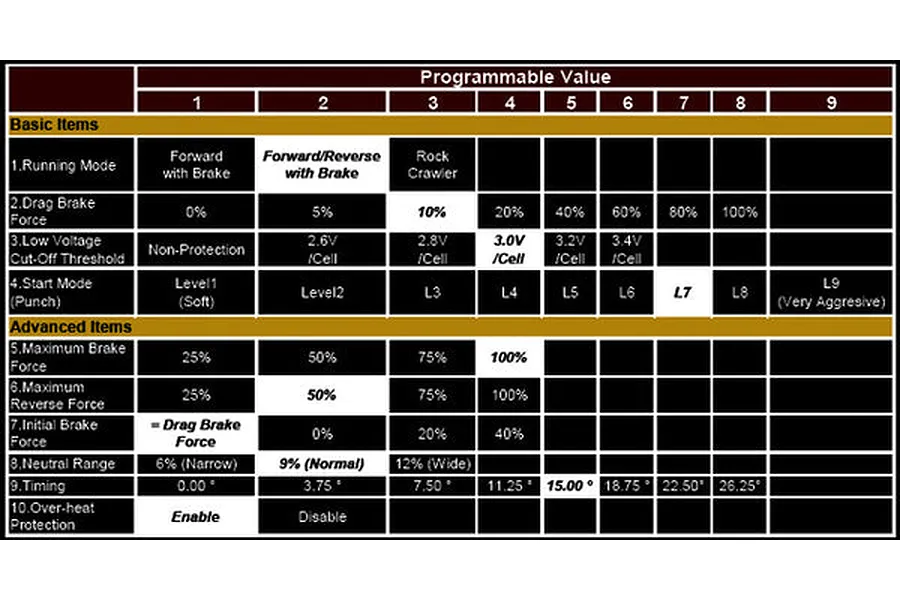

- Plenty of programmable items, suitable for various of chassis's, tires and racing tracks.
- Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
- Internal timing can be changed easily to make the ESC suitable for various of motors.
- Easily programmed with the SET button, LED Program Box, Multifunction LCD Program Box and USB Link Software.
- ESC firmware can be updated through the USB adapter in the LCD Program Box.
Specifications
- Output: Continuous 18A, burst 50A.
- Input: 4-9 cells NiMH/NiCd or 2-3S LiPo.
- BEC: 6V/1A (Linear mode built-in BEC).
- Resistance: 0.01 Ohm.
- Motor Supported: Sensorless Brushless Motor.
- Suitable Motor:
- With 4-6 cells NiMH/NiCd or 2S Lipo: On-Road?12T, Off-Road?8T;
- With 6-9 cells NiMH/NiCd or 3S Lipo: On-Road?18T, Off-Road?24T;
- Suitable Car: 1/18 on-road sport.
- Cooling Fan: Not included.
- Size: 31.5mm(L) * 27.5mm(W) * 15mm(H).
- Weight: 19g (Without wires)
Specifications
| ESC (Electronic Speed Controller) | |
|---|---|
| For Motor Type: | Brushless |
| Waterproof Design: | No |
| Continuous Amps: | |
| Motor Connectors: | Bare Wires |
| Battery Connector: | Bare Wire |
| LVC: | Yes |
| Programmable: | Yes |
| Cooling Method: | Fan |
| BEC Voltage: | 6v, 7.2 |
| Dual Motor: | No |
