Hobbywing XERUN XR10 PRO-Elite G2S Brushless ESC
Hobbywing XERUN XR10 PRO-Elite G2S Brushless ESC
Hobbywing XERUN XR10 PRO-Elite G2S — 160A/1200A brushless ESC for 1/10 & 1/12 scale, 32-bit M4, sensored/sensorless, 5–7.4V BEC.
- 160A continuous / 1200A burst current for 1/10 and 1/12 scale competition
- 32-bit M4 processor with sensored and sensorless motor support
- Built-in switch mode BEC: 5–7.4V adjustable, 10A max output
- Programmable via buttons, program card, or app; OTA updates via optional module
- Reverse polarity protection and frameless fan cooling design
Unleash top performance in your 1/10th scale RC car with the Hobbywing XERUN XR10 PRO-Elite G2S. This powerful brushless ESC handles 2S LiPo batteries, delivers 160A continuous current (1200A burst), and works with sensored/sensorless motors. Its 32-bit M4 brain ensures precise control, with features like programmable settings, real-time data logging (optional module), and OTA updates (optional module & Bluetooth) to fine-tune your ride. User-friendly programming via buttons, program card, or app is supported (some features require optional modules).
Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.
- Reverse polarity protected — in the event a user reverses the polarity, the ESC will be protected from major damage.

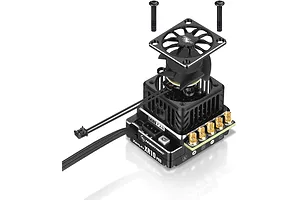

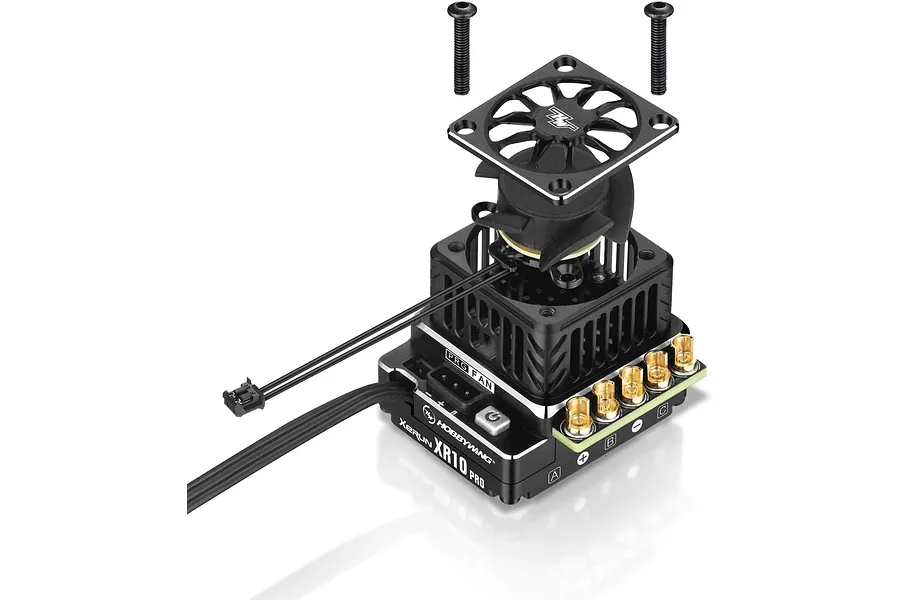

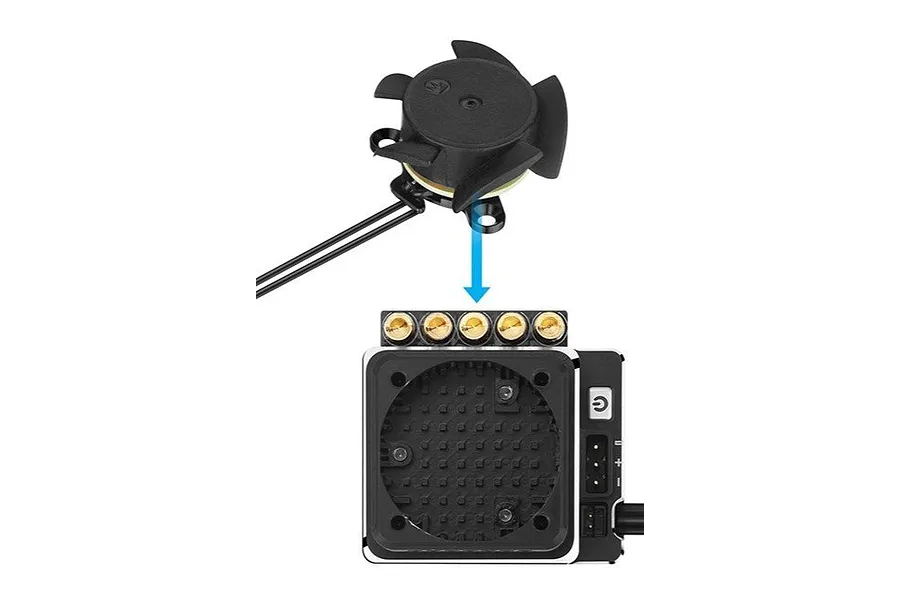

- Frameless fan design allows rapid transmission of internal heat to integrated housing radiator for superior and quick cooling.
- Frameless fan blades use a special material for maximum durability and greatly reduce damage caused by the impact of foreign objects.

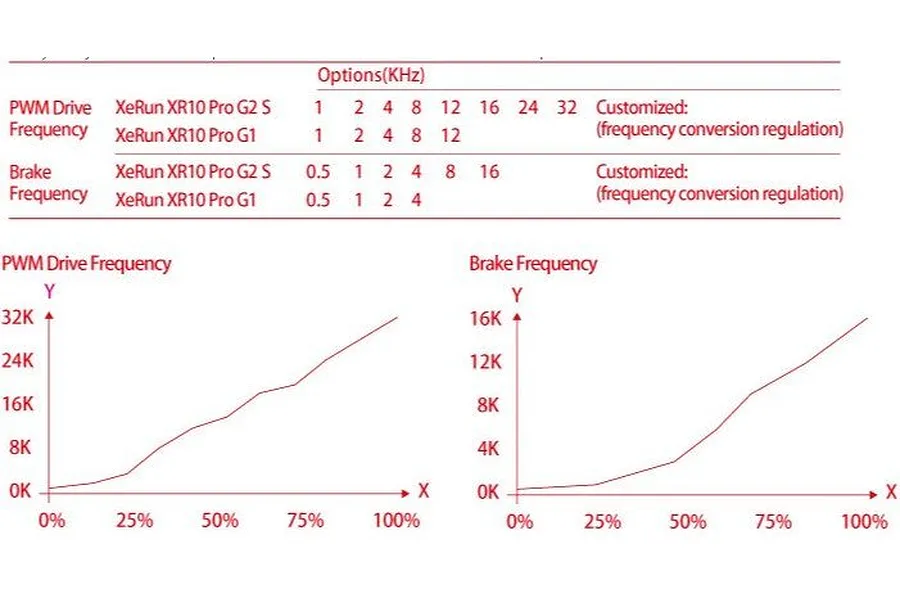

- Throttle and Brake PWM Frequency support the ability to customise the frequency of each throttle segment.

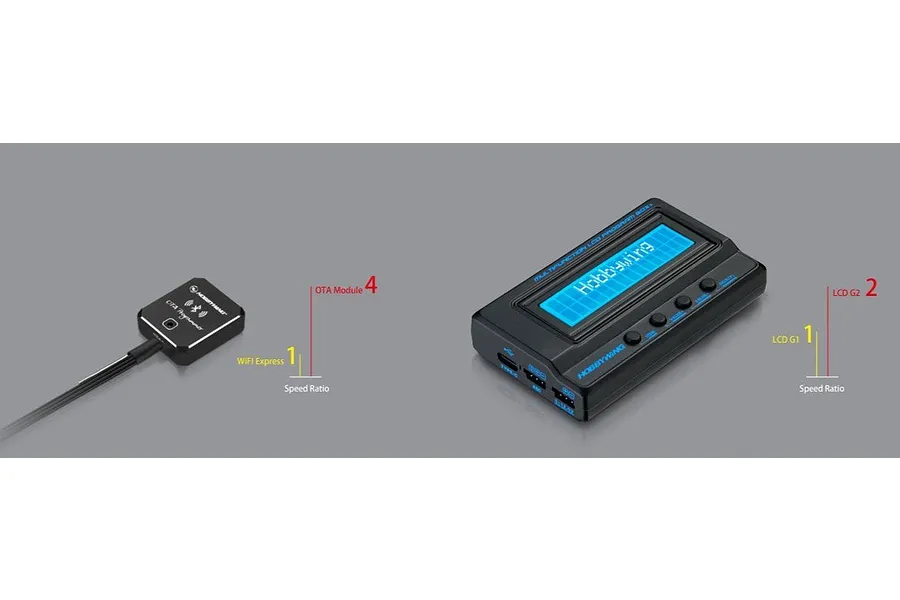

- Communication protocol used to set parameters and significantly increase the speed of firmware upgrades; the LCD G2 is twice as fast as the OTA Programmer, and speed is 3–4 times faster.
- Parameters are optimised for top-level competition applications, including new AC line switching, initial start-up force adjustment, drag acceleration adjustment, etc.
- Extra brake provides bigger brake force than standard brakes.
- Built-in switch mode BEC with a maximum output of 10A and voltage adjustable from 5V to 7.4V (step: 0.1V) for usage with high voltage servos.
- 1x Hobbywing XERUN XR10 PRO-Elite G2S Brushless ESC
-
Length
- 37.5 mm (1.48 in)
-
Width
- 32.5 mm (1.28 in)
-
Height
- 30.9 mm (1.22 in) plus fan
-
Weight
- 88 g (3.10 oz)
-
Continuous/Peak Current
- 160/1200A
-
Waterproof
- No
-
Motor Limit
- 3650 Brushless Motor — Touring Car T≥4.5T / Buggy: T≥5.5T
-
BEC
- 5–7.4V
-
Voltage Limit
- 7.4V
-
Programmable
- Yes
-
Scale
- 1/10, 1/12
-
Sensored
- Yes
-
For Motor Type
- Brushless
-
Waterproof Design
- No
-
Motor Connectors
- Bare Wires
-
Battery Connector
- Bare Wires
-
LVCLow Voltage Cut-Off. Required for Lithium batteries.
- Yes
-
Programmable
- Yes
-
Cooling Method
- Fan
-
BEC Voltage
- 6V, 7.2V
-
Dual Motor
- No
