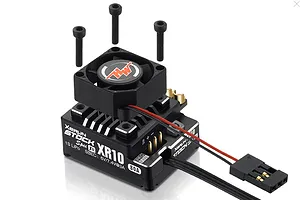

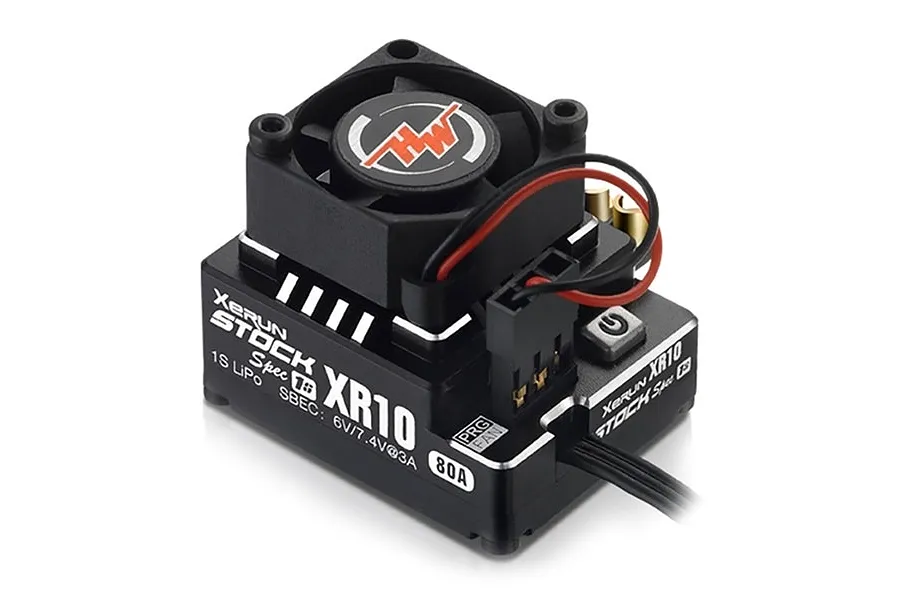

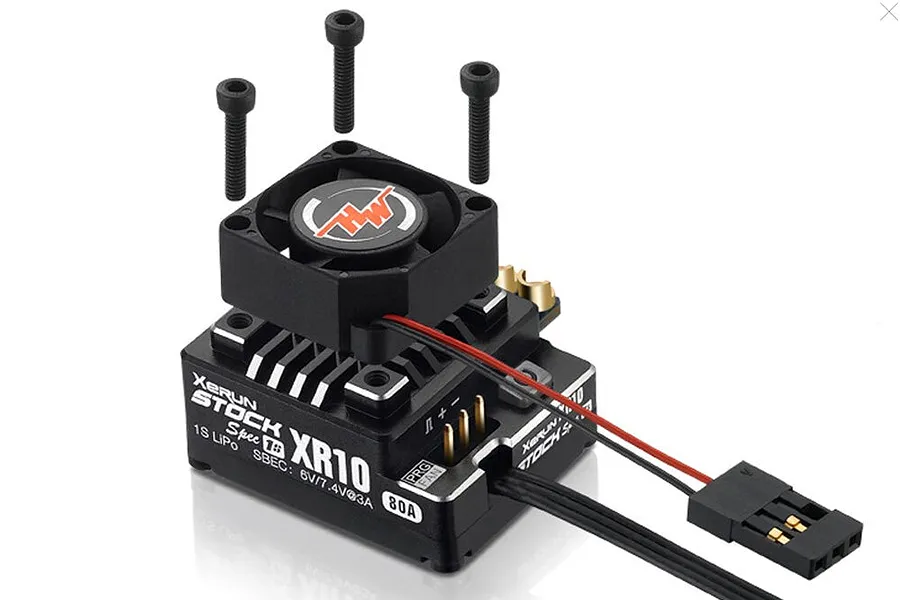

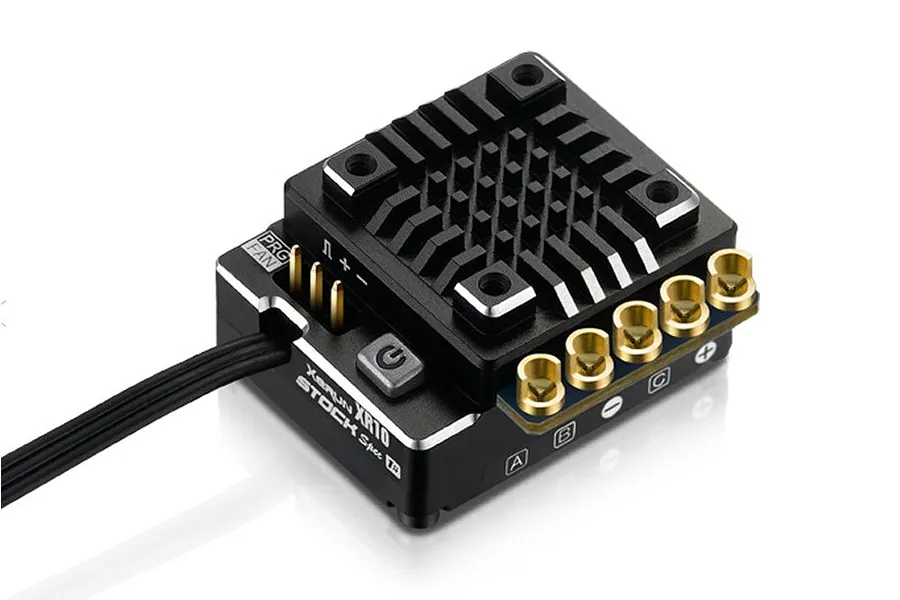

Hobbywing XERUN XR10 Pro Stock 1S Brushless ESC

Brand: Hobbywing | SKU: 30112751
Hobbywing
1 in stock
$336.72
Description
Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

1S ESC FOR THE SERIOUS 1/12 RACER

The reliable hardware combined with powerful software (contains 5 common select-to-use profiles) provides an ideal power solution to the 1/10th , 1/12th Stcok 1S class racing. The independent and adjustable throttle & brake PWM frequencies guarantee users the precise and accurate throttle and brake control.

The small size (20% smaller than the standard version XeRun XR10 Pro 1S) saves space and the light weight (only 23.5g w/o wires) provides more weight margin when adjusting the balance of the chassis.

With Hobbywing's "WiFi Express" module and iPhone or an Android phone (with the HOBBYWING WiFi Link software installed), the user can remotely program parameters, upgrade firmware and check relevant data of the ESC without leaving the control stand.

This ESC features the data-logging function which will record the maximum ESC& motor temperatures, the maximum motor RPM, and etc. in real time and allows users to check those data via a LCD program box or WiFi module after each use.

Features
    • Special Design for Stock 1S Class Racing: Reliable hardware combined with powerful software (contains 5 common select-to-use profiles) provides an ideal power solution for 1/12th Stock 1S class racing
    • Super Internal BEC: The built-in boost BEC with a maximum output of 6A and voltage adjustable between 6V and 7.4V allows users to use various, servos and receivers (without connecting any extra battery).
    • Adjustable Throttle & Brake PWM Frequencies: The independent and adjustable throttle & brake PWM frequencies guarantee precise and accurate throttle and brake control.
    • Programming/Upgrading/Data Reading Wirelessly: With Hobbywing's optional "WiFi Express" module (HWA30503000 - not included) and iPhone or an Android phone (with the HOBBYWING WiFi Link software installed), the user can remotely program parameters, upgrade firmware and check relevant data of the ESC without leaving the control stand.
    • Built-in Electronic Switch: The internal electronic switch with a lifespan of over 50,000 on/off cycles completely solves the problems like stuck reed, rust contact points, and automatic shutdown that conventional mechanical switches often have.
    • Data-logging Capability: This ESC features the data-logging function which will record the maximum ESC & motor temperatures, the maximum motor RPM, and etc. in real time and allows users to check those data via a LCD program box or WiFi module after each use.
Specifications
  • Cont./Peak Current: 80A/380A
  • Input Voltage: 1S Lipo/3-4 Cell NiMH
  • BEC Output: 6V/7.4V@3A
  • Wires: Black-14AWG-200mm
  • Connectors: No
  • ESC Programing: LCD Program Box or WiFi Module
  • Firmware Upgrade Supported: Yes
  • Size: 31.6x25.8x16.2mm
  • Weight: 23.5g (w/o Wires)
  • Applications: Stock 1S class of 1/10th & 1/12th on-road racing.
  • KV Rating/T Count: ?10.5T, 3650-size Motor
Specifications
ESC (Electronic Speed Controller)
For Motor Type: Brushless
Waterproof Design: No
Continuous Amps:
Motor Connectors: Bare Wires
Battery Connector: Bare Wire
LVC: Yes
Programmable: Yes
Cooling Method: Fan
BEC Voltage: 6v, 7.2
Dual Motor: No
