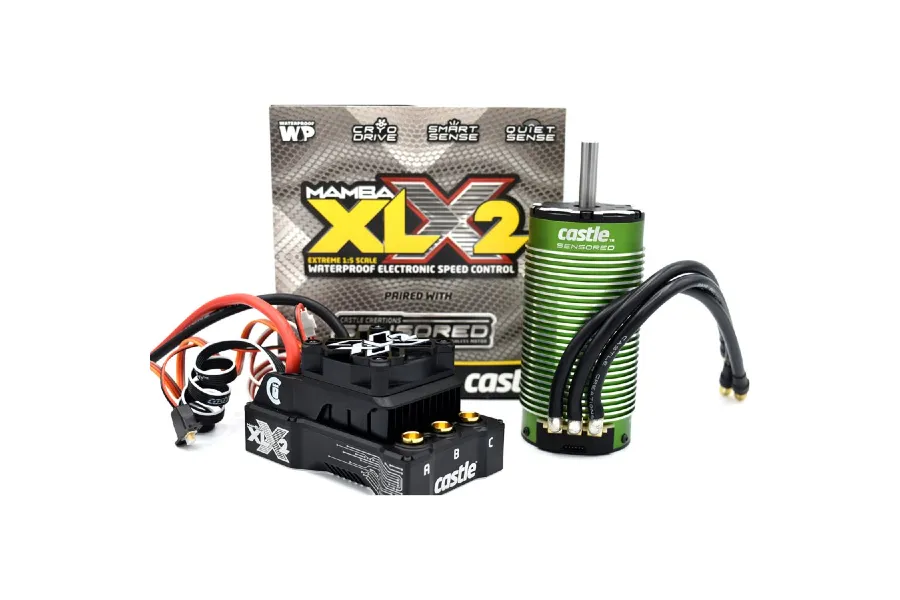

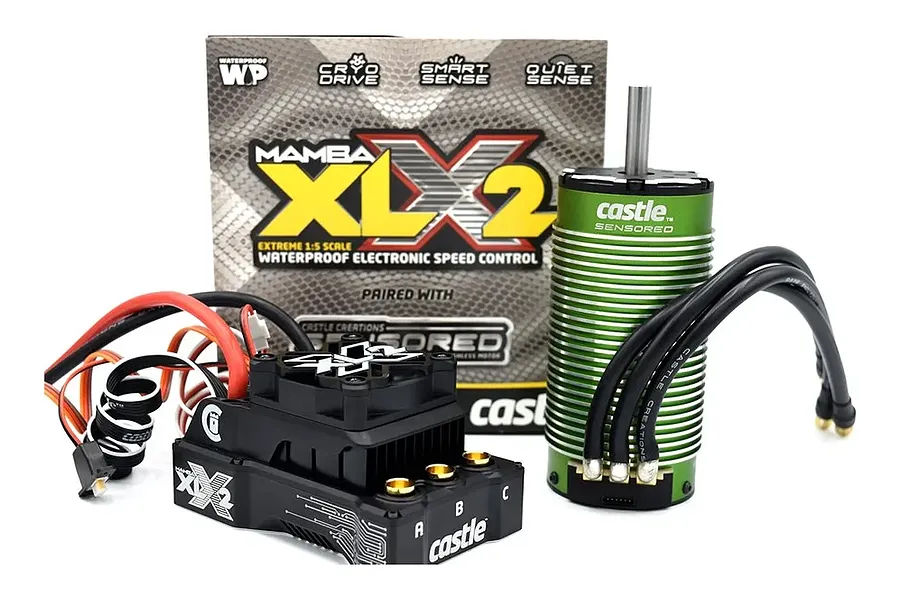

The Mamba XLX2 and 2028-800Kv combo is designed for the most extreme and demanding RC applications. The massive motor and high power ESC are capable of pushing vehicles and drivers to their limits and beyond. This is the perfect combo for vehicles weighing up to 30 lbs and up to 8S LiPo. CRYO-DRIVE™, Castle's proprietary breakthrough technology, integrates unique software and dedicated hardware to reduce heat and dramatically increase performance. Thousands of times per second, the XLX2 software minimises the amount of time the electrical components spend generating heat. These software advancements work in parallel with an open housing design which enables increased directional airflow to cool critical components. With a new 50mm fan and forged elliptical fin heatsink, the XLX2 maximises airflow throughout the system, taking thermal performance to a whole new level. The results are more power handling, cooler ESC temperatures and longer run-times for ultra-high performance. You can easily optimise the ESC for any driving condition, from rugged terrain to smooth pavement to the perils of rock and gravel. Create, save and download setup profiles through the Castle Link Programming Suite on your Windows™ PC, or wirelessly with the new B-Link™ Bluetooth™ Adapter and Castle Link app for Android or iOS. Additional tuning flexibility is available with on-the-fly adjustments from your transmitter via the Auxiliary wire. Simply connect the white signal wire to an open radio channel and enable the feature in Castle Link to select an Auxiliary function — such as Torque Control, Max Brake or Max Throttle. SmartSense™ mode uses the motor's sensors to start the motor and provide smooth starts, excellent torque and low-speed drivability. Once the motor is spinning, it seamlessly transitions to Castle's ultra-efficient sensorless mode.

• Mamba XLX2 ESC
• Input Voltage Range: 3S–8S LiPo (33.6V max)
• Sensorless, SmartSense™ and Brushed Running Modes
• Powerful Integrated 20A Peak Adjustable BEC (5.25V–8.0V)
• CRYO-DRIVE™ Technology minimises the amount of time the ESC's electrical components spend generating heat
• ESC housed in a rugged CNC aluminium case and potted in waterproof epoxy
• Premium forged heatsink with elliptical fins for superior airflow and increased heat dissipation
• Oversized factory-equipped thermally controlled 50mm cooling fan
• Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters
• Mounting holes located in the bottom of the aluminium case for affixing to your vehicle
• Proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty
• Waterproof design for all weather conditions
• Data logging capability to capture and record performance data from your vehicle
• Auxiliary wire functionality for on-the-fly adjustments using your transmitter
• Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cut-off
• Convenient transmitter programming for six common adjustable settings including cut-off voltage and drag brake
• Easily tune and update ESC with USB and Bluetooth™ programming options
• Optional smartphone-based programming with the B-LINK™ Bluetooth Adapter (sold separately); Castle Link available on Google Play or Apple App Store
• 2028 800Kv Sensored Brushless Motor
• 4-POLE 12-SLOT sensored design with exceptional efficiency and less heat
• Proprietary stator winding produces low internal resistance for a cooler running motor
• Dual sensor ports to ensure optimal installation in your large-scale vehicle
• Oversized NMB bearings and vibration dampening system ensure the longest possible bearing life
• High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions and high RPMs

• 1x Mamba XLX2 ESC
• 1x 2028-800Kv Sensored Brushless Motor
• 1x 300mm Direct Connect Sensor Wire
• 1x Mamba Decal Sheet
• 1x Motor connection wire, bullets and shrink
• 1x Mamba XLX2 Quick Start Guide
• 1x Sensor port dust cover

Do not use mounting screws that extend more than 5mm into the front of the motor. Using too long of a screw can result in damage to the motor's windings and will not be covered by the warranty. Your Castle ESC is warranted for one (1) year from date of purchase against manufacturing and component defects. This warranty does not cover damage caused by abuse, including incorrect wiring, over-voltage, overloading, improper gearing, improper motor selection, incorrect controller settings, insufficient batteries, or inadequate connectors. Drag and speed run setups are not covered by the warranty.
