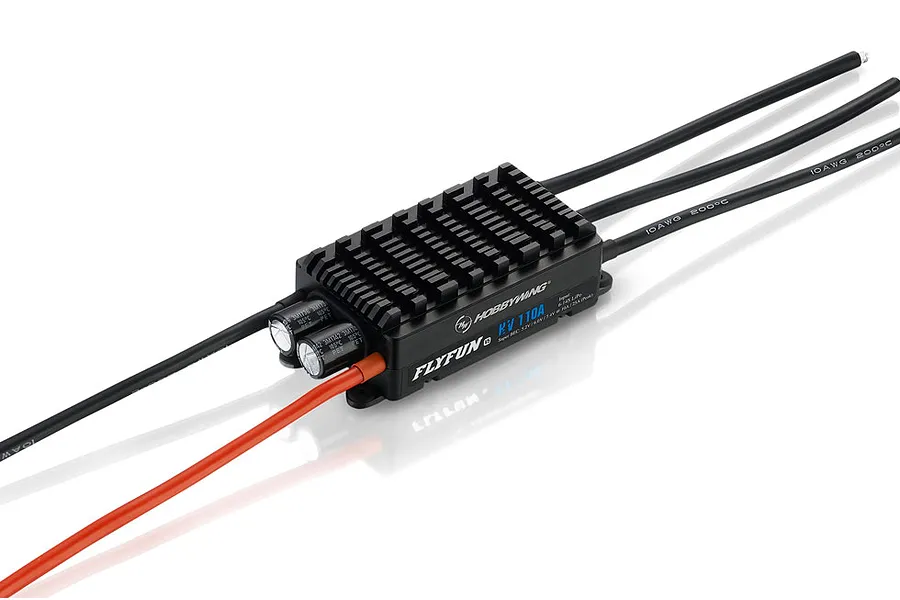

The FlyFun 110A V5 Series brushless ESC features DEO (Driving Efficiency Optimisation) technology with Active Freewheeling, providing rapider and smoother throttle response, higher driving efficiency, longer flight time, and lower ESC temperature. A high-power switch-mode BEC with continuous/peak current of 8A/20A and voltage adjustable among 5.2V, 6.0V and 7.4V allows users to power more electronic devices or devices with higher power such as servos, flight controllers, and on-board lighting. Multiple programmable parameters for different fixed-wing aircraft setups are adjustable via transmitter or Hobbywing LED program box. New design brings exquisite look and good heat-dissipating performance; imported components, a high-performance 32-bit microprocessor, and PCB with extremely low impedance guarantee great current endurance, excellent performance and high reliability.

Hobbywing FlyFun V5 ESC — product photo (verify: may be 40A unit, not 110A)

With 40A continuous current and bursts up to 140A for 10 seconds, 6-14S LiPo compatibility and a selectable 5.2V/6V/7.4V, 10A/25A current rating this is one of the most feature-rich ESC's on the market.

FlyFun V5 — DEO technology / active freewheeling diagram

The DEO technology (Driving Efficiency Optimisation) implemented in the ESC has multiple advantages: rapider and smoother throttle response, better stability and flexibility during flight.

FlyFun V5 — high-power BEC feature illustration

High-power switch-mode BEC with continuous/peak current of 8A/20A and voltage adjustable among 5.2V, 6.0V and 7.4V.

FlyFun V5 — multiple protections feature diagram

Multiple protection features include start-up, over-current, ESC thermal, capacitor thermal, overload, throttle signal loss (or Fail Safe), and abnormal input voltage.

FlyFun V5 — programmable parameters / wiring diagram

Multiple programmable parameters for setups of different fixed-wing aircraft are adjustable via transmitter or Hobbywing LED program box.

FlyFun V5 ESC — connector and wire detail (verify: 40A dimensions shown)

Input Wires: Red 14AWG-150mm, Black 14AWG-150mm. Output Wires: Blue 16AWG-150mm.

FlyFun V5 ESC — physical unit photo (verify: 40A unit, not 110A 92.7x45.6x27mm)

New design brings exquisite look and good heat-dissipating performance.

FlyFun V5 ESC — specifications overview graphic (verify: may show 40A specs)

The ESC is available in high-voltage/regular version with different Amps.

Hobbywing FlyFun 110A ESC product photo 1

New design brings exquisite look and good heat-dissipating performance.

Hobbywing FlyFun 110A ESC product photo 2

High-power switch-mode BEC with continuous/peak current of 8A/20A and voltage adjustable among 5.2V, 6.0V and 7.4V.

Hobbywing FlyFun 110A ESC feature illustration 1

DEO technology (Driving Efficiency Optimisation) provides rapider and smoother throttle response, better stability and flexibility during flight.

Hobbywing FlyFun 110A ESC feature illustration 2

Multiple protection features include start-up, over-current, ESC thermal, capacitor thermal, overload, and throttle signal loss.

Hobbywing FlyFun 110A ESC feature illustration 3

Multiple programmable parameters for setups of different fixed-wing aircraft are adjustable via transmitter or Hobbywing LED program box.

Hobbywing FlyFun 110A ESC product photo 3

Imported components, the high-performance 32-bit microprocessor, and the PCB with extremely low impedance guarantee great current endurance.

Hobbywing FlyFun 110A ESC product photo 4

The ESC is available in high-voltage/regular version with different Amps.

Hobbywing FlyFun 110A ESC feature illustration 4

Active Freewheeling technology provides superior throttle control, stability and flexibility.

• DEO Technology / Active Freewheeling — rapider and smoother throttle response, better stability and flexibility during flight
• Higher driving efficiency and longer flight time
• Lower ESC temperature for more reliable operation
• High-power switch-mode BEC — continuous/peak 8A/20A, voltage adjustable among 5.2V, 6.0V and 7.4V
• Start-up protection
• ESC thermal protection
• Over-current protection
• Over-load protection
• Capacitor thermal protection
• Throttle signal loss (Fail Safe) protection
• Abnormal input voltage protection
• Multiple programmable parameters adjustable via transmitter or Hobbywing LED program box
• High-performance 32-bit microprocessor
• PCB with extremely low impedance for great current endurance

• 1x FlyFun 110A V5 Series Brushless ESC

Brushless electric motors and ESCs have large amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large or heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain. Damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.
