Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

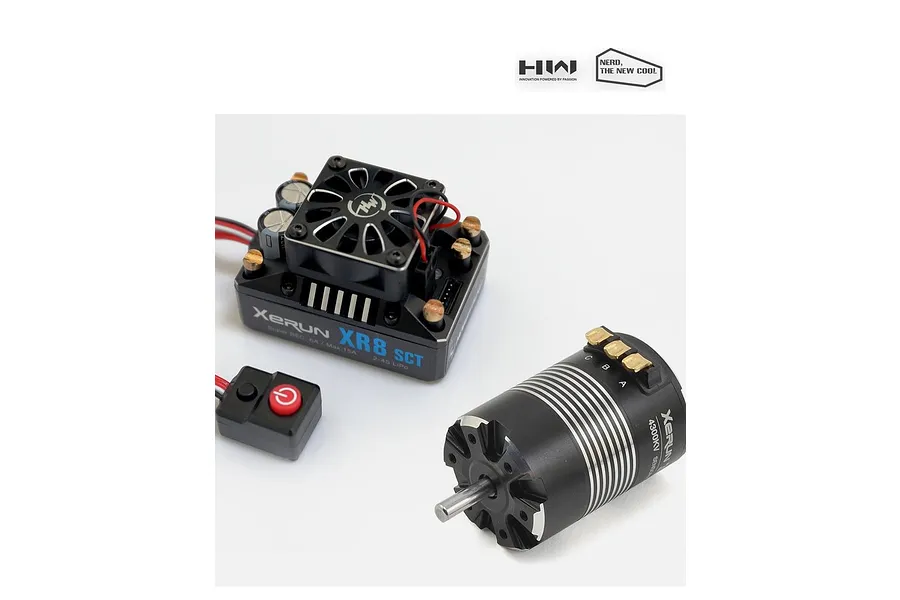

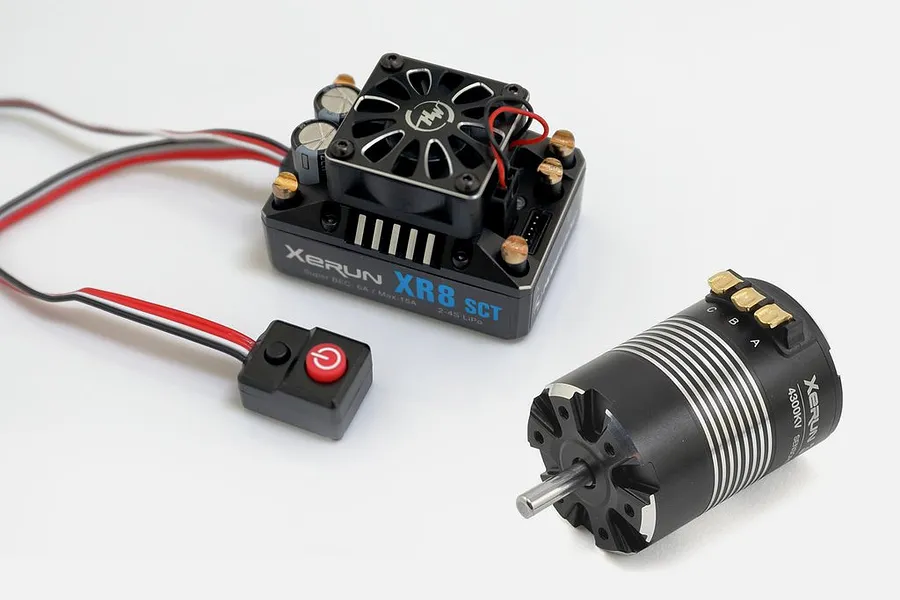

This combo features a high torque 5100Kv 3652SD brushless motor which fits a wide range of 1/10 & 1/8 4wd off-road RC vehicles like the Traxxas Slash, Stampede and HPI Bullet Trucks. Also included is a brushless ESC which makes it the perfect upgrade brushless kit for 1/10 4wd RC model. Even if you're looking for a powerful brushless combo for a scratch build or custom project, this combo is a fantastic option to get the most out of your 1/10 or 1/8 RC model.

Features

5100kV Xerun 3652SD G2 Competition Brushless Motor

• ROAR approved Innovative 4-pole-8-magnet "staggered pole" rotor (Hobbywing-patented) with low cogging effect and torque pulsation greatly improves control feel around corners

• Built-in chip for making the motor be easily identified by HOBBYWING ESCs. When pairing it with an HW sensored ESC (i.e. XR8 SCT/Plus), the motor can work in the “sensored” mode at all times with great output linearity after the identification. The Turbo timing is allowed to be activated for higher output

• Magnetic ring mounted on the rotor protects the motor from signal interference and guarantees its super stability in the “sensored” mode

• With the mechanical timing adjustable from 20 degrees to 40 degrees, users are able to have different output power

• Turbine design implemented by the rotor accelerates the internal air circulation and reduces heat

• Rebuildable design (partially rebuild-able) and a screw-less motor case for easy routine maintenance effectively prolong the motor life and raise the motor efficiency

• CNC machined aluminum housing, high purity copper windings, advanced rotor structure, high-quality alloy steel output shaft, high-precision bearings for high durability and smoothness

• New-style “U” solder tabs at the bottom of the motor for easy soldering and wiring

XR8 SCT ESC

• Next generation of Xerun SCT PRO ESC (HOBBYWING Best seller product)

• Super built-in BEC with the peak output current of up to 15A and switchable output voltage of 6V/7.2V

• Advanced electronic switch with the lifespan of over 50000 times of switching on & off

• High-efficiency heat-dissipating system

• Special dynamic timing control program is available when this ESC runs in full-sensored mode*

• Innovative coasting function (patent pending)

• ESC customization by a LCD program box (Purchase separately) or OTA programmer (Purchase separately)

Specifications

5100kV Xerun 3652SD G2 Competition Brushless Motor

• KV (no Load): 5100kv

• Pole: 4

• Lipo (V): 2S

• No Load Current (A): 4.7

• Resistance: 0.0035?

• Diametre: 36mm

• Length w/o Shaft: 56mm

• Shaft Diametre: 5mm

• Shaft Length: 15mm

• Weight: 192g

• Adjut. Timing: 20-40

XR8 SCT ESC

• Con./Peak Current: 140A/880A

• Main Applications: 1/8th Buggy Competition, 1/10th STC, Monster Truck, On-road, Buggy, Truggy for High-level Races

• Motor Limit: 2S LiPo ?6000kv (36XX size), 3S LiPo ?4000kv (36XX size), 4S LiPo ?3000kv (36XX size)

• LiPo/NiMH Cells: 2-4S LiPo, 6-12Cell NiMH

• BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)

• Cooling Fan: Powered by the stable BEC output voltage of 6V/7.2V

• Size/Weight: 54.1(L) x 37.2(W) x 36.1(H w/fan) / 90.5g (W/O Wires)

• Programming Port: FAN/PRG Port

• ESC programming: LCD Program box, OTA programmer

Included items

Description	QTY
XR8 SCT Pro ESC Black Edition	1
5100kV XERUN 3652SD G2 Competition Brushless Motor	1
Hobbying Decal	1
