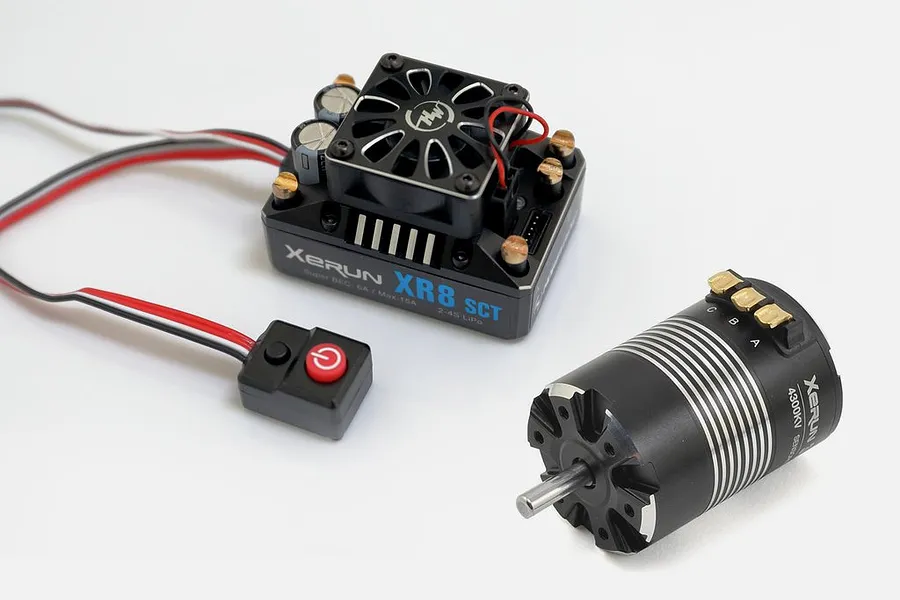

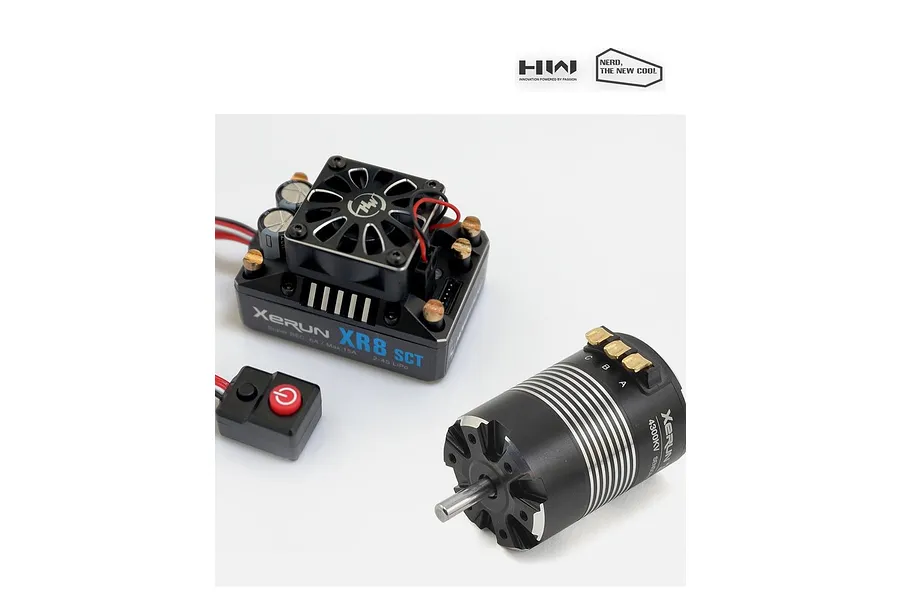

Hobbywing XeRun 3652 3100Kv G2 Sensored Brushless Motor & XR8-SCT 140A ESC Combo

  • Brushless

Part no. 38020420

DiscontinuedNo reviews yet
1 / 3
1 / 3

This product has been discontinued.

Contact us

No longer made. In stock now: similar

Overview

This combo features a 3100Kv 3652SD brushless motor which fits a wide range of 1/10 & 1/8 4WD off-road RC vehicles like the Traxxas Slash, Stampede and HPI Bullet Trucks. Also included is a brushless ESC which makes it the perfect upgrade brushless kit for 1/10 4WD RC models. Even if you're looking for a powerful brushless combo for a scratch build or custom project, this combo is a fantastic option to get the most out of your 1/10 or 1/8 RC model.

Note

Notice: Brushless electric motors & ESCs have huge amounts of torque at any given RPM. Using too-tall gearing, or a vehicle that is too large/heavy, can result in damage and/or product failure. Please consult your manual and select gearing suitable for the vehicle and terrain, as damage caused by overloading or abuse is unlikely to be covered by the manufacturer's warranty. Always monitor your ESC and motor temperatures closely after modifying your system to ensure they stay within the safe operating limits.

Features

  • 3100kV Xerun 3652SD G2 Competition Brushless Motor
  • ROAR approved. Innovative 4-pole-8-magnet "staggered pole" rotor (Hobbywing-patented) with low cogging effect and torque pulsation greatly improves control feel around corners
  • Built-in chip for making the motor be easily identified by HOBBYWING ESCs. When pairing it with an HW sensored ESC (i.e. XR8 SCT/Plus), the motor can work in the "sensored" mode at all times with great output linearity after the identification. The Turbo timing is allowed to be activated for higher output
  • Magnetic ring mounted on the rotor protects the motor from signal interference and guarantees its super stability in the "sensored" mode
  • With the mechanical timing adjustable from 20 degrees to 40 degrees, users are able to have different output power
  • Turbine design implemented by the rotor accelerates the internal air circulation and reduces heat
  • Rebuildable design (partially rebuild-able) and a screw-less motor case for easy routine maintenance effectively prolong the motor life and raise the motor efficiency
  • CNC machined aluminum housing, high purity copper windings, advanced rotor structure, high-quality alloy steel output shaft, high-precision bearings for high durability and smoothness
  • New-style "U" solder tabs at the bottom of the motor for easy soldering and wiring
  • XR8 SCT ESC
  • Next generation of Xerun SCT PRO ESC (HOBBYWING Best seller product)
  • Super built-in BEC with the peak output current of up to 15A and switchable output voltage of 6V/7.2V
  • Advanced electronic switch with the lifespan of over 50000 times of switching on & off
  • High-efficiency heat-dissipating system
  • Special dynamic timing control program is available when this ESC runs in full-sensored mode
  • Innovative coasting function (patent pending)
  • ESC customization by a LCD program box (purchase separately) or OTA programmer (purchase separately)

In the box

  • 1x XR8 SCT Pro ESC Black Edition
  • 1x 3100kV XERUN 3652SD G2 Competition Brushless Motor
  • 1x Hobbywing Decal

Specifications

Specification3100kV Xerun 3652SD G2 Competition Brushless Motor
KV (no load)3100kV
Poles4
LiPo (V)2–3S
No load current (A)2.9
Resistance0.0087Ω
Diameter36mm
Length w/o shaft56mm
Shaft diameter5mm
Shaft length15mm
Weight192g
Adjustable timing20–40°
SpecificationXR8 SCT ESC
Continuous/Peak current140A/880A
Main applications1/8th Buggy Competition, 1/10th STC, Monster Truck, On-road, Buggy, Truggy for high-level races
Motor limit2S LiPo ≤6000kV (36XX size), 3S LiPo ≤4000kV (36XX size), 4S LiPo ≤3000kV (36XX size)
LiPo/NiMH cells2–4S LiPo, 6–12 Cell NiMH
BEC output6V/7.2V switchable, continuous current of 6A (switch-mode BEC)
Cooling fanpowered by the stable BEC output voltage of 6V/7.2V
Size/weight54.1(L) x 37.2(W) x 36.1(H w/fan) mm / 90.5g (w/o wires)
Programming portFAN/PRG port
ESC programmingLCD program box, OTA programmer

Motor

TypeBrushless
KVRPM (Revolutions Per Minute) per Volt3100KV
LengthLength of the motor can in mm56mm
DiameterDiameter of the motor can36mm
Shaft Diameter5mm

ESC (Electronic Speed Controller)

Continuous Amps180A
LVCLow Voltage Cut-Off. Required for Lithium batteries.Yes
ProgrammableYes
Cooling MethodFan
BEC Voltage6V
Dual MotorNo
