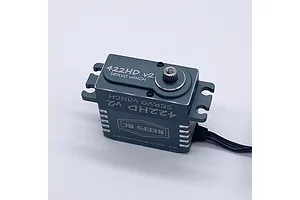

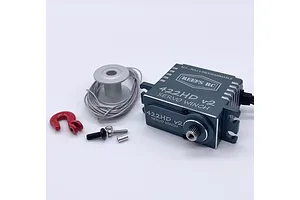

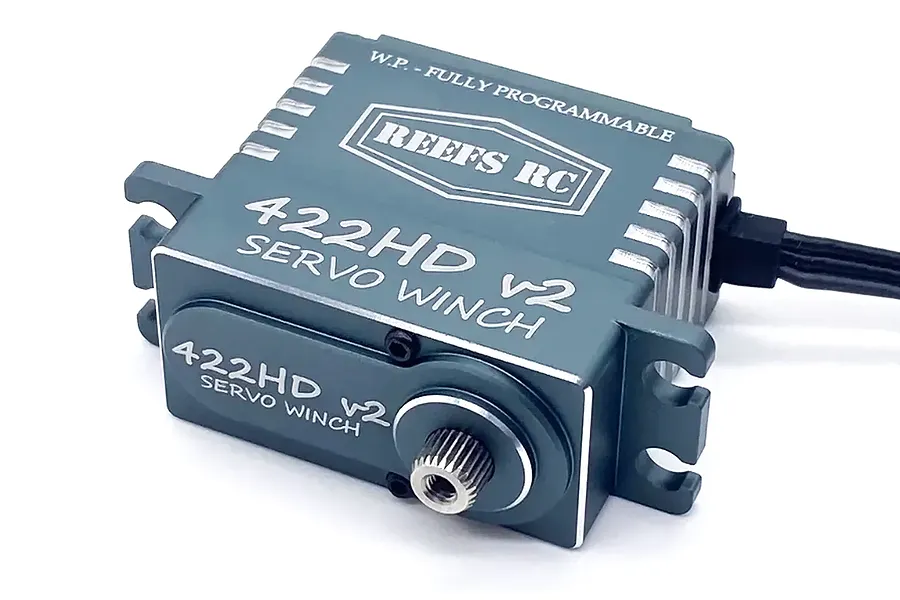

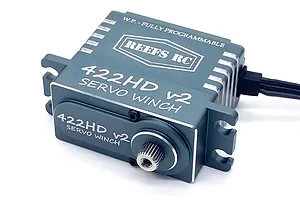

Reefs RC Aluminium 422HDv2 Standard 35kg 8.4V Coreless Metal Gear Winch Servo with Spool - Black

Name: Hobbies Direct
Address: Unit 5 80-84 Tucker St, Breakwater, VIC, 3219, AU
Telephone: +61352921101
Price range: $$$

Brand: Reefs RC | SKU: REEFS43

2 in stock

write a review

$228.29

Pay later with

Description

No description

Specifications

Servo

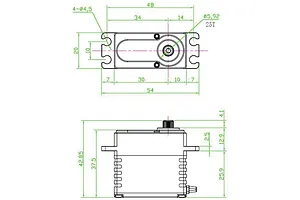

Height (A): 43mm
Body Length (B): 40.05mm
Bottom to Under Mount (C): 25.58mm
Top to Under Mount (D): 16.25mm
Length (E): 54.12mm
Width (F): 20.44mm
Size Conventionally sized servo names: Standard
Gear Material: Steel
Waterproof Casing: Yes
Servo Spline Count: 25Tooth
Input Voltage Range: 6V, 7.4V, 8.4V
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 29
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.11
7.4V Torque kg/cm: 32
7.4V Sec/60 Degrees: 0.10
8.4V Torque kg/cm: 35
8.4V Sec/60 Degrees: 0.09
Signal Type: Digital
Drive Motor Type: Coreless
Case Material: Aluminium
Rotational Degrees: 360°

Reviews

Be the first to write a review for this product.
