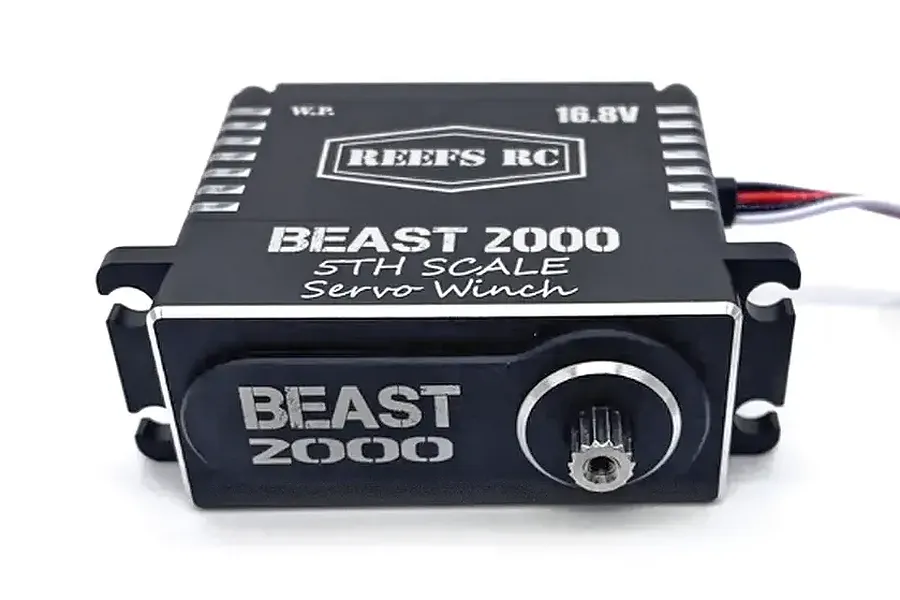

Reefs RC Aluminium BEAST 2000 1/5 Scale 144kg 16.8V Direct Power Brushless Metal Gear Winch Servo with Spool - Black

  • 1/5
  • Brushless

Part no. REEFS117

2 in stockNo reviews yet
1 / 4
1 / 4

Now $575.99was $639.99 You Save $64.00

Sale now on

or 4 fortnightly payments of $144.00 with afterpay or PayPal, or zip

REEFS RC Beast 2000 1/5 Scale RC Servo Winch: Ultimate torque, speed, and waterproof performance.

  • Exceptional torque and speed for high-performance applications
  • Submarine waterproof with 7-point seals
  • Magnetic angle sensor for precise control
  • Durable steel gears and CNC aluminium casing
  • Suitable for 1/5 scale RC vehicles

Overview

The REEFS Beast 2000 1/5 Scale Servo Winch is designed for RC enthusiasts who demand the highest level of performance and reliability. This servo winch offers unparalleled torque and speed, making it perfect for the most challenging applications. With a voltage range of 7.4V to 16.8V, it provides consistent power and performance under various conditions.

Built to last, the Beast 2000 features steel gears and a CNC aluminium casing, ensuring it can withstand the toughest environments. The submarine waterproof design with 7-point seals offers excellent protection against water and dust, making it ideal for all-terrain adventures. The magnetic angle sensor and pulse width modulation control provide precise and responsive control, enhancing the overall driving experience. Whether you're a seasoned RC hobbyist or a newcomer, the REEFS Beast 2000 is a powerful and reliable addition to your RC setup.

Note

BEC is not required but recommended for maximum performance.

Consult the manual for waterproof standards and maintenance.

Features

  • High torque and speed brushless servo winch
  • Includes REEFS spool, 5th scale hook, synthetic line, and 3S & 4S connector
  • Submarine waterproof with 7-point seals
  • Magnetic angle sensor for precise control
  • Pulse width modulation control
  • Voltage range: 7.4V - 16.8V
  • No mechanical angle limit
  • Steel gears and CNC aluminium casing
  • 5 ball bearings for smooth operation
  • 22AWG wires
  • Genuine REEFS product

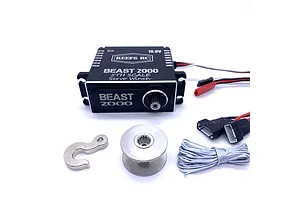

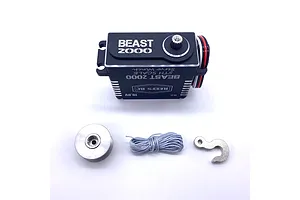

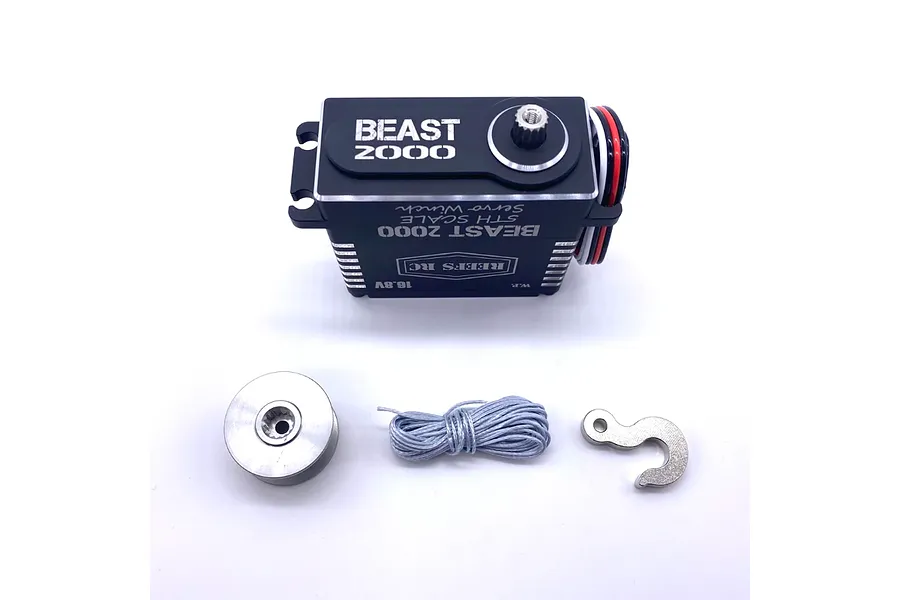

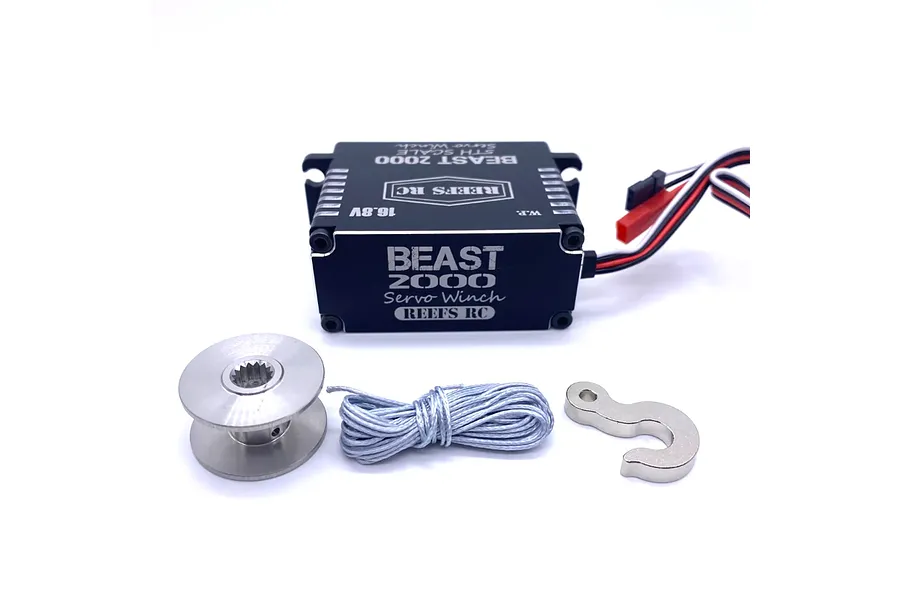

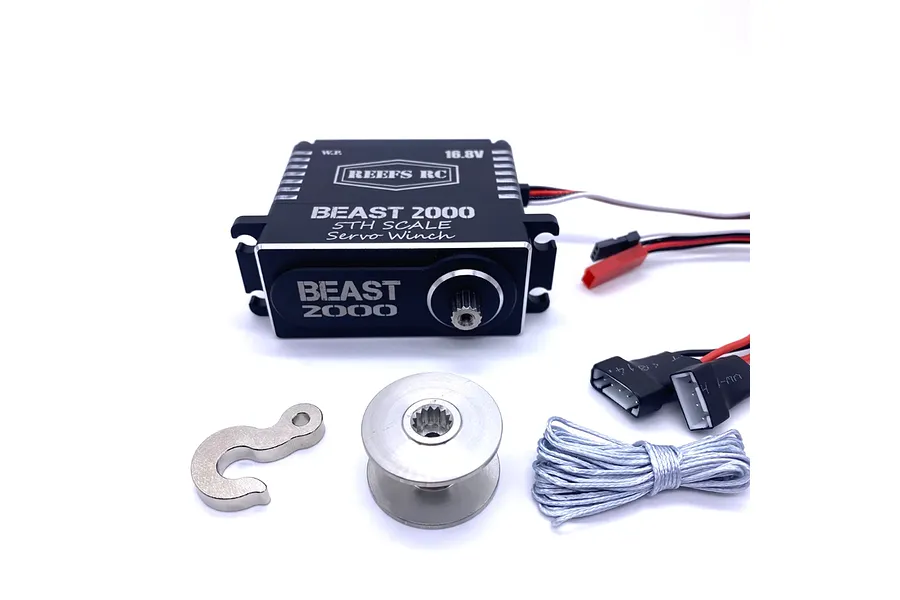

In the box

  • 1x BEAST 2000 Servo Winch
  • 1x REEFS Spool
  • 1x REEFS 5th Scale Hook
  • 1x Synthetic Line
  • 1x 3S & 4S Connector

Specifications

Torque(10.0V)72.0 kg-cm (1000 oz-in)
Torque(11.1V)90.0 kg-cm (1250 oz-in)
Torque(12.0V)104.4 kg-cm (1450 oz-in)
Torque(16.8V)144.0 kg-cm (2000 oz-in)
Speed0.11 sec (10.0V), 0.105 sec (11.1V), 0.10 sec (12.0V), 0.09 sec (14.4V), 0.08 sec (16.0V)
Operating Voltage7.4V - 16.8V
Weight285g (10oz)
Bearing Type5 Ball Bearings
Motor TypeBrushless Motor
Gear TypeSteel Gears
Size65.8x30x59mm (2.59x1.18x2.32inches)

Servo

SizeConventionally sized servo names1/5
Gear MaterialSteel
Servo Spline Count15Tooth
Waterproof CasingYes
Input Voltage Range10V, 11V, 12V, 16.8V
Case MaterialAluminium
Drive Motor TypeBrushless
Rotational Degrees120° (Normal)
11V Torque kg/cm90
11V Sec/60 Degrees0.105
12V Torque kg/cm104
12V Sec/60 Degrees0.10
Signal TypeDigital
