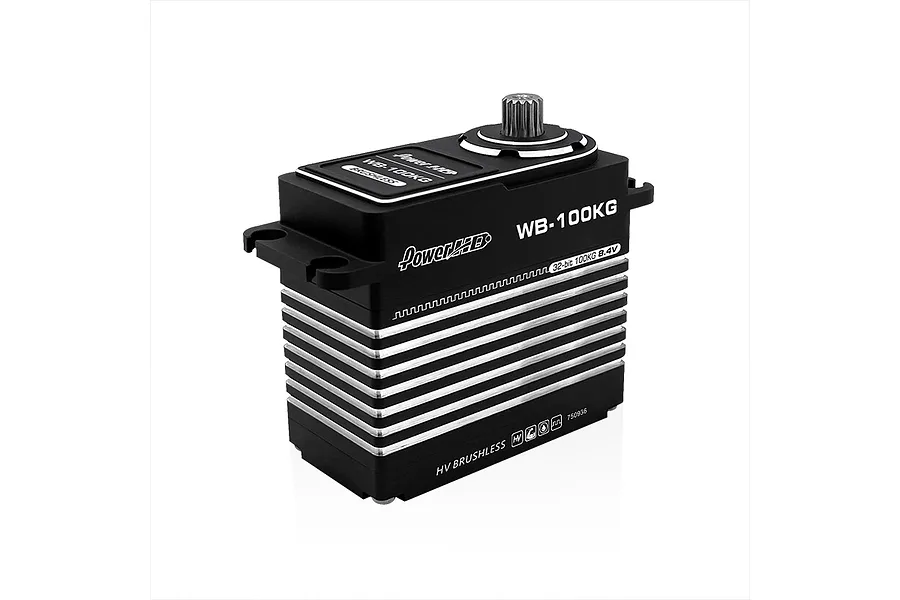

Power HD Aluminium WB-100KG 1/5 100kg 8.4V Brushless Steel Geared Servo - Black
Power HD Aluminium WB-100KG 1/5 100kg 8.4V Brushless Steel Geared Servo - Black
Power HD WB-100KG 1/5 Scale Servo, The Ultimate Power Upgrade With A Massive 100kg Of Torque For The Biggest RC Trucks And Buggies
Massive 100kg Of Steering Torque
Designed For 1/5 Scale Vehicles
Full Steel Gear Drivetrain For Strength
Brushless Motor For Power And Reliability
High Voltage (HV) Compatible Up To 8.4V
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Unleash the ultimate steering power in your 1/5 scale vehicle with the Power HD WB-100KG Brushless Servo. This absolute monster is built for one purpose: to deliver the immense torque needed to control the biggest and heaviest RC cars and trucks on the market. With a staggering 100kg-cm of torque on tap, this servo has the muscle to turn massive wheels with authority, giving you precise control where other servos would fail.
The WB-100KG is engineered for durability and performance. It features a powerful and efficient brushless motor, a super-strong, full steel gear train, and a full aluminium case for maximum strength and heat dissipation. Despite its incredible power, it's also impressively fast, with a transit speed of just 0.08 seconds. If you're looking for the definitive servo upgrade for your 1/5 scale beast, the WB-100KG is built to handle the punishment.
Massive 100kg-cm of torque for the ultimate steering power
Specifically designed for demanding 1/5 scale vehicles
Blistering 0.08 sec transit speed for a fast and responsive feel
Powerful and efficient brushless motor for reliable performance

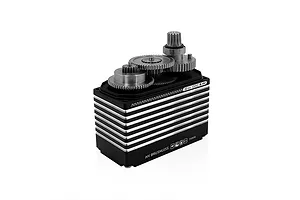

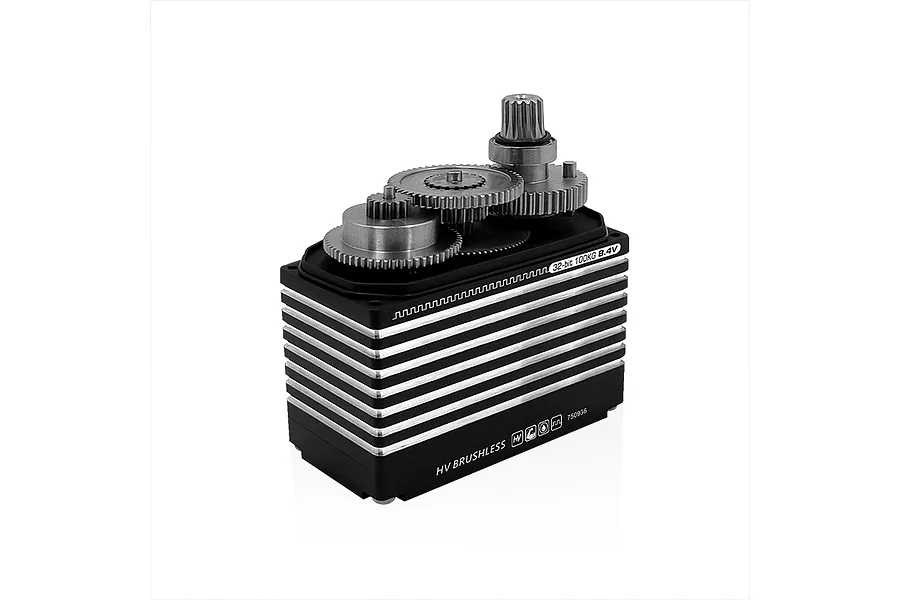

Super-durable, full steel gear train for maximum strength
Full aluminium case provides strength and heat dissipation
High Voltage (HV) compatible up to 8.4V
Genuine Power HD Product
Torque(6.0V): 65.0 kg-cm (902.7 oz-in)
Torque(7.4V): 80.0 kg-cm (1111.0 oz-in)
Torque(8.4V): 100.0 kg-cm (1388.7 oz-in)
Speed: 0.12 sec (6.0V)
Speed: 0.10 sec (7.4V)
Speed: 0.08 sec (8.4V)
Operating Voltage: 6.0V - 8.4V
Weight: 208 g (7.34 oz)
Horn Gear Spline: 15T
Motor Type: Brushless Motor
Gear Type: Hardened Steel
Operating Temperature: -10℃~60℃
Refresh Rate: 333Hz
1x Power HD WB-100KG 1/5 Scale Brushless Servo
1x Servo Horn Set
-
Height (A)
- 62.4mm
-
Body Length (B)
- 59.5mm
-
Bottom to Under Mount (C)
- 41mm
-
Top to Under Mount (D)
- 13.4mm
-
Length (E)
- 75.4mm
-
Width (F)
- 29.5mm
-
SizeConventionally sized servo names
- 1/5
-
Gear Material
- Steel
-
Waterproof Casing
- Yes
-
Servo Spline Count
- 15Tooth
-
Input Voltage Range
- 7.4V, 8.4V, 6V
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 65
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.12
-
7.4V Torque kg/cm
- 80
-
7.4V Sec/60 Degrees
- 0.10
-
8.4V Torque kg/cm
- 100
-
8.4V Sec/60 Degrees
- 0.08
-
Signal Type
- Digital
-
Drive Motor Type
- Brushless
-
Case Material
- Aluminium
-
Rotational Degrees
- 180°
