Power HD

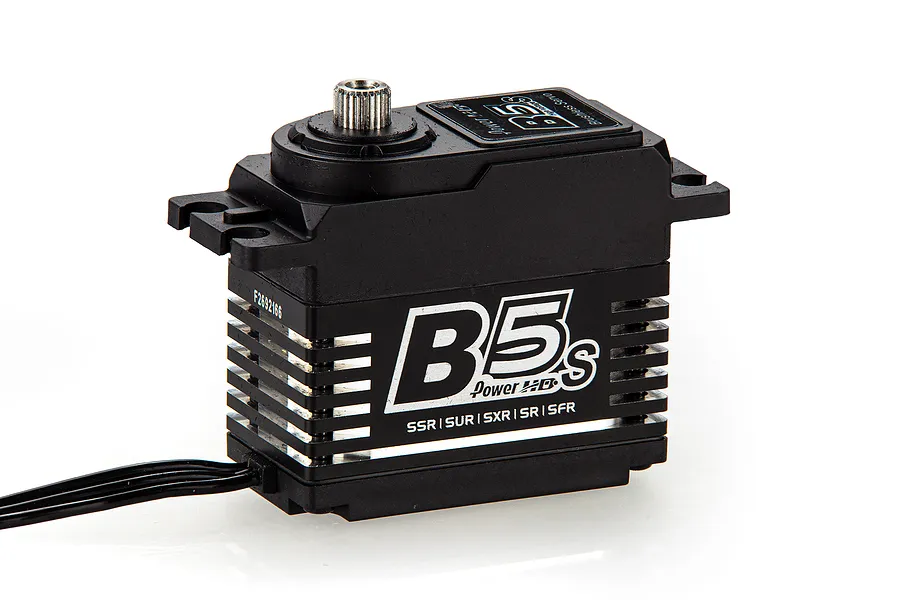

Power HD Black Aluminium B5S Standard 20kg 8.4V HV Waterproof Brushless Metal Geared Servo

  • Brushless

Part no. B5S

2 in stockNo reviews yet

$144.99

or 4 fortnightly payments of $36.25 with afterpay or PayPal, or zip

Specifications

Servo

Servo
SizeConventionally sized servo namesStandard
Gear MaterialTitanium & Steel
Servo Spline Count25Tooth
Waterproof CasingSplash Proof
Input Voltage Range6V, 7.4V, 8.4V
Case MaterialAluminium
Height (A)43.6mm
Body Length (B)41mm
Bottom to Under Mount (C)28mm
Top to Under Mount (D)10.3mm
Length (E)55.2mm
Width (F)20.5mm
Drive Motor TypeBrushless
Rotational Degrees120° (Normal)
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline16
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.065
7.4V Torque kg/cm18
7.4V Sec/60 Degrees0.055
8.4V Torque kg/cm20
8.4V Sec/60 Degrees0.05
Signal TypeDigital
