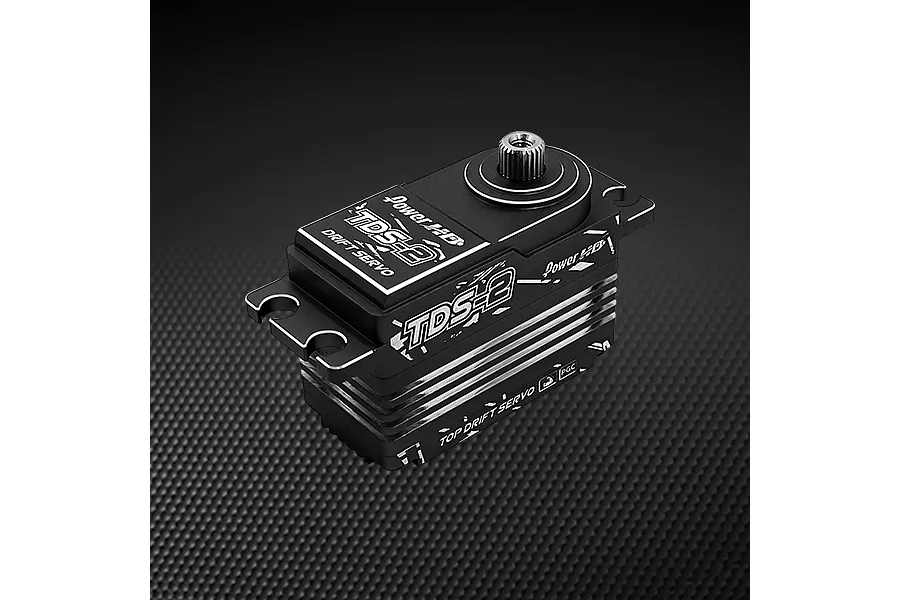

Power HD Aluminium TDS-2 Low Profile 8.4V 25kg Coreless Metal Geared Servo - Black

Part no. TDS-2-BK

Sold outWrite a review

$139.99

or 4 fortnightly payments of $35.00 with afterpay

Power HD Aluminium TDS-2 servo is a high-torque, coreless servo for 1/10 scale RC crawlers, buggies & trucks.

  • Strong, eye catching aluminium finish
  • 6-8.4V capability
  • Lightning quick times

In stock now: similar

Overview

Please Note

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

The Power HD TDS-2 is a high-performance, low-profile servo designed for demanding applications.
With its coreless motor, titanium and steel gears, and dual ball bearings, this servo delivers exceptional speed and torque. It's ideal for 1/10 scale crawlers, buggies, and trucks where precision and responsiveness are crucial.

Features

  • High torque: 25kg-cm (347 oz-in) at 8.4V
  • Fast speed: 0.09 sec at 8.4V
  • Coreless motor for smooth and efficient operation
  • Durable titanium and steel gears
  • Dual ball bearings for precise movement
  • Low-profile design for easy installation in tight spaces
  • Compatible with program box for custom settings
  • Genuine Power HD Product

In the box

  • 1x Power HD Aluminium TDS-2 8.4V 25kg Coreless Metal Geared Servo

Specifications

Torque(6.0V)18.0 kg-cm (250.0 oz-in)
Torque(7.4V)22.0 kg-cm (305.5 oz-in)
Torque(8.4V)25.0 kg-cm (347.2 oz-in)
Speed0.13 sec (6.0V) | 0.10 sec (7.4V) | 0.09 sec (8.4V)
Weight61 g (2.15 oz)
Operating Voltage6.0V - 8.4V
Bearing TypeBall Bearing x 2
Motor TypeCoreless
Operating Temperature-20℃~60℃
Refresh Rate333Hz

Servo

Servo
SizeConventionally sized servo namesStandard
Gear MaterialTitanium & Steel
Servo Spline Count25Tooth
Waterproof CasingSplash Proof
Input Voltage Range6V, 7.4V, 8.4V
Case MaterialAluminium
Height (A)34mm
Body Length (B)41mm
Bottom to Under Mount (C)19.7mm
Top to Under Mount (D)14.3mm
Length (E)54.4mm
Width (F)20mm
Drive Motor TypeCoreless
Rotational Degrees120° (Normal)
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline18
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.13
7.4V Torque kg/cm22
7.4V Sec/60 Degrees0.10
8.4V Torque kg/cm25
8.4V Sec/60 Degrees0.09
Signal TypeDigital
