Power HD Silver Aluminium D12 Low Profile HV Coreless 12.5kg 7.4v Metal Geared Servo
Power HD Silver Aluminium D12 Low Profile HV Coreless 12.5kg 7.4v Metal Geared Servo
Power HD D12 low-profile reverse-wire coreless servo for touring and drift cars — 12.5kg-cm at 7.4V, 55g, SSR mode.
- Low-profile reverse-wire design for neat wiring in touring and drift car chassis
- 12.5kg-cm torque at 7.4V with 0.059s speed
- Full CNC machined aluminium case with coreless motor
- Supports SSR and SUR super high speed mode
- Only 55g — lightweight at 41.0 x 20.0 x 26.3mm

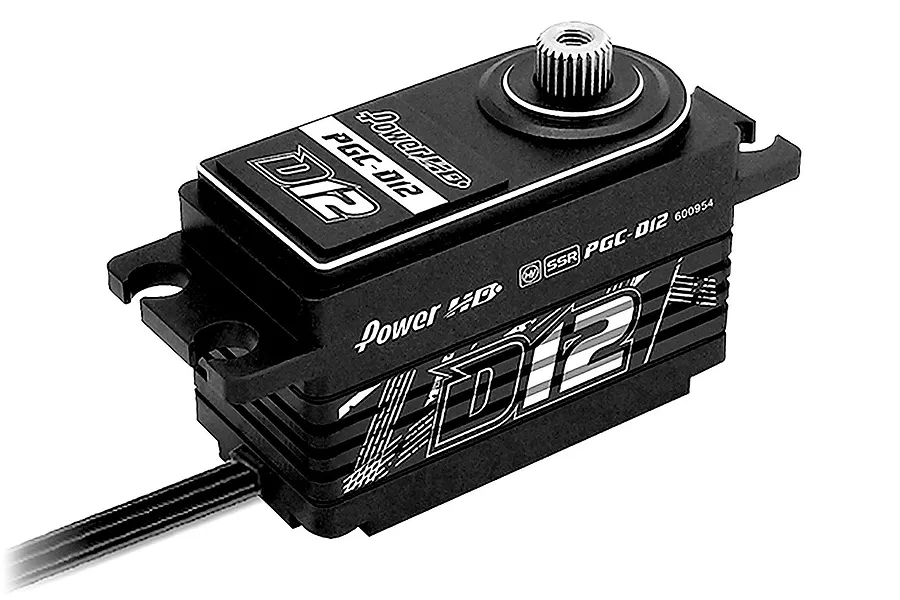

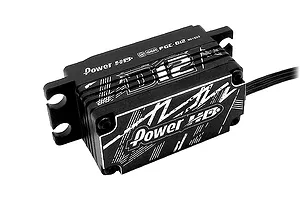

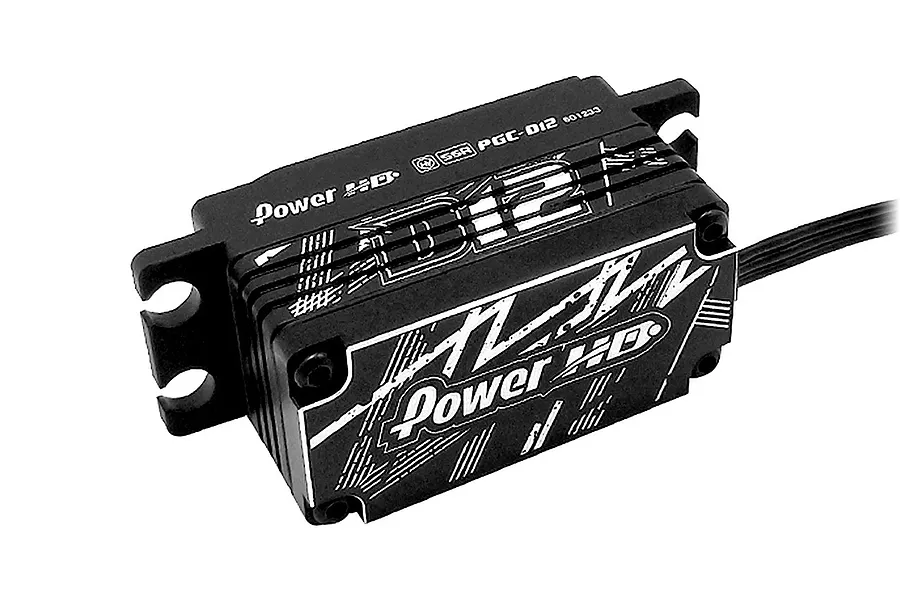

The Power HD D12 is a reverse receiver wire low-profile servo designed specifically for touring cars and drift cars. With the receiver wire leaving the case on the opposite side of the output gear — on the inside of the chassis in most cases — wiring is much neater compared to standard servos. It features an all-aluminium CNC machined case with a distinctive laser pattern, durable titanium and steel gears, a powerful coreless motor, and pulls up to 12.5kg-cm of torque at a speed of 0.059s, weighing only 55g. It supports SSR mode and is available in two-toned anodised Silver, Red and Gold colours.
- Full CNC Machined metal high-grade oxygen shell

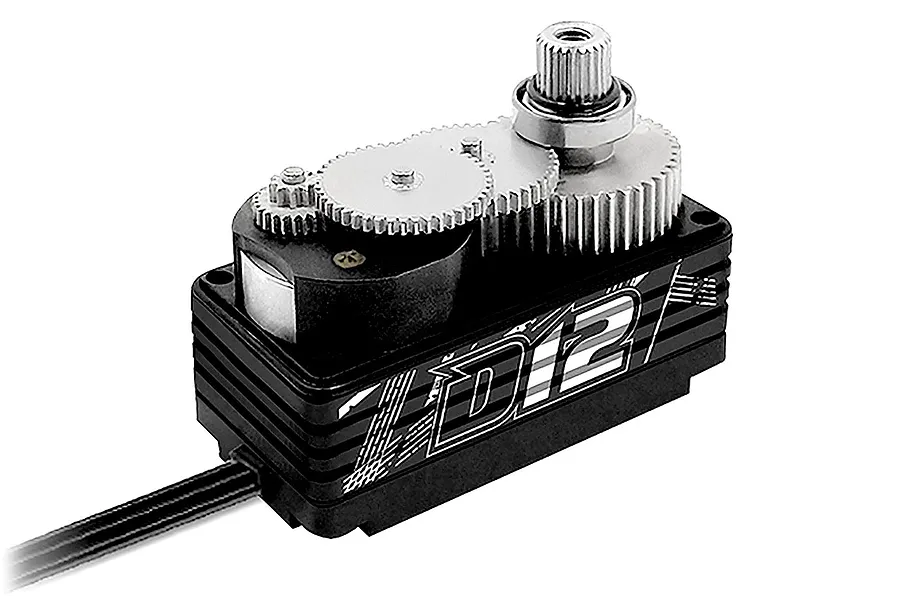

- 7075+303 Titanium & Steel gearing
- Japan NOBLE potentiometer
- High pressure coreless
- Compatible with 6.0–7.4v voltage
- Upgraded PCB, support SSR, SUR super high speed mode
- Available in two-toned anodised Silver, Red & Gold colours

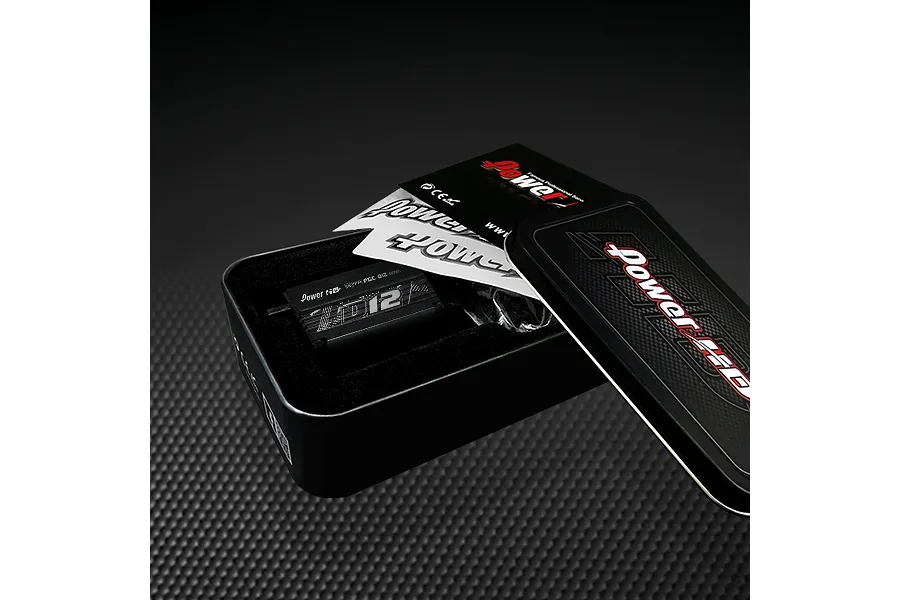

- 1x Silver Storm D12 Low Profile Coreless 12.5kg 7.4v Metal Geared Servo
- 1x Hardware Set
- 1x Decal Sheet
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
-
Torque (6.0V)
- 9.5 kg-cm (131.9 oz/in)
-
Torque (7.4V)
- 12.5 kg-cm (173.6 oz/in)
-
Speed
- 0.068 sec (6.0V) / 0.059 sec (7.4V)
-
Operating Voltage
- 6.0 ~ 7.4 DC Volts
-
Weight
- 55.0 g (1.94 oz)
-
Bearing Type
- Ball Bearing x 2
-
Motor Type
- Coreless Motor
-
Gear Type
- Titanium & Steel
-
Operating Temperature
- -20°C ~ 60°C
-
Working Frequency
- 1520µs / 333hz
-
Size
- 41.0 x 20.0 x 26.3 mm (1.61 x 0.79 x 1.04 in)
-
Total Height (A)
- 32mm
-
Body Width (B)
- 41mm
-
Below Mount (C)
- 16.9mm
-
Above Mount (D)
- 15.1mm
-
Total Length (E)
- 54.4mm
-
Total Width (F)
- 20mm
-
Height (A)
- 32mm
-
Body Length (B)
- 41mm
-
Bottom to Under Mount (C)
- 16.9mm
-
Top to Under Mount (D)
- 15.1mm
-
Length (E)
- 54.5mm
-
Width (F)
- 20mm
-
SizeConventionally sized servo names
- Low Profile
-
Gear Material
- Titanium & Steel
-
Waterproof Casing
- No
-
Servo Spline Count
- 25Tooth
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 12.5
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.068
-
Signal Type
- Digital
-
Drive Motor Type
- Coreless
-
Case Material
- Aluminium
-
Rotational Degrees
- 120° (Normal)
