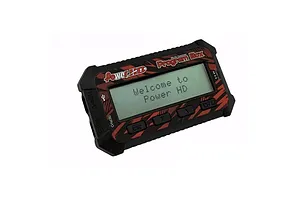

Power HD Multifunction LCD Servo Program Box

0 reviews

$70.42

Description

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

The Power HD S range has been specially designed for the high demands required in all classes of racing including 1/10 & 1/8th off road. The latest technology allows these new servo's to operate in SSR mode (Super Speed Response) allowing a natural feel and instant feedback on track. The new design has more accurately machined gears than ever before, offering more precision and reliability to meet the ever increasing demands of the competition racing market.

Features

Low Profile
Full CNC Machined metal high-grade oxygen shell

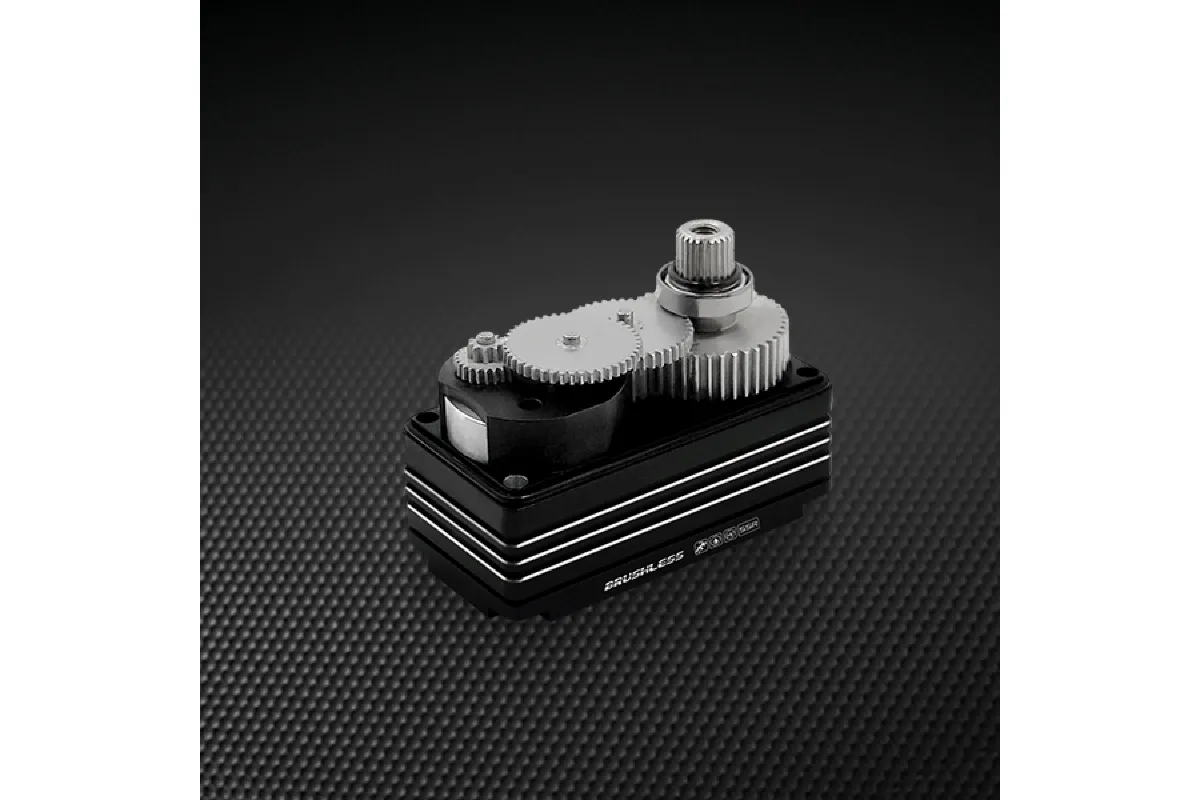

7075+303 Titanium & Steel gearing
Japan NOBLE potentiometer
High pressure brushless
compatible with 6.0-8.4v voltage
Upgraded PCB, support SSR, SUR super high speed mode

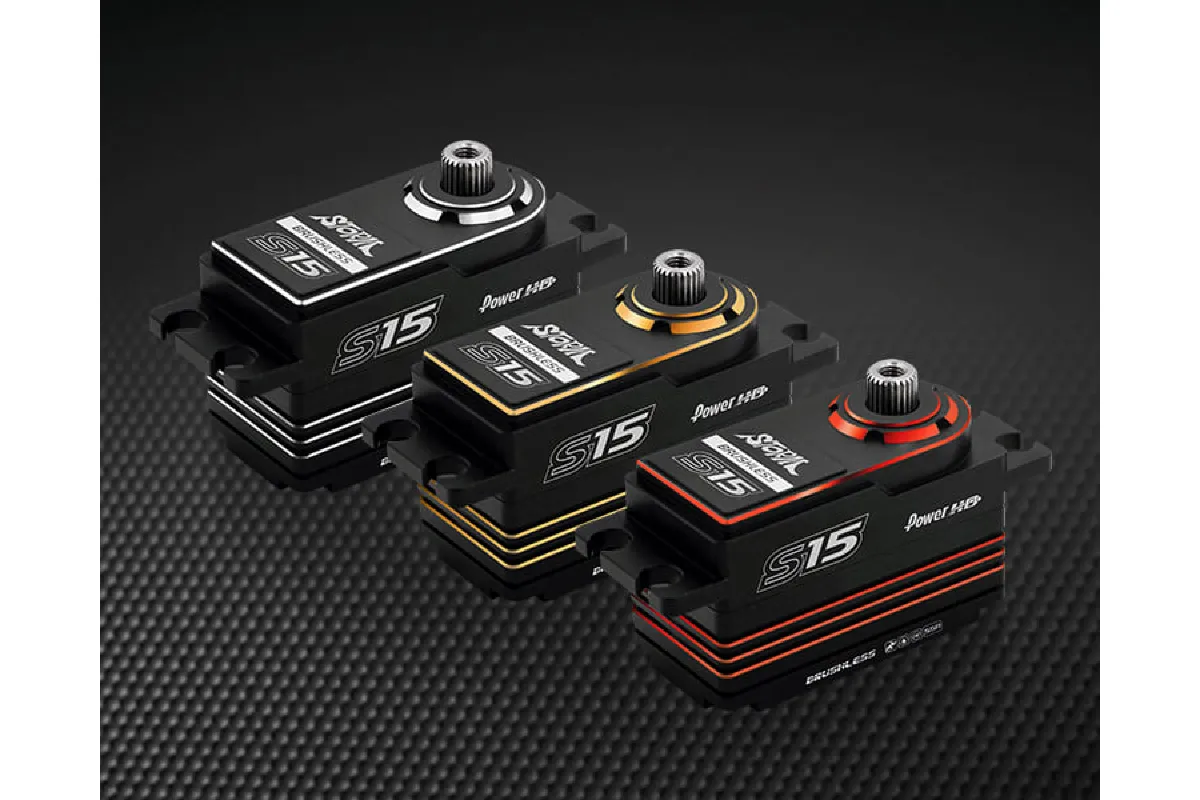

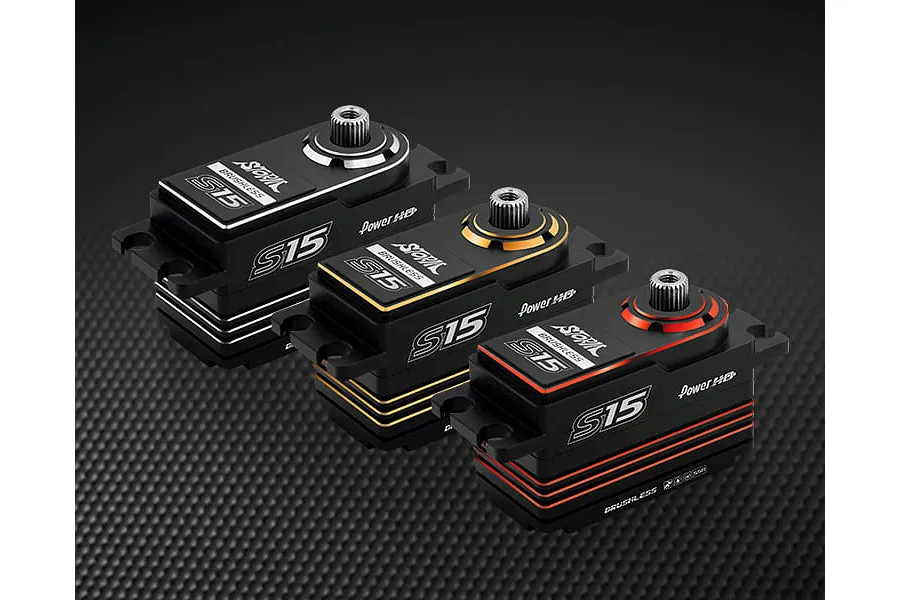

Available in two-toned anodised Silver, Red & Gold colours

Specifications

Torque(6.0V): 11.5 kg-cm (159.7 oz/in)
Torque(7.4V): 15.0 kg-cm (208.3 oz/in)
Torque(8.4V): 16.5 kg-cm (229.1 oz/in)
Speed: 0.072 sec (6.0V) ? 0.060 sec (7.4V) | Speed: 0.050 sec (8.4V)
Operating Voltage?6.0 ~ 8.4 DC Volts
Weight: 52.0 g (1.83 oz)
Bearing Type?Ball Bearing x 2
Motor Type?Brushless Motor
Gear Type?Titanium & Steel
Operating Temperature: -20?~60?
Working frequency?1520?s / 333hz
Size?41.0 x 20.0 x 26.0 mm ( 1.61 x 0.79 x 1.02 in)

Learn how to install a steering servo correctly to increase steering performance, and avoid stripping your servo gears out.

Power HD Brushless Servo Specifications

Total Height (A) = 32mm
Body Width (B) = 41mm
Below Mount (C) = 16.7mm
Above Mount (D) = 15.3mm
Total Length (E) = 54.4mm
Total Width (F) = 20mm

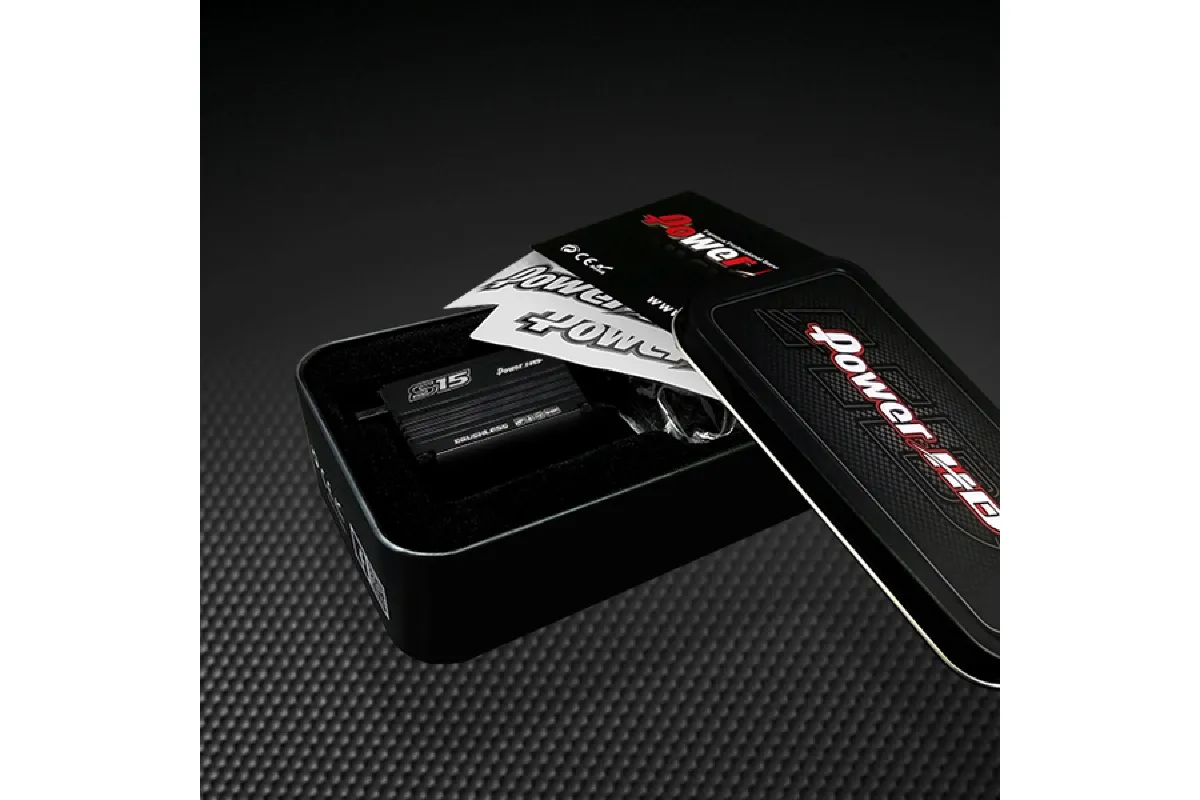

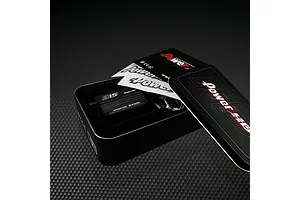

Included items

Description	QTY
Red Storm S15 Low Profile Brushless 16.5kg 8.4v Metal Geared Servo	1
Hardware Set	1
Decal Sheet	1

Specifications

Servo

Servo Spline Count: 25Tooth
Total Length: 54.4mm
Total Width: 20mm
Bottom to Under Mount: 16.5mm
Top to Under Mount: 15.3mm
Total Height: 23mm
Body Length: 41mm
Rotational Degrees: 120° (Normal)
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.072
Signal Type: Digital
Case Material: Aluminium
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 16.5
Gear Material: Titanium & Steel
Waterproof Casing: No
Drive Motor Type: Brushless
Size Conventionally sized servo names: Low Profile
