Power HD Red/Black B7-RS Revolution Low-Profile 13kg 7.4V HV Brushless Metal Geared Servo
Videos
Power HD Red/Black B7-RS Revolution Low-Profile 13kg 7.4V HV Brushless Metal Geared Servo
Brand:
Power HD
|
MPN: B7-RS
$147.40
or 4 fortnightly payments of $36.85 with
Power HD B7-RS low-profile HV brushless servo — 13kg torque at 7.4V, titanium/steel gears, only 48g.
- 13kg-cm torque at 7.4V HV
- Ultra-fast 0.055 sec/60° response
- Titanium & steel gears for durability
- Low-profile aluminium case — 48g
- SANWA SSR Mode compatible
Pay later with
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Recommended Products
Description
Weighing only 48g, the low-profile B7-RS has improved precision and speed over similar servos. The titanium and steel gears deliver great torque while keeping weight to a minimum.
Servos are powered by the ESC's output to the receiver. If you are using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience brown-outs where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver to smooth current delivery. In some cases, an external BEC may also be required.
Features
- 0.055 sec/60° @ 7.4V
- Aluminium case
- Low-profile and light-weight
- Titanium & steel gears
- 2 x metal ball bearings
- Compatible with SANWA SSR Mode

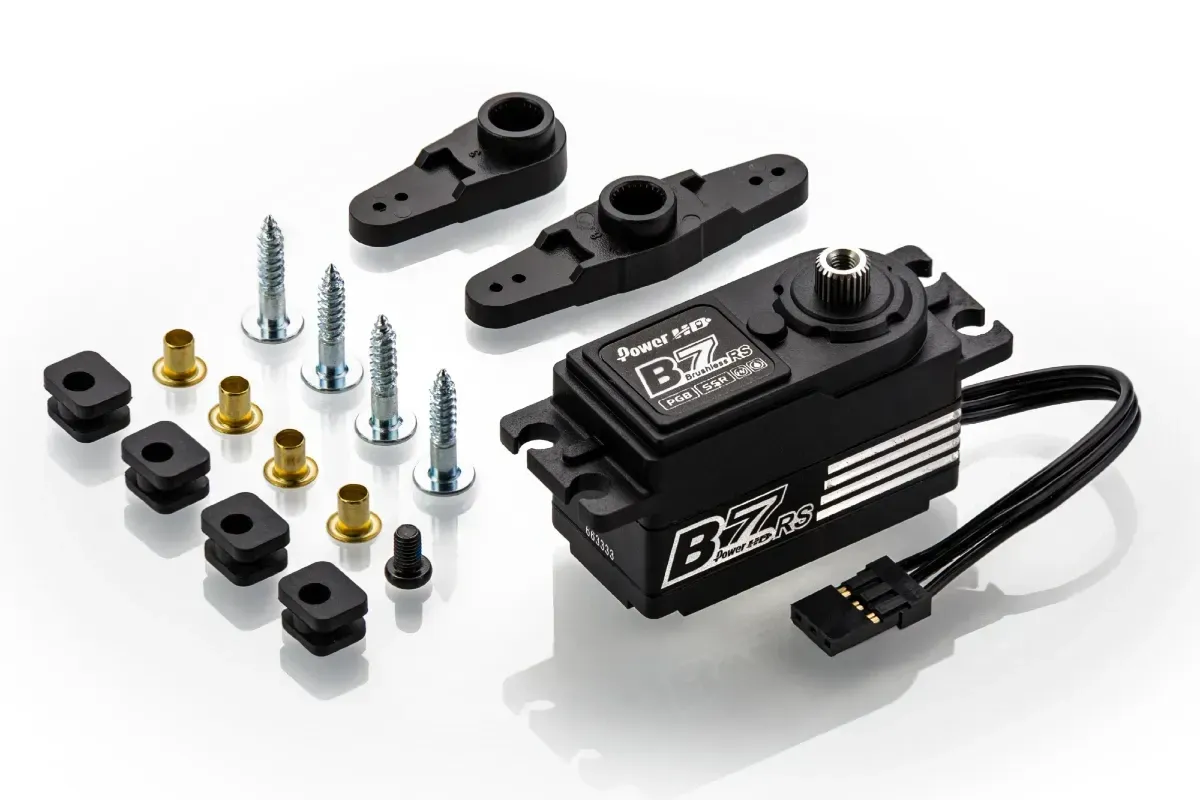

Included Items
- 1x B7-RS Low-Profile 13kg 7.4V HV Servo
- 1x Hardware Set
Videos
Specifications
-
Torque (6.0V)
- 10kg-cm (138.8 oz/in)
-
Torque (7.4V)
- 13kg-cm (180.5 oz/in)
-
Speed
- 0.65 sec (6V) / 0.55 sec (7V)
-
Operating Voltage
- 6–8.4V
-
Weight
- 48g (1.69oz)
-
Bearing Type
- 2 x Ball
-
Gear Type
- Titanium & Steel
-
Operating Temperature
- -20°C ~ 60°C
-
Working Frequency
- 1520µs / 333Hz
-
Size
- 41.0 x 20.0 x 26.4 mm (1.61 x 0.79 x 1.04 in)
-
Total Height (A)
- 31.2mm
-
Body Width (B)
- 41.2mm
-
Below Mount (C)
- 16.8mm
-
Above Mount (D)
- 9.59mm
-
Total Length (E)
- 54.8mm
-
Total Width (F)
- 20mm
Servo
-
Height (A)
- 31.2mm
-
Body Length (B)
- 41.2mm
-
Bottom to Under Mount (C)
- 16.8mm
-
Top to Under Mount (D)
- 9.59mm
-
Length (E)
- 54.8mm
-
Width (F)
- 20mm
-
SizeConventionally sized servo names
- Low Profile
-
Gear Material
- Titanium & Steel
-
Waterproof Casing
- Splash Proof
-
Servo Spline Count
- 25Tooth
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 13
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.065
-
Signal Type
- Digital
-
Drive Motor Type
- Brushless
-
Case Material
- Aluminium
-
Rotational Degrees
- 120° (Normal)
