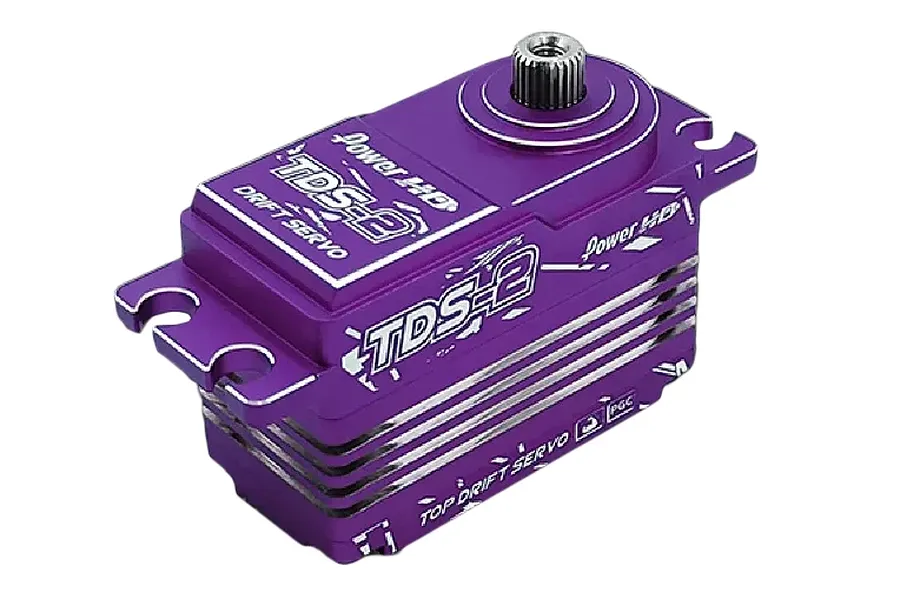

Power HD Aluminium TDS-2 Low Profile 8.4V 25kg Coreless Metal Geared Servo - Purple
Power HD Aluminium TDS-2 Low Profile 8.4V 25kg Coreless Metal Geared Servo - Purple
Power HD Aluminium TDS-2 servo is a high-torque, coreless servo for 1/10 scale RC crawlers, buggies & trucks.
Strong, eye catching aluminium finish
6-8.4V capability
Lightning quick times
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
The Power HD TDS-2 is a high-performance, low-profile servo designed for demanding applications.
With its coreless motor, titanium and steel gears, and dual ball bearings, this servo delivers exceptional speed and torque. It's ideal for 1/10 scale crawlers, buggies, and trucks where precision and responsiveness are crucial.
High torque: 25kg-cm (347 oz-in) at 8.4V
Fast speed: 0.09 sec at 8.4V
Coreless motor for smooth and efficient operation
Durable titanium and steel gears
Dual ball bearings for precise movement
Low-profile design for easy installation in tight spaces
Compatible with program box for custom settings
Genuine Power HD Product
Torque(6.0V): 18.0 kg-cm (250.0 oz-in)
Torque(7.4V): 22.0 kg-cm (305.5 oz-in)
Torque(8.4V): 25.0 kg-cm (347.2 oz-in)
Speed: 0.13 sec (6.0V) | 0.10 sec (7.4V) | 0.09 sec (8.4V)
Weight: 61 g (2.15 oz)
Operating Voltage: 6.0V - 8.4V
Bearing Type: Ball Bearing x 2
Motor Type: Coreless
Operating Temperature: -20℃~60℃
Refresh Rate: 333Hz
1x Power HD Aluminium TDS-2 8.4V 25kg Coreless Metal Geared Servo
-
Height (A)
- 34mm
-
Body Length (B)
- 41mm
-
Bottom to Under Mount (C)
- 19.7mm
-
Top to Under Mount (D)
- 14.3mm
-
Length (E)
- 54.4mm
-
Width (F)
- 20mm
-
SizeConventionally sized servo names
- Standard
-
Gear Material
- Titanium & Steel
-
Waterproof Casing
- Splash Proof
-
Servo Spline Count
- 25Tooth
-
Input Voltage Range
- 6VV, 7.4VV, 8.4VV
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 18
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.13
-
7.4V Torque kg/cm
- 22
-
7.4V Sec/60 Degrees
- 0.10
-
8.4V Torque kg/cm
- 24
-
8.4V Sec/60 Degrees
- 0.09
-
Signal Type
- Digital
-
Drive Motor Type
- Coreless
-
Case Material
- Aluminium
-
Rotational Degrees
- 120° (Normal)
