Savox Orange Aluminium 15kg 8.4V Plus Low Profile HV Coreless Metal Geared Servo
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

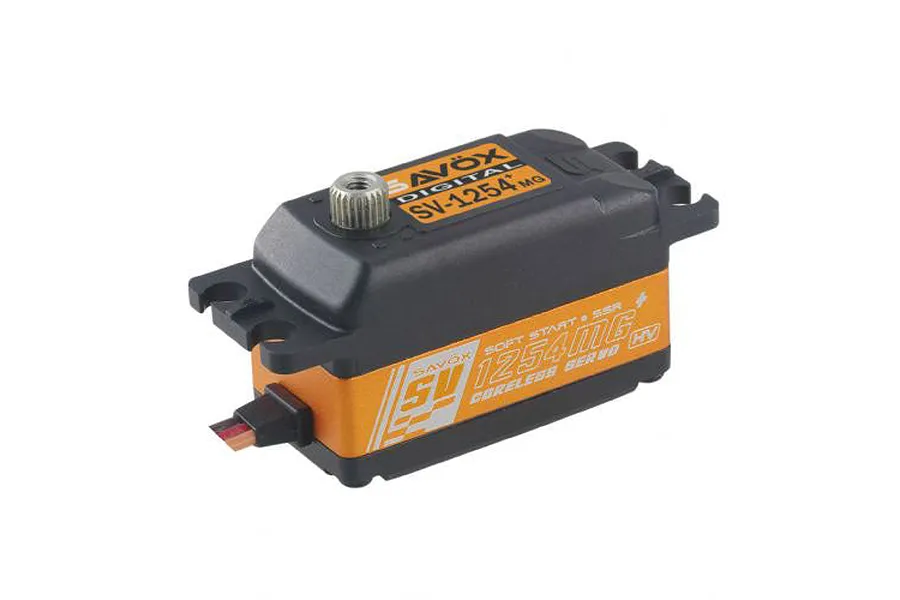

The SV-1254MG Plus servo stands as a testament to servo excellence, featuring a coreless motor that produces exceptional torque and swift transit times, all packaged within a sleek low-profile design. The "Plus" series further enhances this servo's performance with the integration of Soft Start and Sanwa SSR compatibility for refined control and extended compatibility.
In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.
- Utilises unique steel gearing for incredible strength and longevity
- Aluminium middle case provides protection and cooler operation
- Capable of High Voltage usage
- Employs a super high refresh rate to ensure a super smooth operation
- Plus series includes Soft start and Sanwa SSR compatibility
- Ideal for 1/10 use and other applications where space is tight
- Spline size: 25T Spline
- Servo Technology: Digital
- Operating Voltage: 7.4V - 8.4V
- Motor Type: Coreless Motor
- Weight: 46g
- Gear Type: Steel Gears
- Refresh Rate: 333 Hz
- Servo Case: Orange Aluminium Middle w/ Plastic Top & Bottom
- Torque @ 7.4V: 15 kg-cm (208.3 oz-in)
- Torque @ 8.4V: 18 kg-cm (250.0 oz-in)
- Speed @ 7.4V: 0.085 sec/60 deg
- Speed @ 8.4V: 0.075 sec/60 deg
- Connector type: JR/Futaba

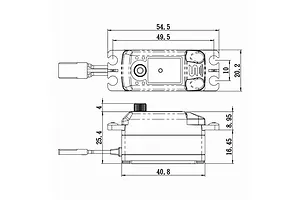

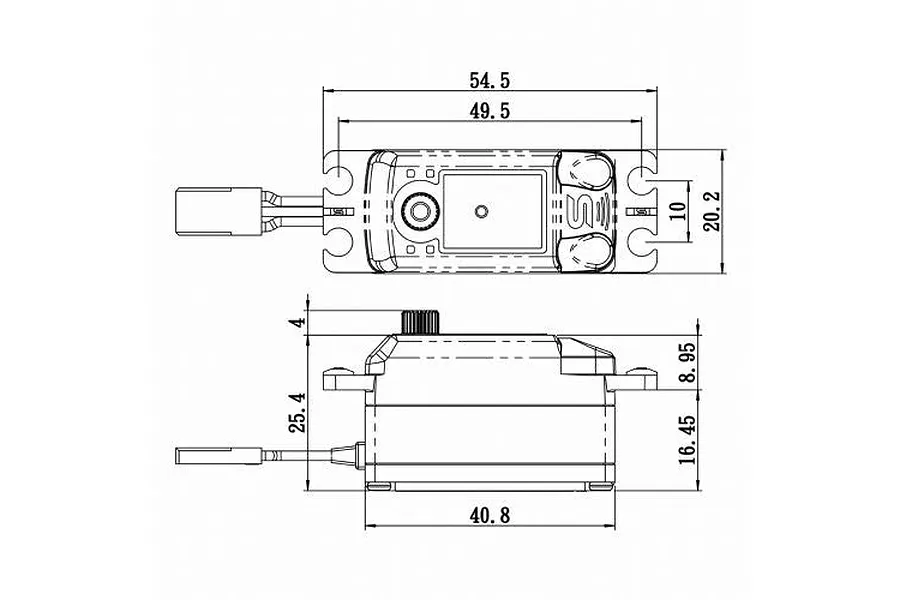

- Total Height (A) = 29.4mm
- Body Width (B) = 40.8mm
- Below Mount (C) = 16.45mm
- Above Mount (D) = 8.95mm
- Total Length (E) = 54.5mm
- Total Width (F) = 20.2mm
| Description | QTY |
|---|---|
| Savox Orange Aluminium 15kg 8.4V Plus Low Profile HV Coreless Metal Geared Servo | 1 |
-
8.4V Torque kg/cm
- 18
-
Servo Spline Count
- 25Tooth
-
7.4V Torque kg/cm
- 15
-
Total Length
- 54.5mm
-
Total Width
- 20.2mm
-
Input Voltage Range
- 7.4VV, 8.4VV
-
Drive Motor Type
- Coreless
-
Total Height
- 29.4mm
-
Body Length
- 40.8mm
-
Case Material
- Aluminium
-
Rotational Degrees
- 120° (Normal)
-
Signal Type
- Digital
-
Gear Material
- Plastic
-
Waterproof Casing
- No
-
7.4V Sec/60 Degrees
- 0.085
-
Bottom to Under Mount
- 16.45mm
-
8.4V Sec/60 Degrees
- 0.075
-
Top to Under Mount
- 8.95mm
-
SizeConventionally sized servo names
- Low Profile
