Savox

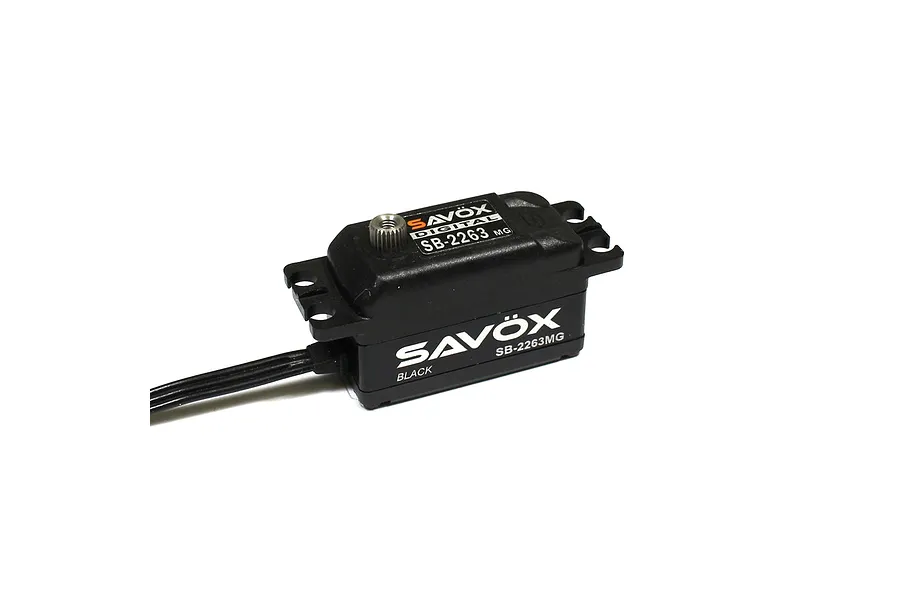

Savox Black Low Profile 10kg 6V Brushless Titanium Geared Servo

  • Brushless

Part no. SB-2263MG-BE

1 in stockNo reviews yet
1 / 2
1 / 2

$139.75

or 4 fortnightly payments of $34.94 with afterpay or PayPal, or zip

Want more than 1? and we'll email you when they're here.

$139.75

Overview

Note

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Specifications

ModelSAV-SB-2263MG-BE

Servo

SizeConventionally sized servo namesLow Profile
Gear MaterialMetal
Servo Spline Count25Tooth
Waterproof CasingNo
Input Voltage Range4.8V, 6V
Case MaterialPlastic
Drive Motor TypeBrushless
Rotational Degrees120° (Normal)
4.8V Torque kg/cm8
4.8V Sec/60 Degrees0.10
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline10
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.076
Signal TypeDigital

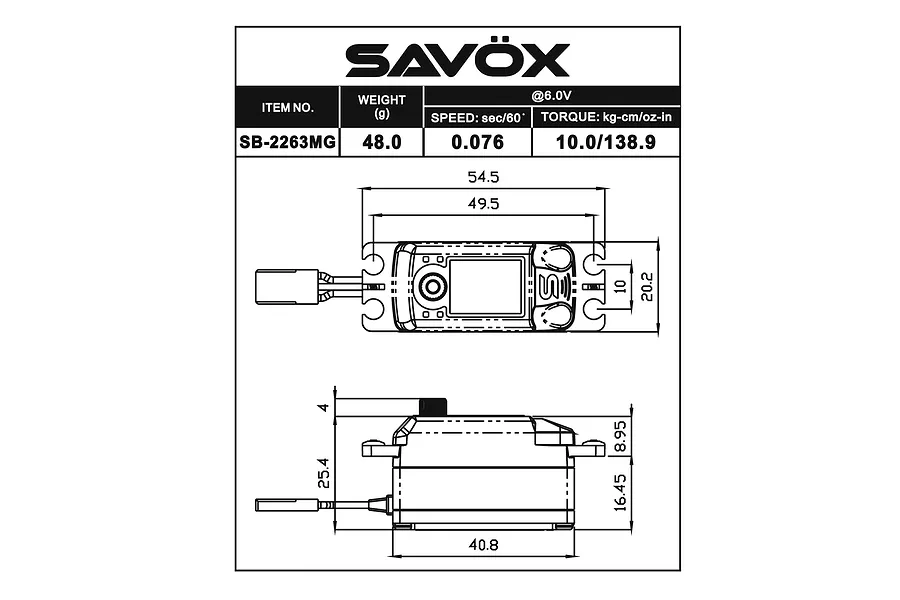

Dimensions

Servo
Height (A)29.4mm
Body Length (B)40.8mm
Bottom to Under Mount (C)16.45mm
Top to Under Mount (D)12.95mm
Length (E)54.5mm
Width (F)20.2mm
