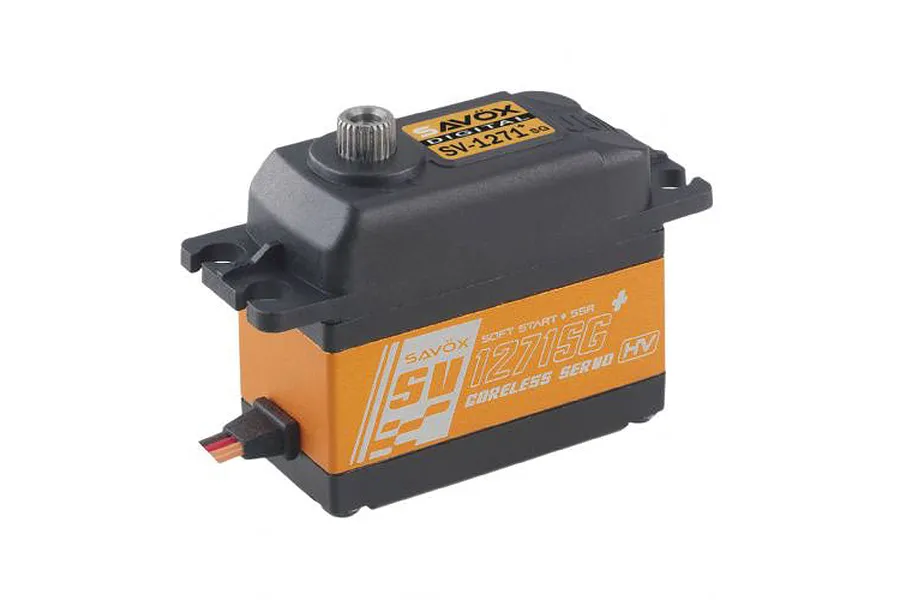

Savox Orange Aluminium 35kg 8.4v Standard Plus HV Coreless Metal Geared Servo

Videos

Savox Orange Aluminium 35kg 8.4v Standard Plus HV Coreless Metal Geared Servo

Brand: Savox | SKU: SV-1271SG-PLUS

1 in stock

write a review

$142.63

Pay later with

Want more than 1?

and we'll notify you when the stock is here.

Recommended Products

Power HD Servo Glitch Buster Receiver Capacitor

2 reviews

$7.26

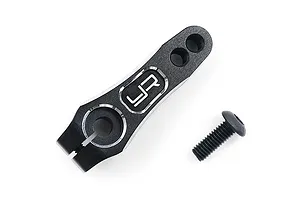

Yeah Racing Black Aluminium 25T Servo Horn

0 reviews

$18.36

sold out

Description

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

The Savox SV-1271SG Plus High Torque, High Voltage Digital Servo stands as a pinnacle of servo performance, offering exceptional speed and high torque, making it a versatile choice for a wide range of applications.

The "Plus" series elevates this servo further with advanced features like Soft Start and Sanwa SSR compatibility for enhanced control and expanded compatibility.

Features

Utilises unique steel gearing for incredible strength and longevity
Aluminium middle case provides protection and cooler operation

Employs a super high refresh rate to ensure a super smooth operation
Plus series includes Soft start and Sanwa SSR compatibility

Specifications

Spline size: 25T Spline
Servo Technology: Digital
Operating Voltage (V): 7.4V - 8.4V
Motor Type: Coreless Motor
Weight: 63g
Gear Type: Unique Steel Gears
Refresh Rate: 333 Hz

Servo Case: Orange Aluminium Middle w/ Plastic Top & Bottom
Torque @ 7.4V: 25 kg-cm (347.2 oz-in)
Torque @ 8.4V: 35 kg-cm (486.1 oz-in)
Speed @ 7.4V: 0.08 sec/60 deg
Speed @ 8.4V: 0.07 sec/60 deg
Connector type: JR/Futaba

Servo Specifications

Total Height (A) = 41.2mm
Body Width (B) = 40.3mm
Below Mount (C) = 24.4mm
Above Mount (D) = 12.8mm
Total Length (E) = 54mm
Total Width (F) = 20.2mm

How To: Install a Servo

In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.

Included items

Description	QTY
Savox Orange Aluminium Standard 35kg 8.4v HV Coreless Metal Geared Servo	1

Specifications

Servo

8.4V Torque kg/cm: 35
Servo Spline Count: 25Tooth
7.4V Torque kg/cm: 25
Total Length: 54mm
Total Width: 20.2mm
Input Voltage Range: 7.4VV, 8.4VV
Drive Motor Type: Coreless
Total Height: 41.2mm
Body Length: 40.3mm
Case Material: Aluminium
Rotational Degrees: 120° (Normal)
Signal Type: Digital
Gear Material: Steel
Waterproof Casing: No
7.4V Sec/60 Degrees: 0.08
Bottom to Under Mount: 24.4mm
8.4V Sec/60 Degrees: 0.07
Top to Under Mount: 12.8mm
Size Conventionally sized servo names: Standard
