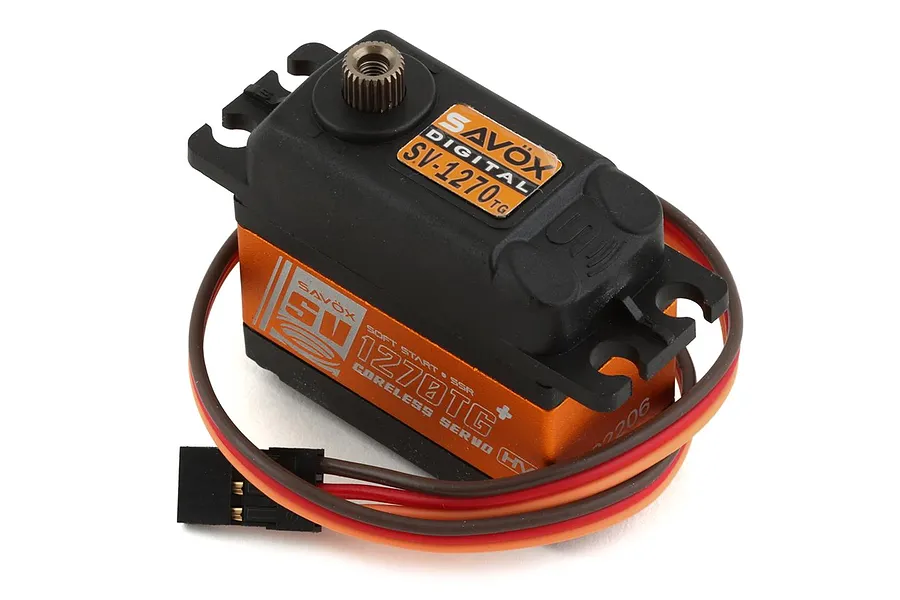

Savox Orange Aluminium 45kg 8.4v HV Standard Coreless Digital Servo
Savox Orange Aluminium 45kg 8.4v HV Standard Coreless Digital Servo
Brand:
Savox
|
MPN: SV-1270TG-PLUS
$147.72
or 4 fortnightly payments of $36.93 with
45kg HV coreless digital servo with titanium gears, soft start, Sanwa SSR compatibility, and orange aluminium case.
- 45 kg-cm torque at 8.4V with coreless motor
- Water resistant with titanium gearing
- Soft start and Sanwa SSR compatible
- Orange anodised aluminium centre case
- Suitable for 1/8 scale vehicles and large scale aeroplanes
Add to Wishlist
Ordered
5 days ago
The date we ordered this product from our supplier.
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Videos
Related Products
Description
Built for demanding applications, the Savox SV-1270TG Plus servo delivers exceptional speed, high torque, and smooth operation. Ideal for 1/8 scale vehicles and large scale aeroplanes, it features soft start and Sanwa SSR compatibility for enhanced control and convenience. Uniquely anodised in orange with an aluminium centre case.
Features
- Water resistant design so you can use in any conditions
- Aluminium centre case helps protect and keep the servo cool
- Features soft start and Sanwa SSR compatibility
- Features super strong Titanium gearing for peak durability
- Suitable for large scale aeroplanes and 1/8 vehicles
- Uniquely anodised in orange

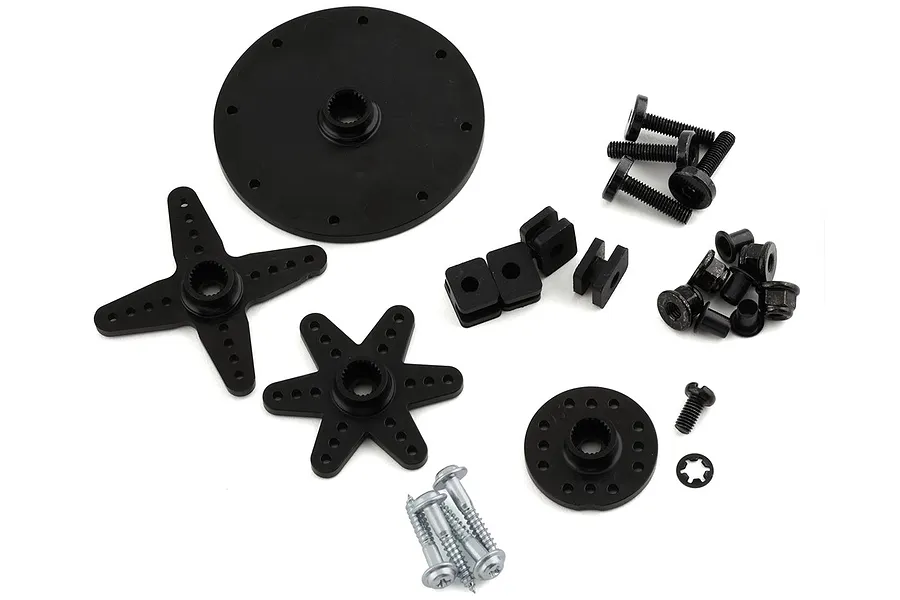

Included Items
- 1x Savox Orange Aluminium 45kg 8.4v HV Standard Coreless Digital Servo
Videos
Specifications
-
Spline size
- 25T Spline
-
Servo Technology
- Digital
-
Operating Voltage
- 7.4V - 8.4V
-
Motor Type
- Coreless Motor
-
Weight
- 64g
-
Gear Type
- Titanium Gears
-
Refresh Rate
- 333 Hz
-
Servo Case
- Orange Aluminium Middle w/ Plastic Top & Bottom
-
Torque @ 7.4V
- 40 kg-cm (555.5 oz-in)
-
Torque @ 8.4V
- 45 kg-cm (624.9 oz-in)
-
Speed @ 7.4V
- 0.11 sec/60 deg
-
Speed @ 8.4V
- 0.10 sec/60 deg
-
Connector type
- JR/Futaba
Servo Dimensions:
-
Total Height (A)
- 37.2mm
-
Body Width (B)
- 40.3mm
-
Below Mount (C)
- 24.4mm
-
Above Mount (D)
- 12.8mm
-
Total Length (E)
- 54.0mm
-
Total Width (F)
- 20.2mm
Servo
-
SizeConventionally sized servo names
- Standard
-
Gear Material
- Metal
-
Servo Spline Count
- 25Tooth
-
Waterproof Casing
- Splash Proof
-
Case Material
- Metal
-
Height (A)
- 37.2mm
-
Body Length (B)
- 40.3mm
-
Bottom to Under Mount (C)
- 24.4mm
-
Top to Under Mount (D)
- 12.8mm
-
Length (E)
- 54mm
-
Width (F)
- 20.2mm
-
Rotational Degrees
- 120° (Normal)
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 45
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.11
-
Signal Type
- Digital
Reviews
(1)
5 out of 5 stars
6 months ago
Arthur
D
Great quality as always. Good strong servos. Installed on my Hpi savage x 4.6 with proline big Joe MT tyres and this makes light work of it.
