Savox

Savox Standard 30kg 8.4V HV Metal Geared Servo

Part no. SC-1268SG-PLUS

1 in stockNo reviews yet
1 / 2
1 / 2

$133.12

or 4 fortnightly payments of $33.28 with afterpay or PayPal, or zip

Want more than 1? and we'll email you when they're here.

$133.12

Overview

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Specifications

SpecificationSAV-SC-1268SG Servo Dimensions:

Servo

SizeConventionally sized servo namesStandard
Gear MaterialSteel
Servo Spline Count25Tooth
Waterproof CasingNo
Case MaterialMetal
Rotational Degrees120° (Normal)
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline15
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.11
7.4V Torque kg/cm25
7.4V Sec/60 Degrees0.11
8.4V Torque kg/cm30
8.4V Sec/60 Degrees0.1
Signal TypeDigital

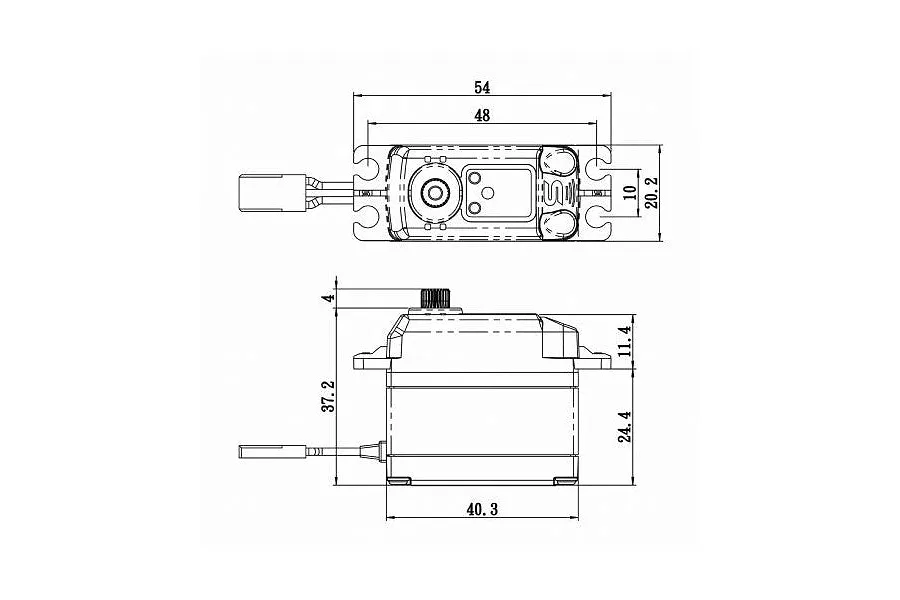

Dimensions

Servo
Height (A)41.2mm
Body Length (B)40.3mm
Bottom to Under Mount (C)24.4mm
Top to Under Mount (D)16.8mm
Length (E)54mm
Width (F)20.2mm
