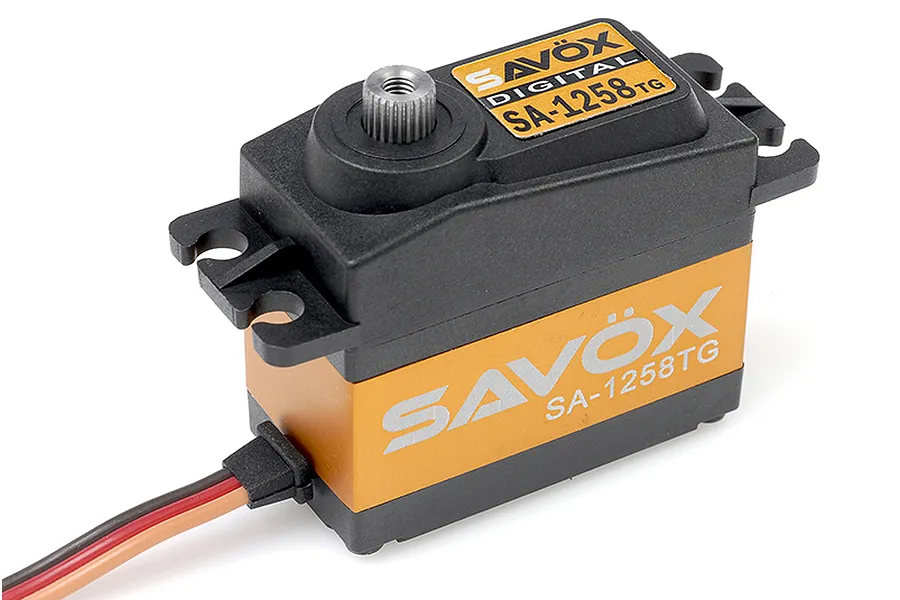

Savox Orange Aluminium 12kg 6V Standard Plus Titanium Geared Servo

Brand: Savox | SKU: SA-1258TG-PLUS
Savox
Videos
Video thumbnail of Savox Orange Aluminium 12kg 6V Standard Plus Titanium Geared Servo
5 in stock
$127.19
Description

 Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

The SA-1258TG Plus servo delivers exceptional torque and minimised backlash, making it ideal for RC plane enthusiasts seeking precise control of flying surfaces. Its "Plus" series features enhance its capabilities with Soft Start for smoother operation and Sanwa SSR compatibility for expanded compatibility.

Features
  • Fitted with Titanium gearing for the utmost strength and durability while maintaining minimal weight gain
  • The aluminium middle case helps provide a high level of protection and assists in keeping the servo cool
  • Plus series includes Soft start and Sanwa SSR compatibility
  • Suitable for RC planes
Specifications
  • Spline size: 25T
  • Servo Technology: Digital
  • Operating Voltage: 4.8V - 6V
  • Motor Type: Coreless
  • Weight: 64g
  • Gear Type: Titanium Gears
  • Refresh Rate: 333 Hz
  • Servo Case: Aluminium Centre Case w/ Plastic Top & Bottom
  • Torque @ 4.8V: 9.6 kg-cm (133.3 oz-in)
  • Torque @ 6V: 12 kg-cm (166.6 oz-in)
  • Speed @ 4.8V: 0.10 sec/60 deg
  • Speed @ 6V: 0.08 sec/60 deg
  • Connector type: JR/Futaba
Servo Specifications
  • Total Height (A) = 41.2mm
  • Body Width (B) = 40.3mm
  • Below Mount (C) = 24.4mm
  • Above Mount (D) = 12.8mm
  • Total Length (E) = 54mm
  • Total Width (F) = 20.2mm
RC Hobby Servo Specifications
How To: Install a Servo

In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.

Included items
Description QTY
Savox Orange Aluminium 12kg 6V Standard Plus Titanium Geared Servo 1
Specifications
Servo
Size: Standard
6.0v Torque: 12kg
6.0v Speed: 0.08s
Gear Material: Titanium & Aluminium
Waterproof Casing: No
Servo Spline Count: 25tooth
Signal Type: Digital
Drive Motor Type: Coreless
Case Material: Metal
Rotational Degrees: 120° (Normal)
Total Height: 41.2mm
Body Length: 40.3mm
Bottom to Under Mount: 24.4mm
Top to Under Mount: 12.8mm
Total Length: 54mm
Total Width: 20.2mm
