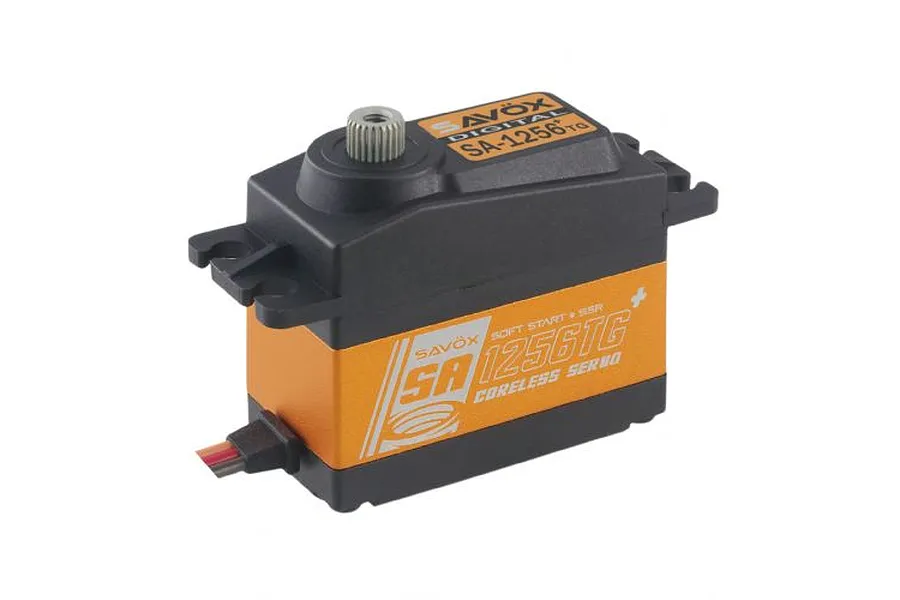

Savox Orange Aluminium SA-1256TG Plus Standard 20kg 6v Coreless Metal Geared Servo

Savox Orange Aluminium SA-1256TG Plus Standard 20kg 6v Coreless Metal Geared Servo

Videos

Savox Orange Aluminium SA-1256TG Plus Standard 20kg 6v Coreless Metal Geared Servo

Brand: Savox | MPN: SA-1256TG-PLUS
1 in stock
$122.06
or 4 fortnightly payments of $30.52 with Afterpay

Savox SA-1256TG Plus — orange aluminium 20kg coreless servo with Titanium gearing, soft start, and Sanwa SSR mode for RC planes.

  • 20kg torque at 6V — high torque for demanding flying applications
  • Titanium gearing for durability with minimal weight penalty
  • Orange anodised aluminium centre case for heat dissipation
  • Soft Start and Sanwa SSR compatible
  • Minimal backlash for precise RC plane control
Add to Wishlist
Pay later with
Afterpay Zip Paypal

Want more than 1?
and we'll notify you when the stock is here.
Enter your suburb or postcode for delivery options
or
Enter your country for international delivery options
Description

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Experience the difference with the Savox SA-1256TG Plus servo. This upgrade for RTR servos delivers exceptional performance with flying applications. Minimized backlash translates your control inputs with precision, leading to smooth and accurate flight. Its high torque tackles demanding maneuvers with ease, while robust construction ensures long-lasting durability. Soft Start and Sanwa SSR compatibility further enhances functionality and convenience. Take your RC plane's capabilities to the next level with the SA-1256TG Plus.

Features
  • Uniquely anodised in orange
  • Aluminium centre case helps protect and keep the servo cool
  • Features soft start and Sanwa SSR compatibility
  • Features Titanium gearing for enhanced durability while minimising weight gain
  • Suitable for aeroplanes
  • Minimal backlash makes it a good addition to your RC plane
Included Items
  • 1x Savox SV-1250MG-Plus Micro 8kg 7.4V HV Coreless Metal Geared Servo
Videos
Specifications
Spline size
25T Spline
Servo Technology
Digital
Operating Voltage
4.8V - 6V
Motor Type
Coreless Motor
Weight
64g
Gear Type
Titanium Gears
Refresh Rate
333 Hz
Servo Case
Orange Aluminium Middle w/ Plastic Top & Bottom
Torque @ 4.8V
16kg-cm (222.2oz-in)
Torque @ 6V
20kg-cm (277.7oz-in)
Speed @ 4.8V
0.18 sec/60 deg
Speed @ 6V
0.15 sec/60 deg
Connector type
JR/Futaba
Total Height (A)
37.2mm
Body Width (B)
40.3mm
Below Mount (C)
24.4mm
Above Mount (D)
13.2mm
Total Length (E)
54mm
Total Width (F)
20.2mm

Servo
Servo
Height (A)
37.2mm
Body Length (B)
40.3mm
Bottom to Under Mount (C)
24.4mm
Top to Under Mount (D)
13.2mm
Length (E)
54mm
Width (F)
20.2mm
Size
Conventionally sized servo names
Standard
Gear Material
Titanium
Waterproof Casing
No
Servo Spline Count
25Tooth
Input Voltage Range
4.8V, 6V
4.8V Torque kg/cm
16
4.8V Sec/60 Degrees
0.18
6V Torque kg/cm
Kilograms of torque at 25mm away from the center of the spline
20
6V Sec/60 Degrees
Seconds per 60 degrees of rotation
0.15
Signal Type
Digital
Drive Motor Type
Coreless
Case Material
Aluminium
Rotational Degrees
120° (Normal)
