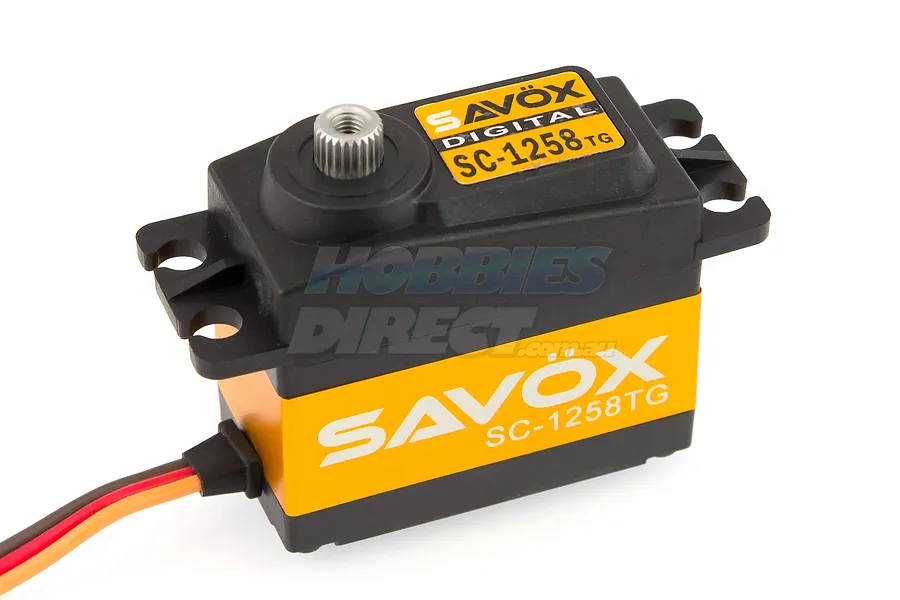

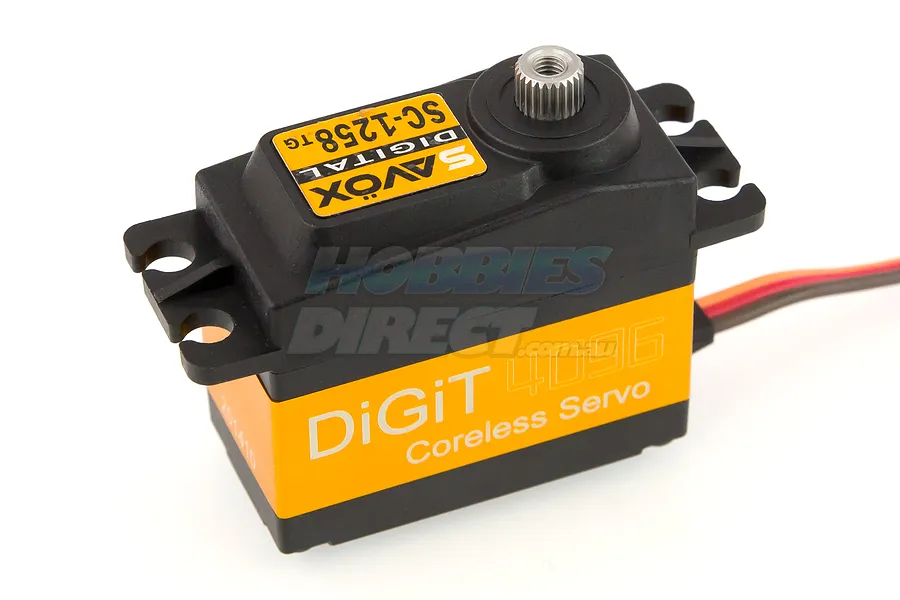

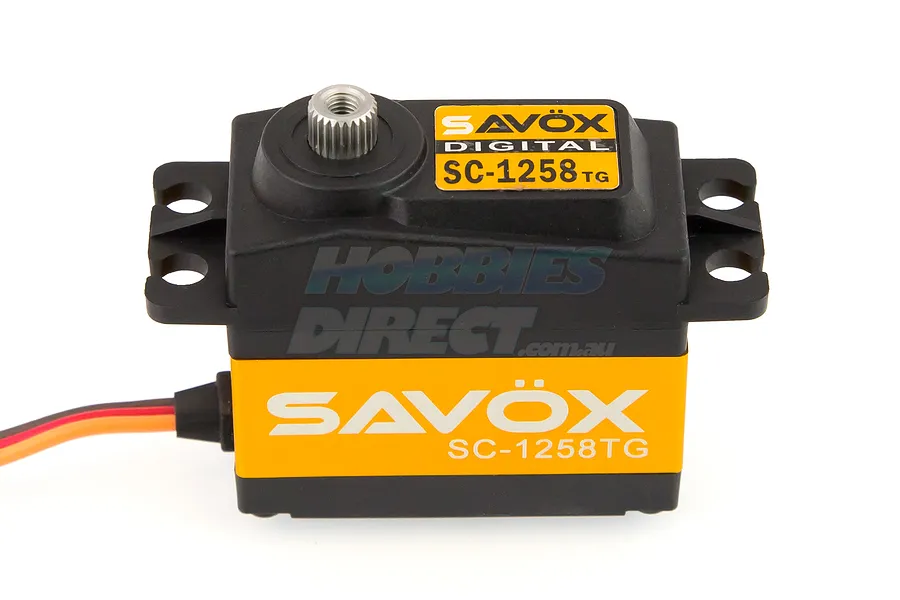

Savox SC-1258TG Plus Standard 12kg 6V Coreless Titanium Geared Servo
Videos
Savox SC-1258TG Plus Standard 12kg 6V Coreless Titanium Geared Servo
1 out of 5 stars
2 out of 5 stars
3 out of 5 stars
4 out of 5 stars
5 out of 5 stars
$143.02
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
The SC1258TG Plus is a high-performance standard-size servo that embodies advanced technology and exceptional 12-bit (4096) resolution for refined and smooth operation. It is perfectly tailored for applications demanding exceptional speed. Incorporating the "Plus" series features, the SC1258TG Plus enhances control and expands compatibility with its Soft Start and Sanwa SSR compatibility.
- Utilises titanium gearing for optimal strength and longevity
- Aluminium middle case provides protection and cooler operation
- Super high resolution to ensure a super smooth operation
- Plus series includes Soft start and Sanwa SSR compatibility
- Spline size: 25T Spline
- Servo Technology: Digital
- Operating Voltage (V): 4.8V - 6V
- Motor Type: Coreless Motor
- Weight: 64g
- Gear Type: Titanium Gears
- Refresh Rate: 333 Hz
- Servo Case: Orange Aluminium Middle w/ Plastic Top & Bottom
- Torque @ 4.8V: 9.6 kg-cm (133.3 oz-in)
- Torque @ 6V: 12 kg-cm (166.6 oz-in)
- Speed @ 4.8V: 0.10 sec/60 deg
- Speed @ 6V: 0.08 sec/60 deg
- Connector type: JR/Futaba
- Total Height (A) = 41.2mm
- Body Width (B) = 40.3mm
- Below Mount (C) = 24.4mm
- Above Mount (D) = 12.8mm
- Total Length (E) = 54mm
- Total Width (F) = 20.2mm
In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.
| Description | QTY |
|---|---|
| Savox SC-1258TG Plus Standard 12kg 6V Coreless Titanium Geared Servo | 1 |
-
Servo Spline Count
- 25Tooth
-
Total Length
- 54mm
-
Total Width
- 20.2mm
-
Bottom to Under Mount
- 24.4mm
-
Top to Under Mount
- 12.8mm
-
4.8V Sec/60 Degrees
- 0.10
-
Drive Motor Type
- Coreless
-
Rotational Degrees
- 120° (Normal)
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.08
-
Signal Type
- Digital
-
Case Material
- Metal
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 12
-
Gear Material
- Titanium & Aluminium
-
Waterproof Casing
- No
-
Input Voltage Range
- 4.8VV, 6VV
-
Total Height
- 41.2mm
-
Body Length
- 40.3mm
-
4.8V Torque kg/cm
- 9.6
-
SizeConventionally sized servo names
- Standard
