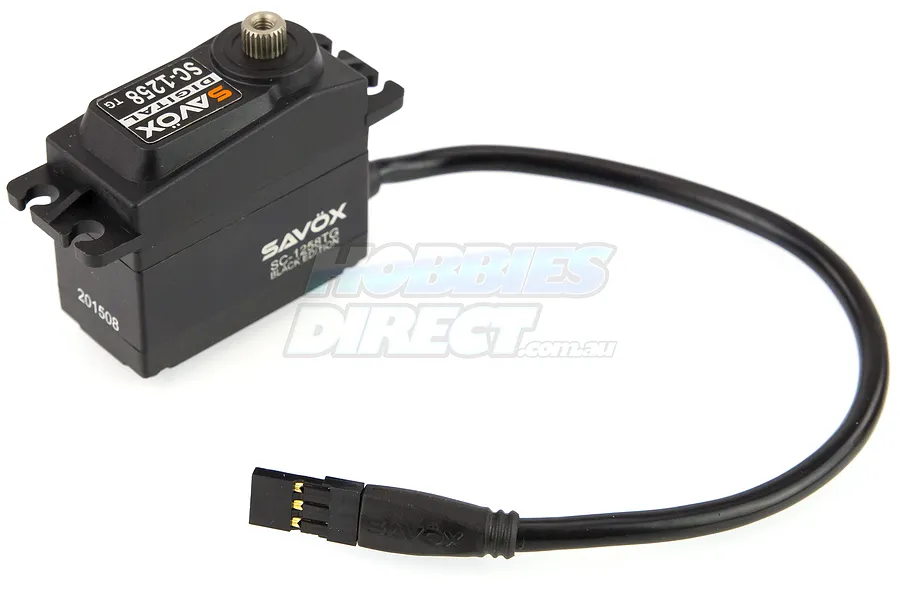

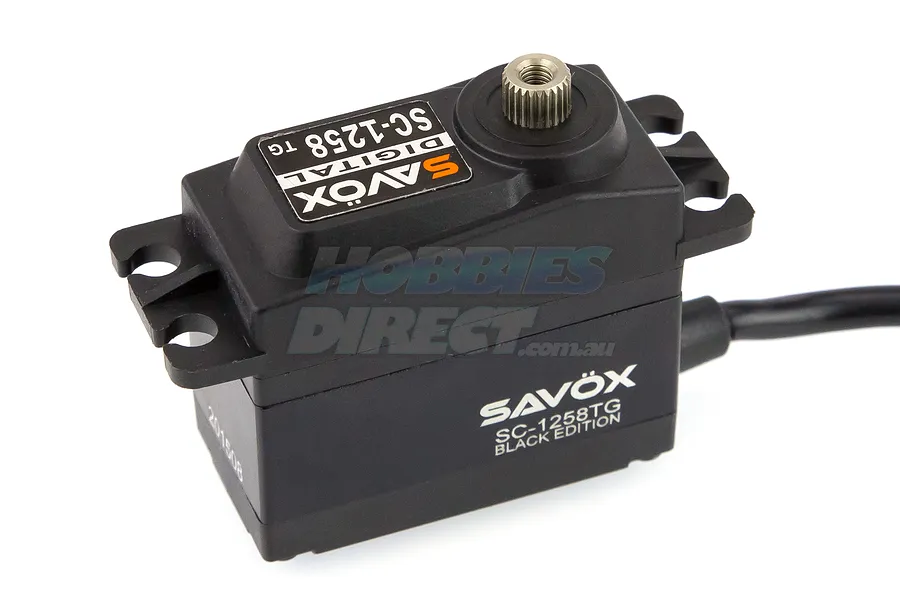

Savox SC-1258TG Black Edition 12kg 6V Coreless Titanium Geared Servo

Part no. SC-1258TG-BE

Discontinued5.0
1 review
1 / 3
1 / 3

Overview

Note

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Specifications

SpecificationSAV-SC-1258TG BLA Servo Specifications

Servo

SizeConventionally sized servo namesStandard
Gear MaterialTitanium & Aluminium
Servo Spline Count25Tooth
Waterproof CasingNo
Input Voltage Range4.8V, 6V
Case MaterialMetal
Rotational Degrees120° (Normal)
4.8V Torque kg/cm9.6
4.8V Sec/60 Degrees0.10
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline12
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.08
Signal TypeDigital

Dimensions

Servo
Height (A)41.2mm
Body Length (B)40.3mm
Bottom to Under Mount (C)24.4mm
Top to Under Mount (D)16.8mm
Length (E)54mm
Width (F)20.2mm
