Savox

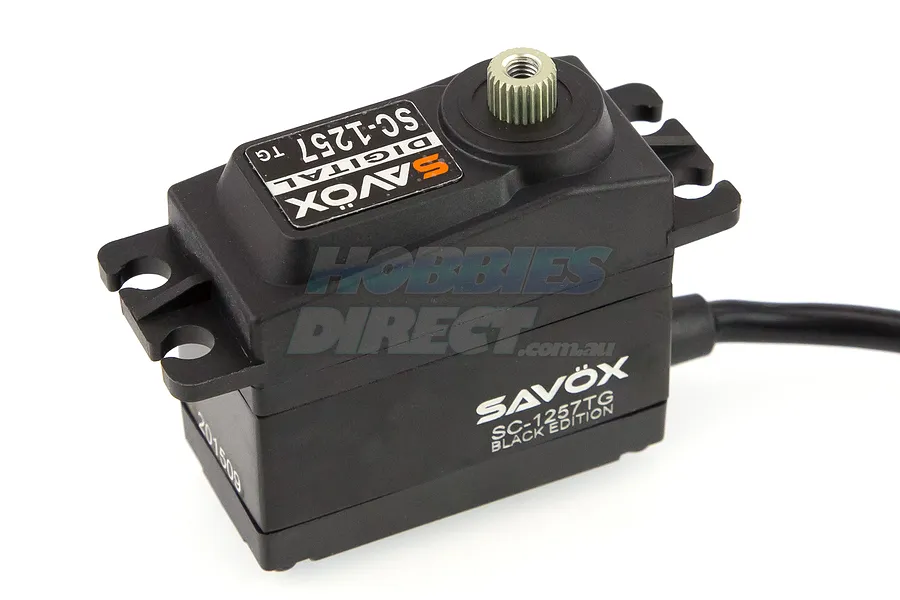

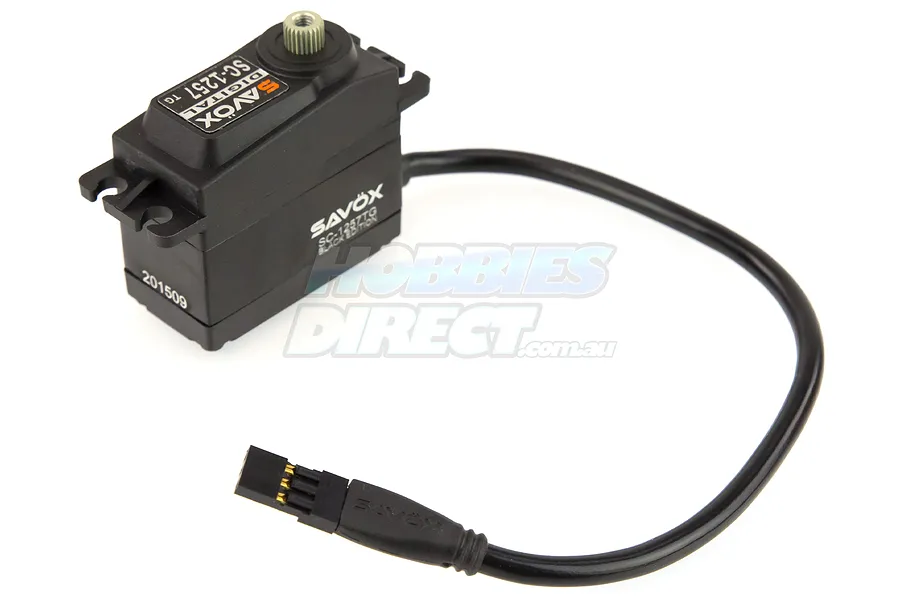

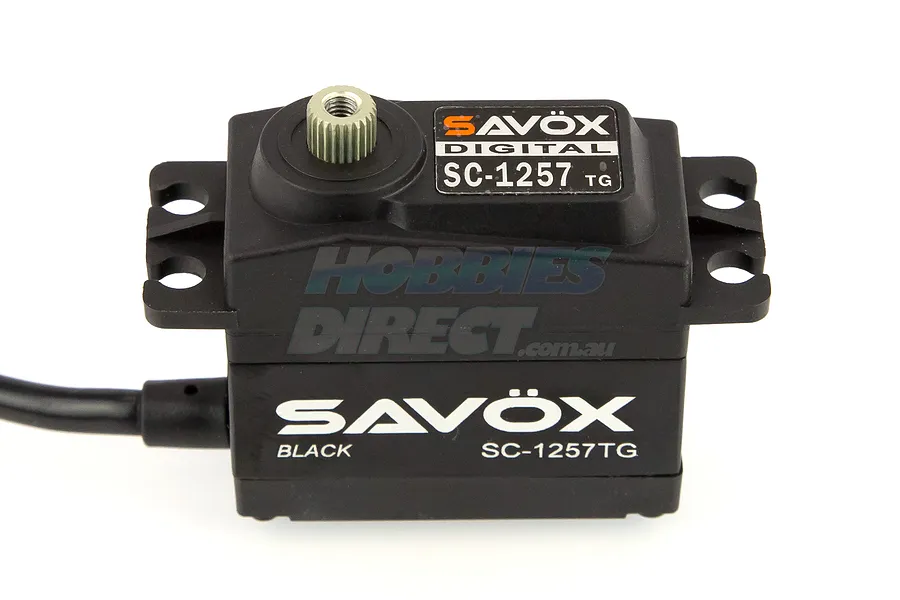

Savox Standard Black Edition 10kg Titanium Geared Servo

Part no. SC-1257TG-BE

DiscontinuedNo reviews yet
1 / 4
1 / 4

Overview

Note

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Specifications

SpecificationSAV-SC-1257TG BLA Servo Specifications

Servo

SizeConventionally sized servo namesStandard
Gear MaterialTitanium & Aluminium
Servo Spline Count25Tooth
Waterproof CasingNo
Case MaterialMetal
Rotational Degrees120° (Normal)
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline10
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.07
Signal TypeDigital

Dimensions

Servo
Height (A)41.2mm
Body Length (B)40.3mm
Bottom to Under Mount (C)24.4mm
Top to Under Mount (D)16.8mm
Length (E)54mm
Width (F)20.2mm
