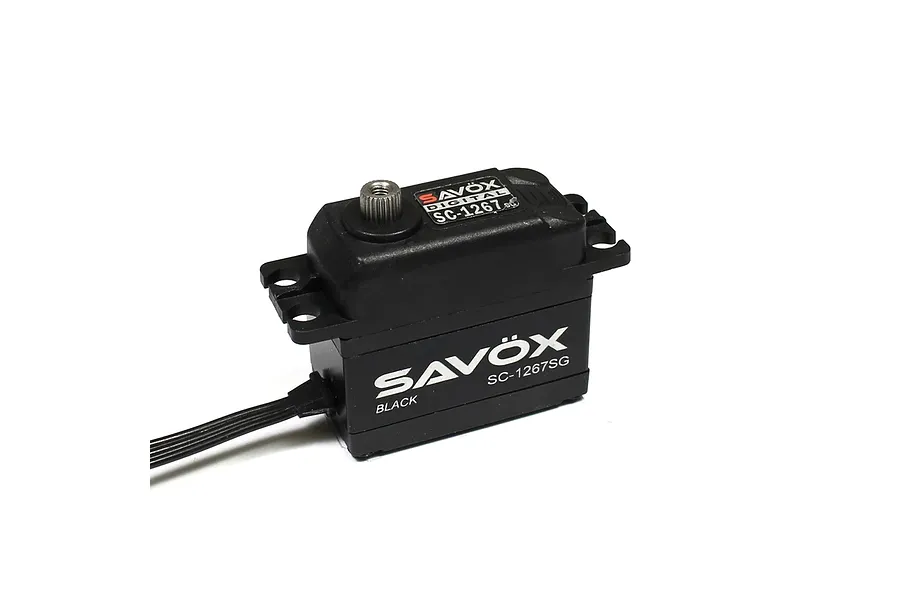

Savox Black Aluminium Standard 25kg 8.4V HV Coreless Metal Geared Servo
Brand: Savox
|
SKU: SC-1267SG-BE
Description
 Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Overview
The SC-1267SG servo offers you the complete package. With good speed and torque, this servo makes a great replacement for those looking to upgrade from a standard servo.
Features
- Super strong and precision made unique steel gears provide durability and survive heavy use
- Capable of HV operation
- Good speed and torque for numerous applications
- Great replacement for RTR vehicles and other applications
Specifications
- Servo Technology: Digital High Voltage
- Servo Case: Aluminium - Composite
- Input Voltage (V): 6.0V - 7.4V
- Servo Type / Size: Standard
- Motor Type: Coreless Motor
- Gear Material: Steel Gears
- Ball Beared: Ball Beared
- Servo Power - Torque Kg/cm: 16 - 25 Kg/cm
- Servo Speed 60°/sec: 0.05 - 0.10 Sec/60°
- Length (mm): 40.3 mm
- Width (mm): 20.0 mm
- Height (mm): 37.2 mm
- Weight (g): 62g
- Speed 60°/Sec @ 7.4V: 0.095 Sec/60°
- Torque kg/cm @ 7.4V: 21.0 Kg/cm
- Connector type: JR
- Spline Size: 25T Spline
Included items
Description | QTY |
---|---|
Black Aluminium Standard Coreless 21kg 7.4v Steel Geared Servo | 1 |
SAV-SC-1268SG Servo Specifications
- Total Height (A) = 37.2mm
- Body Width (B) = 40.3mm
- Below Mount (C) = 24.4mm
- Above Mount (D) = 12.8mm
- Total Length (E) = 54mm
- Total Width (F) = 20.2mm
Learn how to install a steering servo correctly to increase steering performance, and avoid stripping your servo gears out.
Specifications
Servo | |
---|---|
Servo Size: | Standard |
Gear Material: | Steel |
Case Material: | Aluminium |
Waterproof Casing: | No |
Rotational Degrees: | 120o (Normal) |
Servo Spline Count: | 25 |
Signal Type: | Digital |
6.0V Torque kg/cm: | 13 |
7.4V Torque kg/cm: | 20 |
8.4V Torque kg/cm: | 25 |
6.0V Sec/60 Degrees: | 0.11 |
7.4V Sec/60 Degrees: | 0.095 |
8.4V Sec/60 Degrees: | 0.085 |
Input Voltage Range: | 6V,7.4V |
"A" Measurement: | 37.2 |
"B" Measurement: | 40.3 |
"C" Measurement: | 24.4 |
"D" Measurement: | 12.8 |
"E" Measurement: | 54 |
"F" Measurement: | 20.2 |
