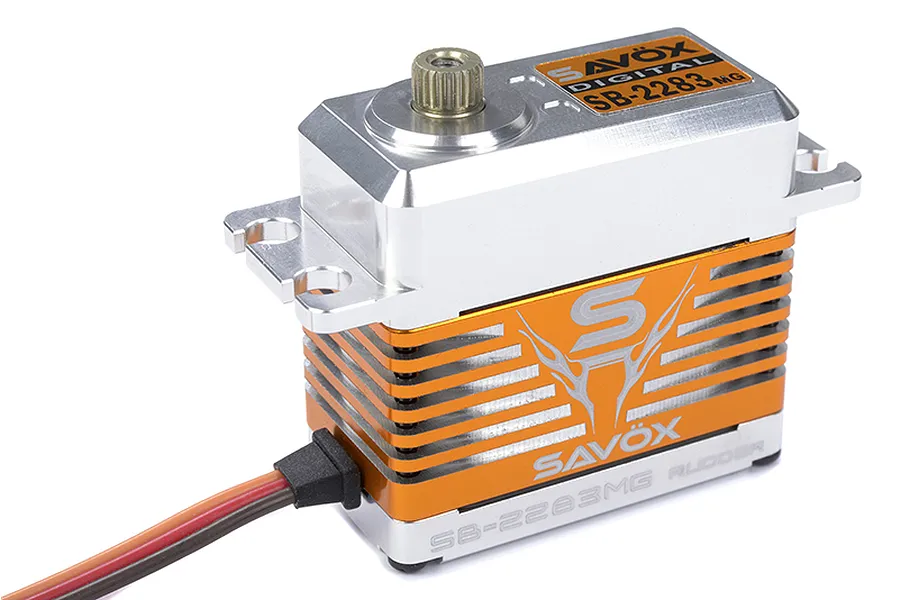

Savox SB-2283MG Standard 10kg 7.4V Brushless Metal Geared Servo

Savox SB-2283MG Standard 10kg 7.4V Brushless Metal Geared Servo

Brand: Savox | MPN: SB-2283MG

1 in stock

write a review

$179.38

or 4 fortnightly payments of $44.84 with

Savox SB-2283MG digital HV brushless servo — 10kg torque at 7.4V, aluminium case, precision metal gears, standard size.

Digital High Voltage brushless motor servo
10.0 kg/cm torque at 7.4V
Aluminium case for improved motor cooling and strength
Precision metal gears with ball bearings
Standard size with 25T spline and JR connector

Pay later with

Want more than 1?

and we'll notify you when the stock is here.

Enter your suburb or postcode for delivery options

or

Enter your country for international delivery options

Description

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Features

Leading edge digital servo technology
High efficiency Brushless motor
Accurate and fast response
Super high resolution
Aluminium case for improved motor cooling and total strength
Ball bearing construction
Precision Metal gears

Specifications

Servo Technology: Digital High Voltage
Input Voltage: 6.0V – 7.4V
Servo Type / Size: Standard
Motor Type: Brushless Motor
Gear Material: Metal Gears
Servo Case: Aluminium
Speed @ 7.4V: 0.048 sec/60°
Torque @ 7.4V: 10.0 kg/cm
Length: 40.3mm
Width: 20.2mm
Height: 38.7mm
Weight: 76g
Connector type: JR
Spline size: 25T

Servo mounting dimensions:

Total Height (A): 38.7mm
Body Width (B): 40.3mm
Below Mount (C): 25.9mm
Above Mount (D): 11.7mm
Total Length (E): 54mm
Total Width (F): 20.2mm

Servo

Size Conventionally sized servo names: Standard
Gear Material: Metal
Servo Spline Count: 25Tooth
Waterproof Casing: No
Input Voltage Range: 7.4V
Case Material: Metal
Height (A): 38.7mm
Body Length (B): 40.3mm
Bottom to Under Mount (C): 25.9mm
Top to Under Mount (D): 11.7mm
Length (E): 54mm
Width (F): 20.2mm
Drive Motor Type: Brushless
Rotational Degrees: 120° (Normal)
7.4V Torque kg/cm: 10
7.4V Sec/60 Degrees: 0.048
Signal Type: Digital
