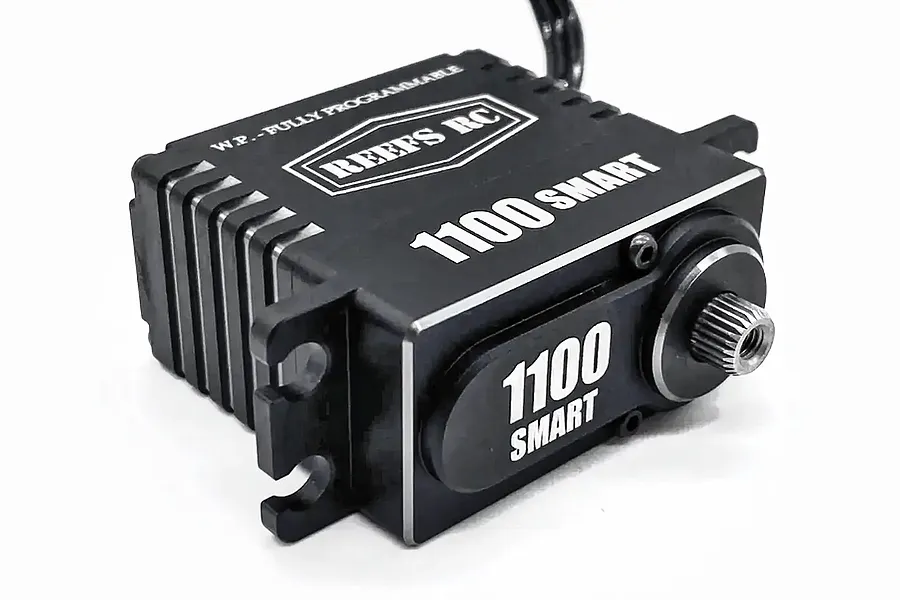

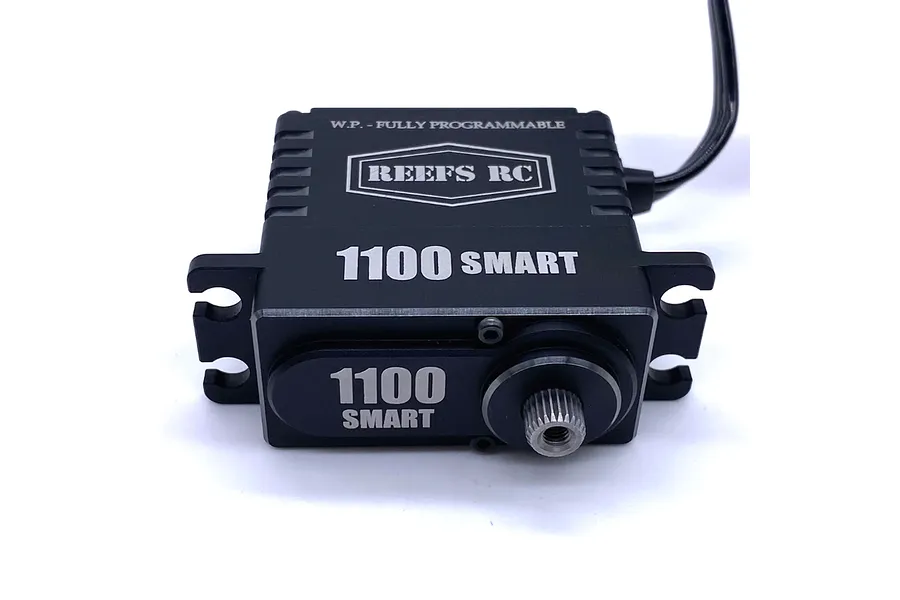

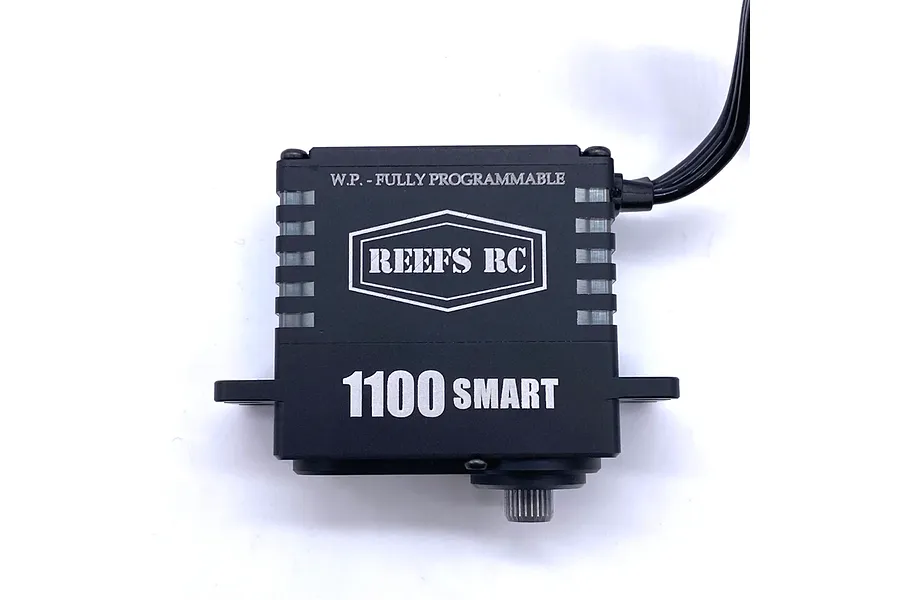

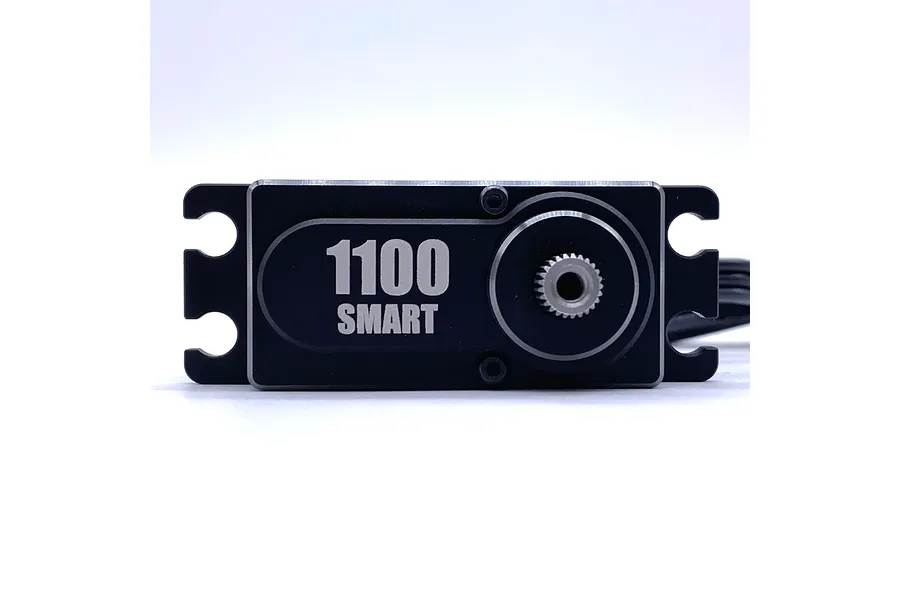

Reefs RC Aluminium 1100 Smart Standard 79kg 8.4V Brushless Metal Gear Servo/Winch - Black

  • Brushless

Part no. REEFS119

Sold out5.0
1 review
1 / 6
1 / 6

$299.99

or 4 fortnightly payments of $75.00 with afterpay or PayPal, or zip

In stock now: similar

Specifications

Servo

Servo
SizeConventionally sized servo namesStandard
Gear MaterialSteel
Servo Spline Count25Tooth
Waterproof CasingYes
Input Voltage Range6V, 7.4V, 8.4V
Case MaterialAluminium

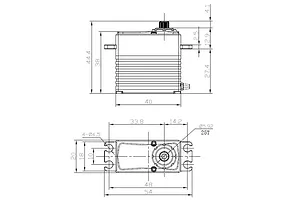

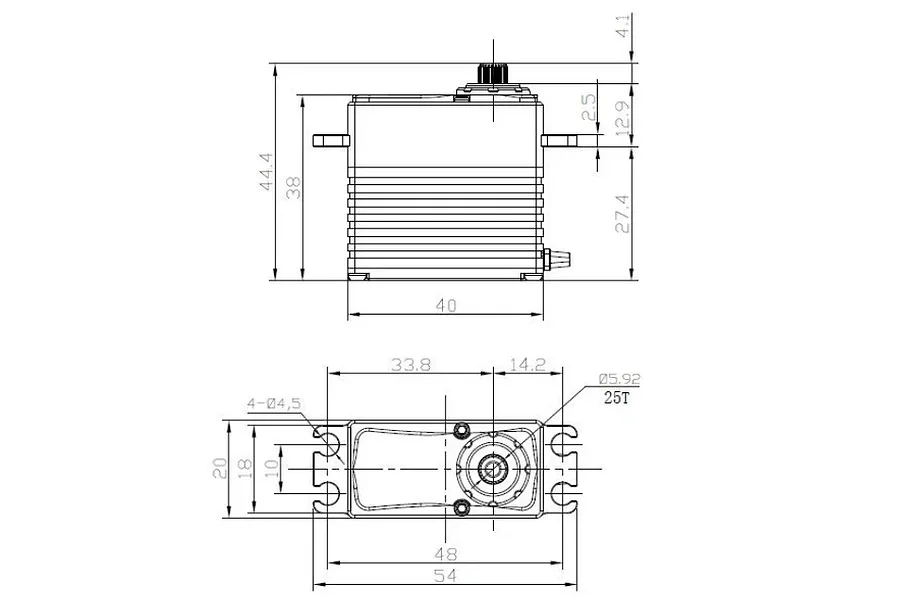

Height (A)44.41mm
Body Length (B)40mm
Bottom to Under Mount (C)27.12mm
Top to Under Mount (D)16.13mm
Length (E)54mm
Width (F)20.2mm
Drive Motor TypeBrushless
Rotational Degrees120° (Normal)
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline54
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.16
7.4V Torque kg/cm67
7.4V Sec/60 Degrees0.13
8.4V Torque kg/cm80
8.4V Sec/60 Degrees0.12
Signal TypeDigital

Reviews (1)

5.0

Based on 1 review

  • 5 stars1
  • 4 stars0
  • 3 stars0
  • 2 stars0
  • 1 star0

  • BENJAMIN k

    Verified buyer

    6 June 2026

    Very powerful
