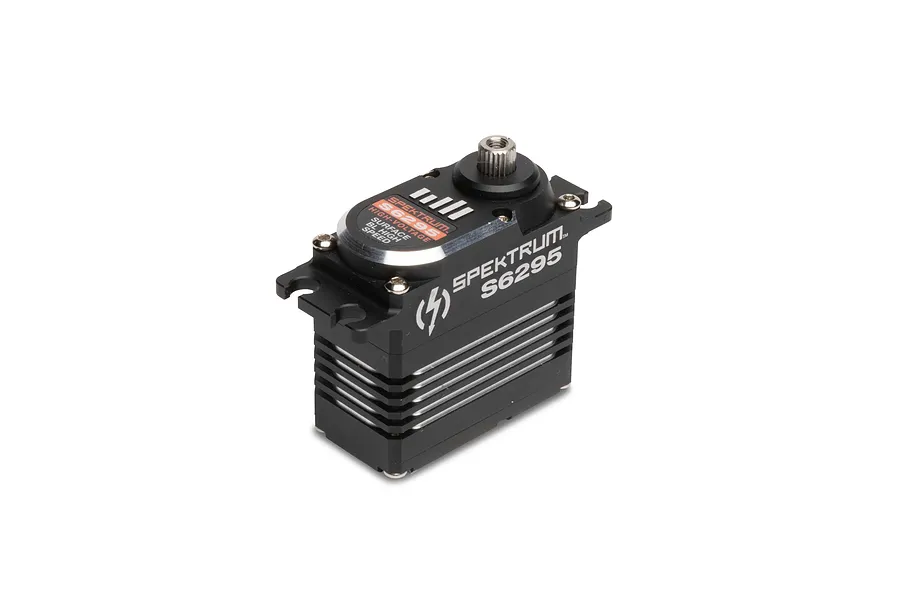

Spektrum Aluminium S6295 30kg 8.4V Waterproof Metal Geared Servo
Spektrum Aluminium S6295 30kg 8.4V Waterproof Metal Geared Servo
Upgrade your RC vehicle's performance with the Spektrum S6295 servo, a powerful and precise servo designed to handle the demands of high-performance applications. Boasting a class-leading brushless powertrain, the S6295 delivers blindingly fast 0.062 sec transit speeds and impressive torque of 30kg-cm at 8.4V. This servo is engineered for precision control and responsiveness, ensuring that your RC vehicle reacts exactly as you command. The S6295's advanced features include soft start to protect your steering components, over current protection to prevent damage, and advanced fail-safes to maintain control in case of signal loss. Its all-aluminium case provides durability and heat dissipation, making it ideal for even the most demanding environments. Whether you're racing 1/8th scale buggies, bashing through terrain, or crawling over rocks, the Spektrum™ servo is the perfect choice for your RC vehicle.
Features
Class-leading brushless powertrain for exceptional speed, torque, and precision
Blindingly fast 0.062 sec transit speeds for unmatched responsiveness
Impressive torque of 30kg-cm at 8.4V for unwavering control
Advanced features like soft start, over current protection, and fail-safes
Durable all-aluminium case for heat dissipation and protection
Compatible with 8.4V input for high-performance applications
Sleek black and silver anodised metal case
23T output spline
Water resistant
Hardened steel gears
Precision engineered gear train for tight mesh and low wear

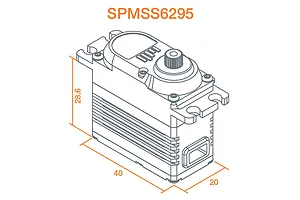

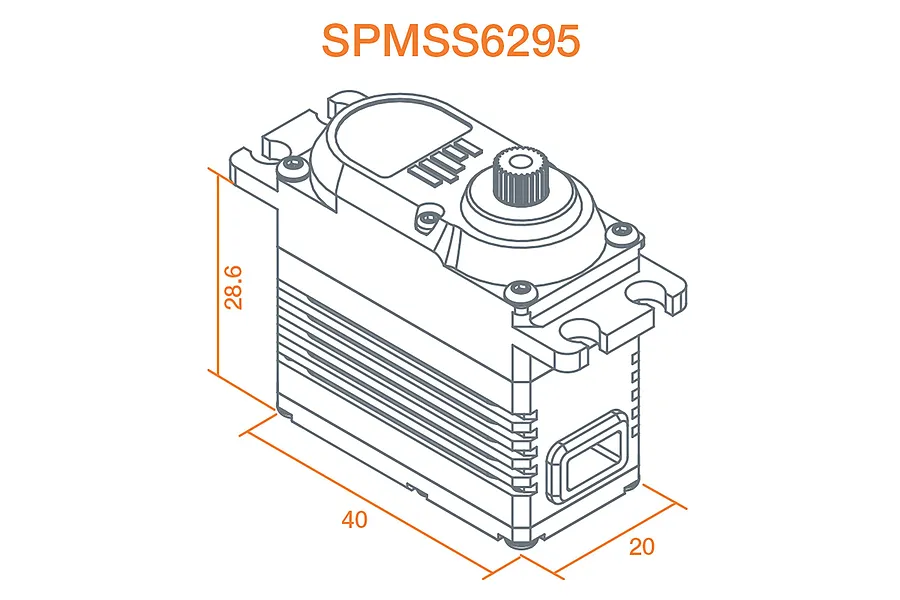

Servo Specifications
Total Height (A) = N/A
Body Width (B) = N/A
Below Mount (C) = N/A
Above Mount (D) = N/A
Total Length (E) = N/A
Total Width (F) = N/A

How To: Install a Servo
In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.

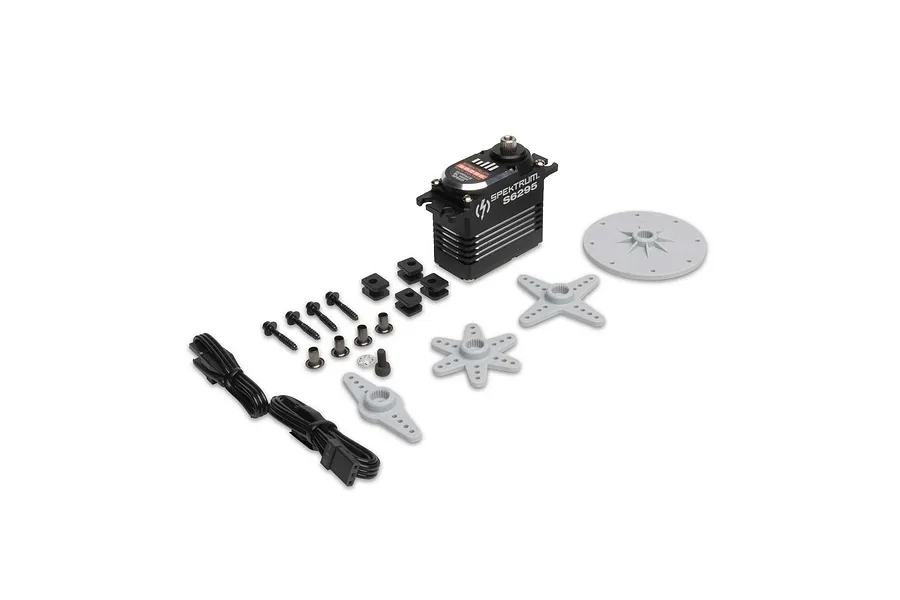

Included items| Description | QTY |
|---|---|
| Spektrum Aluminium S6295 30kg 8.4V Waterproof Metal Geared Servo | 1 |
Compatible Spektrum™ receiver
4 AA batteries (for receiver)
-
Servo Spline Count
- 23Tooth
-
8.4V Torque kg/cm
- 30
-
Total Length
- 55mm
-
Total Width
- 20mm
-
Drive Motor Type
- Brushless
-
Top to Under Mount
- 20mm
-
Total Height
- 44.7mm
-
Input Voltage Range
- 7.4VV, 6VV, 8.4VV
-
Case Material
- Aluminium
-
Rotational Degrees
- 120° (Normal)
-
Signal Type
- Digital
-
Gear Material
- Steel
-
Waterproof Casing
- Yes
-
8.4V Sec/60 Degrees
- 0.062
-
Body Length
- 40mm
-
Bottom to Under Mount
- 28.6mm
-
SizeConventionally sized servo names
- Standard
