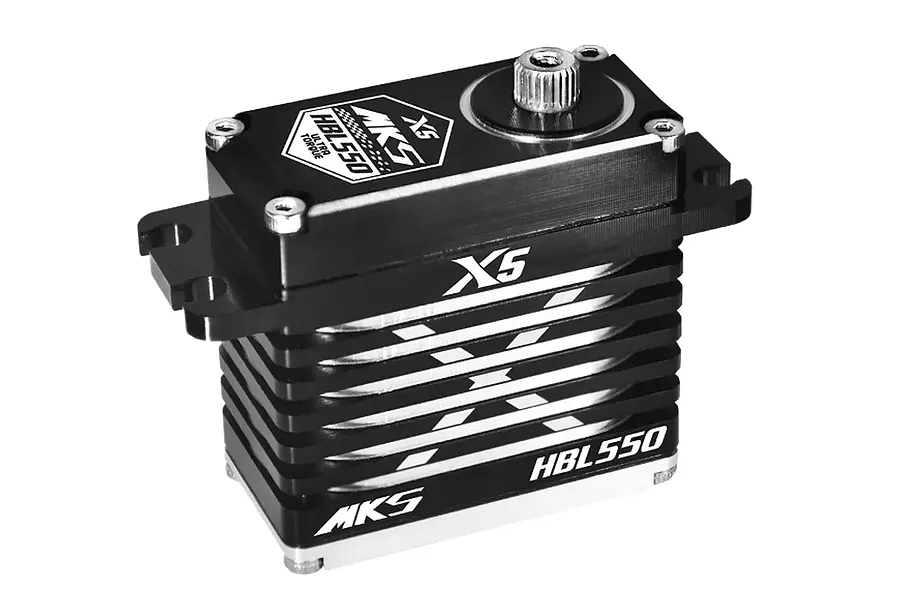

MKS Black Aluminium HBL550 Standard 38kg 8.4V Brushless Metal Geared Servo

Brand: MKS | SKU: S0026004
10+ in stock

$185.21

Description

 Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

The MKS Black Aluminium X5 combines impressive torque with lightning-fast response speeds, perfect for demanding applications where both power and precision are needed.

Features
  • Powerful torque for demanding applications
  • Extremely quick response speeds as quick as 0.085s
  • Durable brushless motor pairs with the metal gears for unparalleled durability
  • All aluminium case provides efficient heat dissipation and protection
  • High voltage operation (6.0v-8.4v)
  • Genuine MKS Product
Specifications
  • Torque (6.0V): 29 kg-cm / 402.7 oz-in
  • Torque (7.4V): 36 kg-cm / 499.9 oz-in
  • Torque (8.2V): 38 kg-cm / 527.7 oz-in
  • Speed: 0.117 s (6.0V)  / 0.094 s (7.4V) / 0.085 s (8.2V)
  • Weight: 79.5 g (2.80 oz)
  • Operating Voltage: 6.0V ~ 8.4V DC Volts
  • Bearing Type: Dual Ball Bearing
  • Motor Type: Brushless
  • Operating Temperature: N/A
  • Refresh Rate: 333Hz
Servo Dimensions
  • Total Height (A) = 42.6 mm
  • Body Width (B) = 40 mm
  • Below Mount (C) = 27.3 mm
  • Above Mount (D) = 9.9 mm
  • Total Length (E) = 49.5 mm
  • Total Width (F) = 20 mm
  • Spline Diameter: 6mm - 25T
RC Hobby Servo Specifications
How To: Install a Servo

In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.

Included items
Description QTY
MKS Black Aluminium X5 38kg 8.4V Standard Brushless Metal Geared Servo 1
Specifications
Servo
Servo Size: Standard
Drive Motor Type: Brushless
Gear Material: Metal
Case Material: Aluminium
Waterproof Casing: Yes
Rotational Degrees: 120° (Normal)
Servo Spline Count: 25
Signal Type: Digital
6.0V Torque kg/cm: 29
7.4V Torque kg/cm: 36
8.4V Torque kg/cm: 38
6.0V Sec/60 Degrees: 0.117
7.4V Sec/60 Degrees: 00.94
8.4V Sec/60 Degrees: 00.85
Input Voltage Range: 6V| 7.4V| 8.4V
"A" Measurement: 42.6
"B" Measurement: 40
"C" Measurement: 27.3
"D" Measurement: 9.9
"E" Measurement: 49.5
"F" Measurement: 20
