Reefs RC Aluminium 900 Smart Standard 68kg 8.4V Brushless Metal Gear Servo/Winch - Black

Name: Hobbies Direct
Address: Unit 5 80-84 Tucker St, Breakwater, VIC, 3219, AU
Telephone: +61352921101
Price range: $$$

Brand: Reefs RC | SKU: REEFS118

1 in stock

write a review

$281.84

Pay later with

Want more than 1?

and we'll notify you when the stock is here.

Description

No description

Specifications

Servo

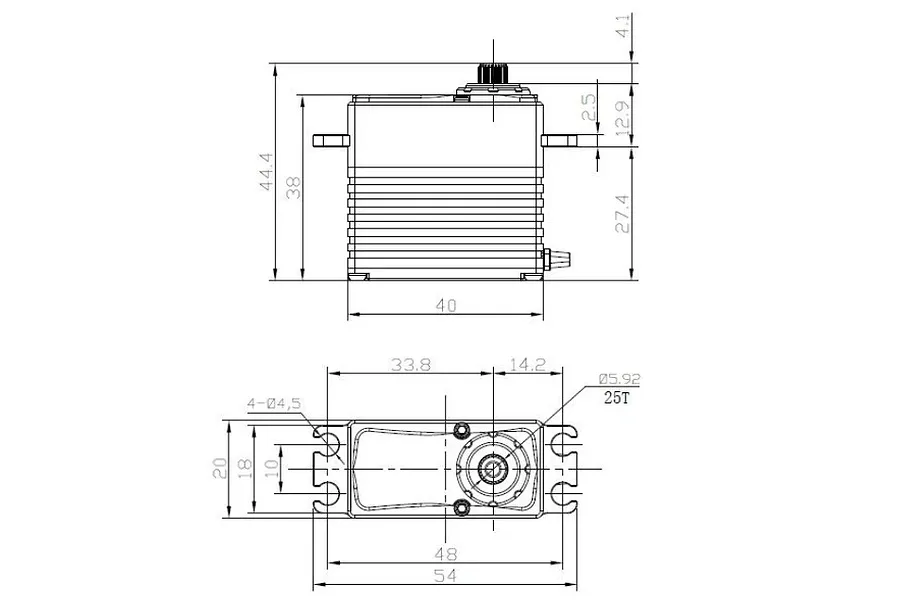

Height (A): 44.41mm
Body Length (B): 40mm
Bottom to Under Mount (C): 27.12mm
Top to Under Mount (D): 16.13mm
Length (E): 54mm
Width (F): 20.2mm
Size Conventionally sized servo names: Standard
Gear Material: Steel
Waterproof Casing: Yes
Servo Spline Count: 25Tooth
Input Voltage Range: 6V, 7.4V, 8.4V
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 52
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.13
7.4V Torque kg/cm: 60
7.4V Sec/60 Degrees: 0.12
8.4V Torque kg/cm: 68
8.4V Sec/60 Degrees: 0.10
Signal Type: Digital
Drive Motor Type: Brushless
Case Material: Aluminium
Rotational Degrees: 120° (Normal)
