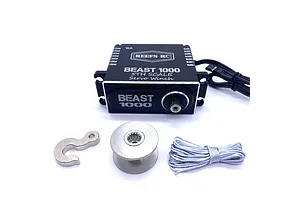

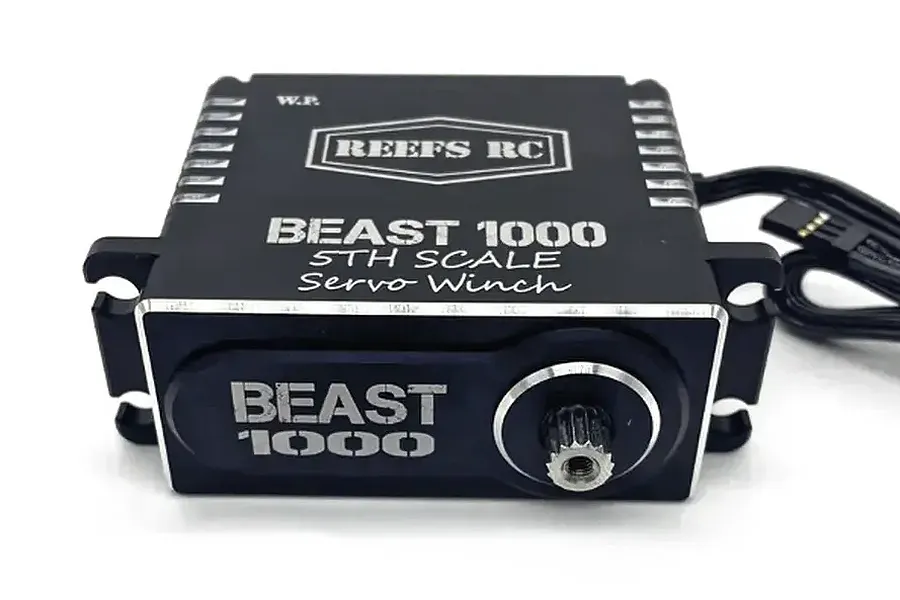

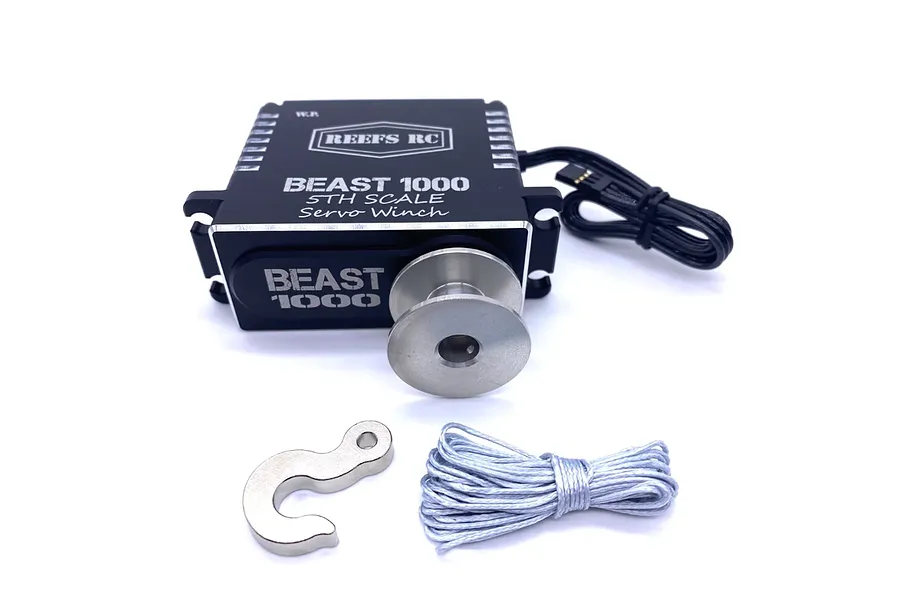

Reefs RC Aluminium BEAST 1000 1/5 Scale 77kg 8.4V Brushless Metal Gear Winch Servo with Spool - Black

  • 1/5
  • Brushless

Part no. REEFS116

1 in stockNo reviews yet
1 / 4
1 / 4

$769.99

or 4 fortnightly payments of $192.50 with afterpay or PayPal, or zip

REEFS Beast 1000 1/5 Scale RC Servo Winch: High torque, high speed, and waterproof.

  • High torque and speed for superior performance
  • Submarine waterproof with 7-point seals
  • Magnetic angle sensor for precise control
  • Durable steel gears and CNC aluminium casing
  • Suitable for 1/5 scale RC vehicles

Want more than 1? and we'll email you when they're here.

  • 1 in stock · Ships Thursday · order by Thursday

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Overview

The REEFS Beast 1000 1/5 Scale Servo Winch is a top-tier choice for RC enthusiasts seeking high performance and reliability. This servo winch boasts impressive torque and speed, making it ideal for demanding applications. With a voltage range of 4.8V to 8.4V, it delivers consistent power and performance across various conditions.

Designed with durability in mind, the Beast 1000 features steel gears and a CNC aluminium casing, ensuring it can withstand rigorous use. The submarine waterproof design with 7-point seals provides excellent protection against water and dust, making it suitable for all-terrain adventures. Additionally, the magnetic angle sensor and pulse width modulation control offer precise and responsive control, enhancing the overall driving experience. Whether you're a seasoned RC hobbyist or a newcomer, the REEFS Beast 1000 is a reliable and powerful addition to your RC setup.

Note

BEC is not required but recommended for maximum performance.

Consult the manual for waterproof standards and maintenance.

Features

  • High torque and speed brushless servo winch
  • Includes REEFS spool, 5th scale hook, and synthetic line
  • Submarine waterproof with 7-point seals
  • Magnetic angle sensor for precise control
  • Pulse width modulation control
  • Voltage range: 4.8V - 8.4V
  • No mechanical angle limit
  • Steel gears and CNC aluminium casing
  • 5 ball bearings for smooth operation
  • 22AWG wires
  • Genuine REEFS product

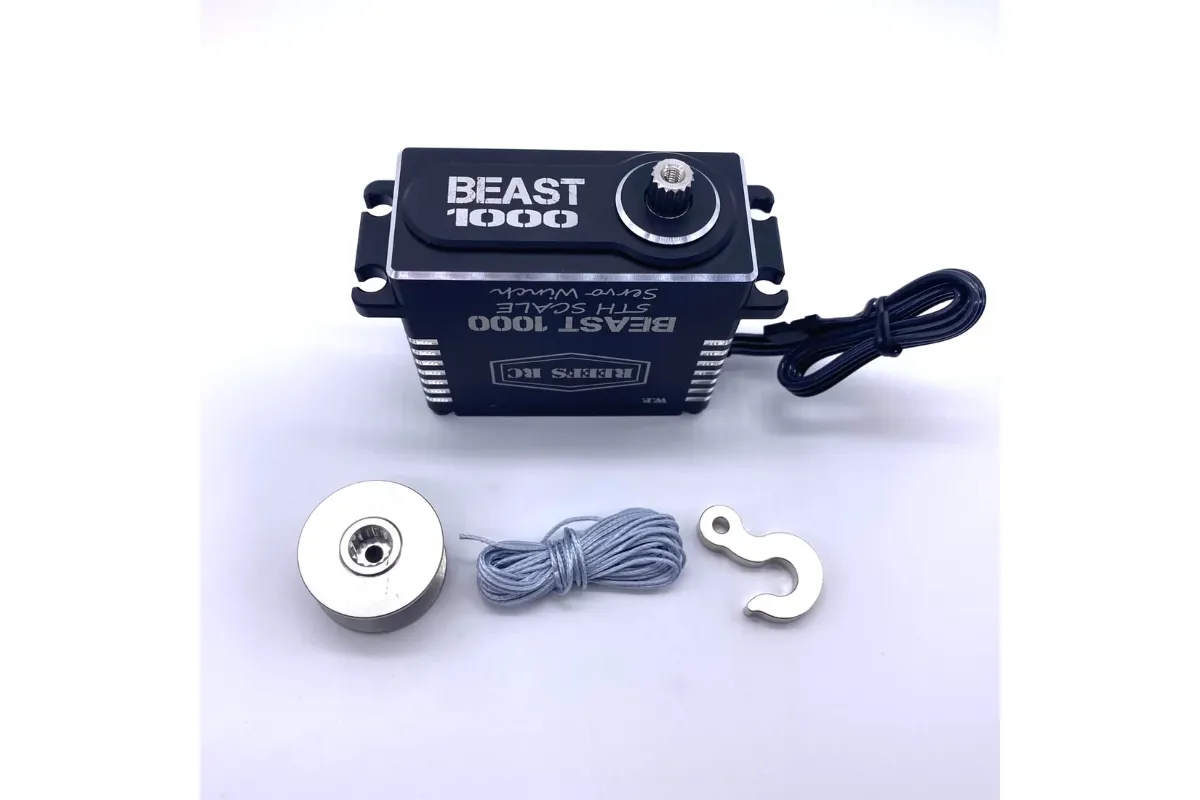

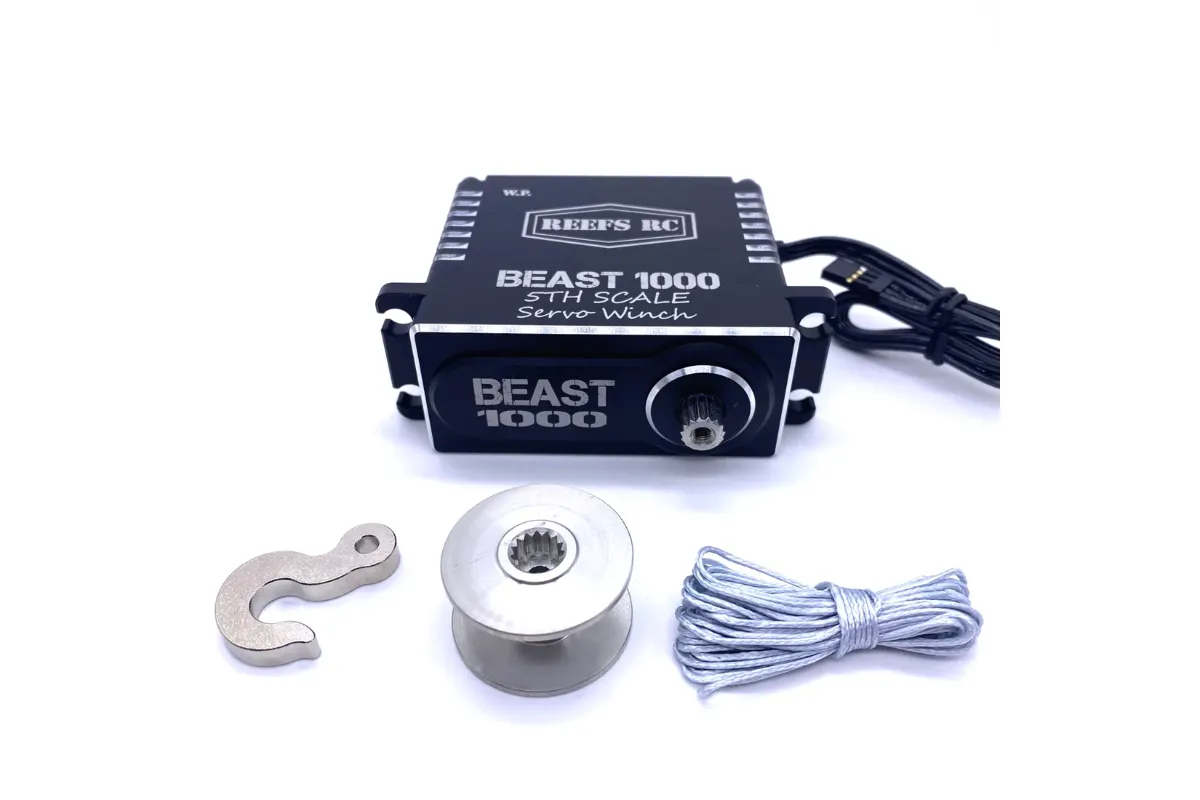

In the box

  • 1x REEFS RC Servo Winch
  • 1x REEFS Spool
  • 1x REEFS 5th Scale Hook
  • 1x Synthetic Line

Specifications

Torque(6.0V)57.6 kg-cm (800 oz-in)
Torque(7.4V)64.8 kg-cm (900 oz-in)
Torque(8.4V)77.8 kg-cm (1080 oz-in)
Speed0.11 sec (6.0V), 0.095 sec (7.4V), 0.08 sec (8.4V)
Operating Voltage4.8V - 8.4V
Weight285g (10oz)
Bearing Type5 Ball Bearings
Motor TypeBrushless Motor
Gear TypeSteel Gears
Size65.8x30x59mm (2.59x1.18x2.32")

Servo

SizeConventionally sized servo names1/5
Gear MaterialSteel
Servo Spline Count15Tooth
Waterproof CasingYes
Input Voltage Range6V, 7.4V, 8.4V
Case MaterialAluminium
Drive Motor TypeBrushless
Rotational Degrees360°
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline58
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.11
7.4V Torque kg/cm64
7.4V Sec/60 Degrees0.095
8.4V Torque kg/cm78
8.4V Sec/60 Degrees0.08
Signal TypeDigital
