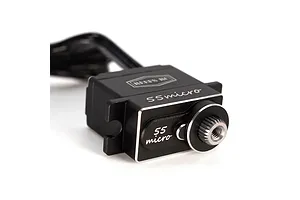

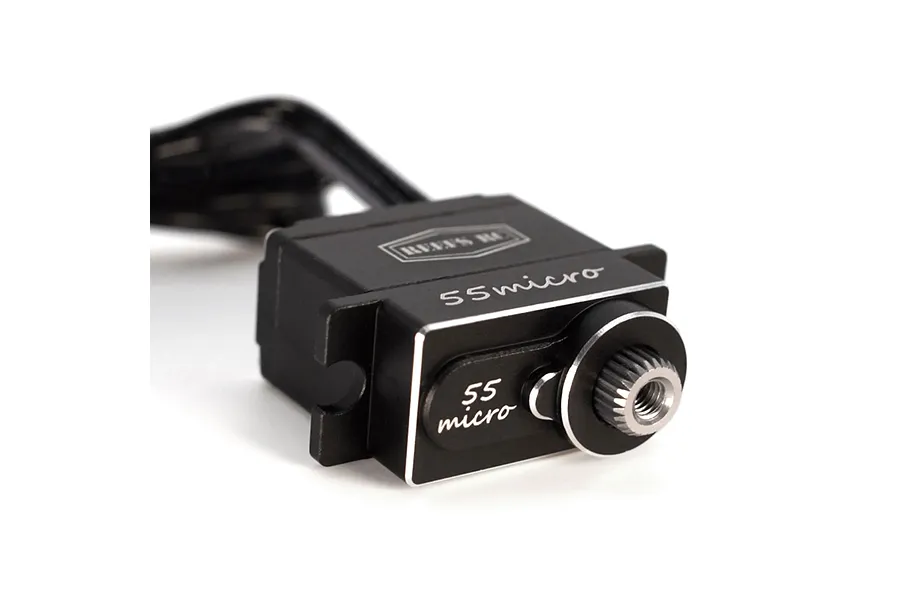

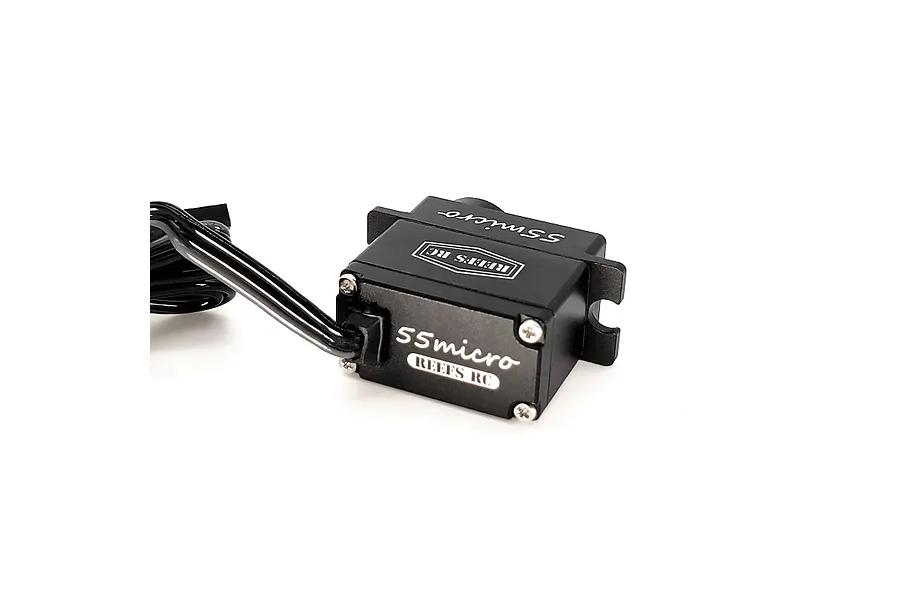

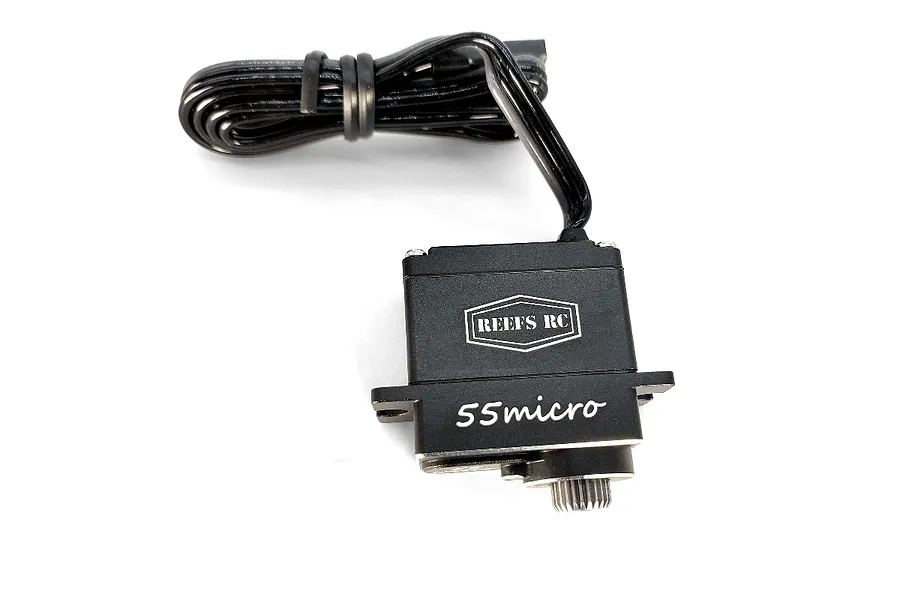

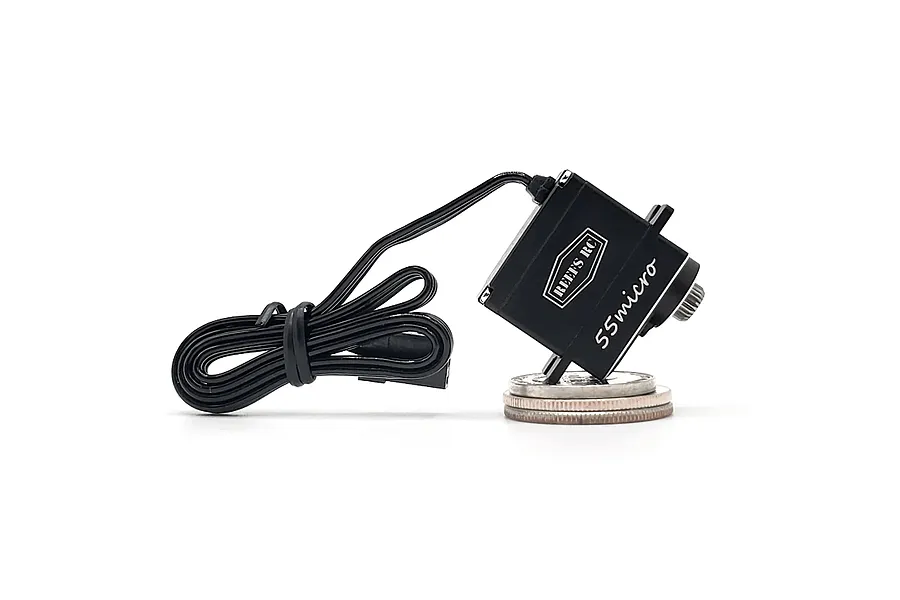

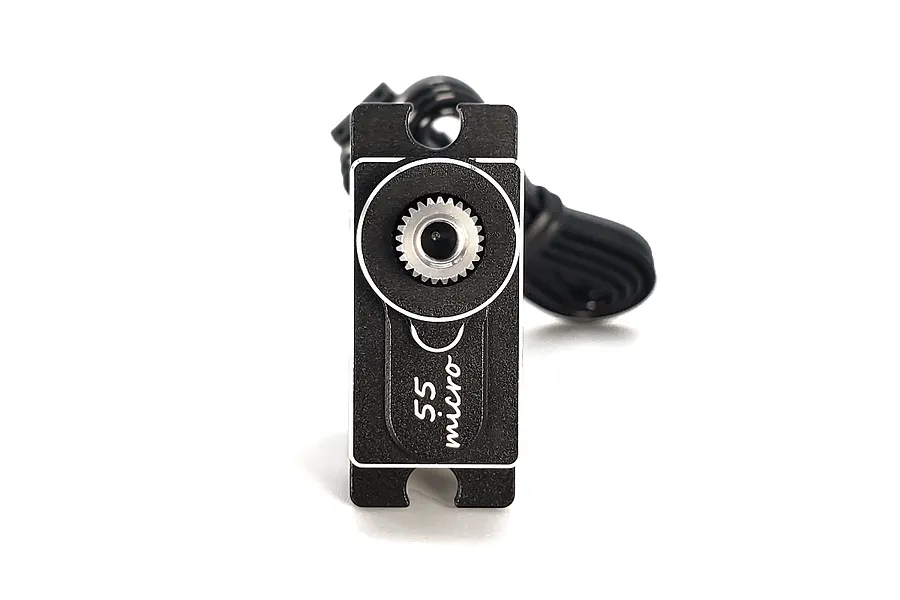

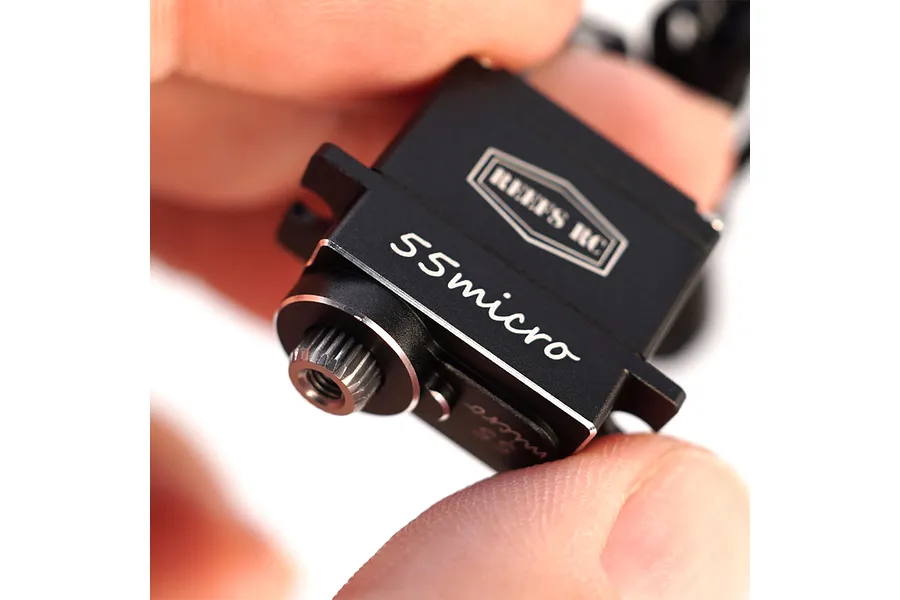

Reefs RC 55Micro Sub Micro 4kg 8.4V Waterproof Metal Geared Servo - Black
Reefs RC 55Micro Sub Micro 4kg 8.4V Waterproof Metal Geared Servo - Black
Brand:
Reefs RC
|
SKU: REEFS171
$124.41
Pay later with
Description
No description
Specifications
Servo
-
Height (A)
- 22mm
-
Length (E)
- 22.9mm
-
Width (F)
- 12.8mm
-
SizeConventionally sized servo names
- Sub Micro
-
Gear Material
- Steel
-
Waterproof Casing
- Yes
-
Servo Spline Count
- 25Tooth
-
Input Voltage Range
- 7.4V, 8.4V, 6V
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 3
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.11
-
7.4V Torque kg/cm
- 3.5
-
7.4V Sec/60 Degrees
- 0.09
-
8.4V Torque kg/cm
- 4
-
8.4V Sec/60 Degrees
- 0.08
-
Signal Type
- Digital
-
Drive Motor Type
- Brushed
-
Case Material
- Aluminium
-
Rotational Degrees
- 180°
