Savox SW-2210SG Standard 45kg 8.4V Metal Geared Waterproof Servo
Savox SW-2210SG Standard 45kg 8.4V Metal Geared Waterproof Servo
Savox SAV-SW-2210SG waterproof steel-geared servo — 45kg torque, IP67 rated, perfect for Monster Truck, Scaler and Crawler builds.
- 45kg torque
- IP67 waterproof (up to 30 min in water up to 3 feet deep)
- Operates directly on 7.4V — no external BEC required
- Precision steel gears with center aluminum case
This waterproof, steel-geared servo is perfect for Monster Truck and most Scaler and Crawler applications where a slightly taller servo can be fitted. Precision steel gears, stump-pulling torque, and waterproof to IP67 standards (operates for up to 30 minutes in water up to 3 feet deep).
- Center aluminum with nylon composite top and bottom case
- Operates directly on 7.4V without the need for an external BEC
- Precision ball bearings
Servos are powered by the ESC's output to the receiver. If using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience brown-outs where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver to smooth the current delivery. In some cases you may need to install an external BEC.
-

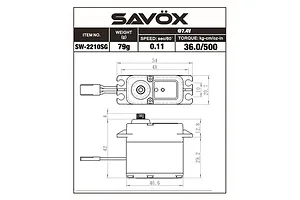

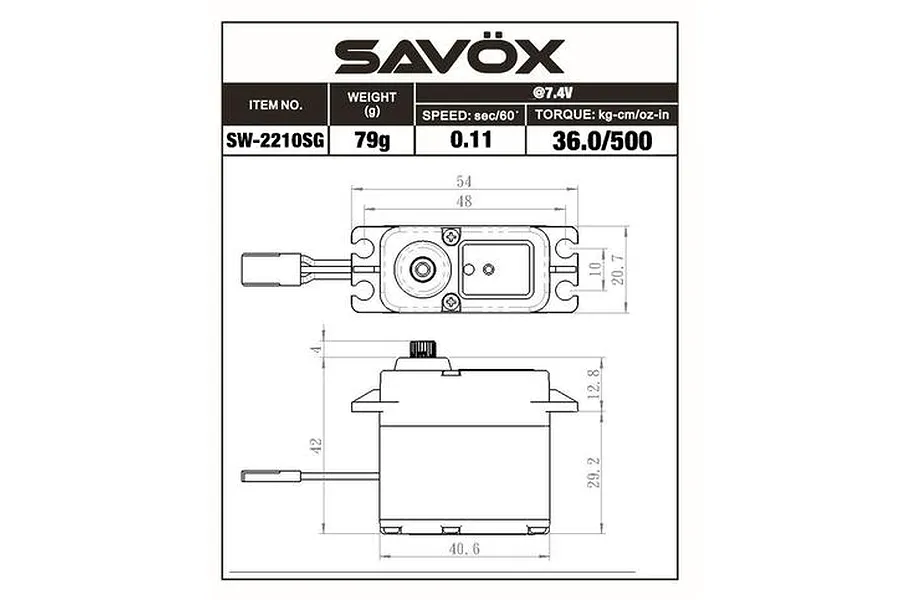

Total Height (A)
- 46mm
-
Body Width (B)
- 40.6mm
-
Below Mount (C)
- 29.2mm
-
Above Mount (D)
- 16.8mm
-
Total Length (E)
- 54mm
-
Total Width (F)
- 20.7mm
-
Height (A)
- 46mm
-
Body Length (B)
- 40.6mm
-
Bottom to Under Mount (C)
- 29.2mm
-
Top to Under Mount (D)
- 16.8mm
-
Length (E)
- 54mm
-
Width (F)
- 20.7mm
-
SizeConventionally sized servo names
- Standard
-
Gear Material
- Steel
-
Waterproof Casing
- Yes
-
Servo Spline Count
- 25Tooth
-
Input Voltage Range
- 7.4V, 8.4V
-
7.4V Torque kg/cm
- 40
-
7.4V Sec/60 Degrees
- 0.11
-
8.4V Torque kg/cm
- 45
-
8.4V Sec/60 Degrees
- 0.1
-
Signal Type
- Digital
-
Drive Motor Type
- Brushless
-
Case Material
- Metal
-
Rotational Degrees
- 120° (Normal)
