Savox SW-0241MG Plus 1/5 40kg 7.4v Metal Geared Waterproof Servo
1 out of 5 stars
2 out of 5 stars
3 out of 5 stars
4 out of 5 stars
5 out of 5 stars
$7.26
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

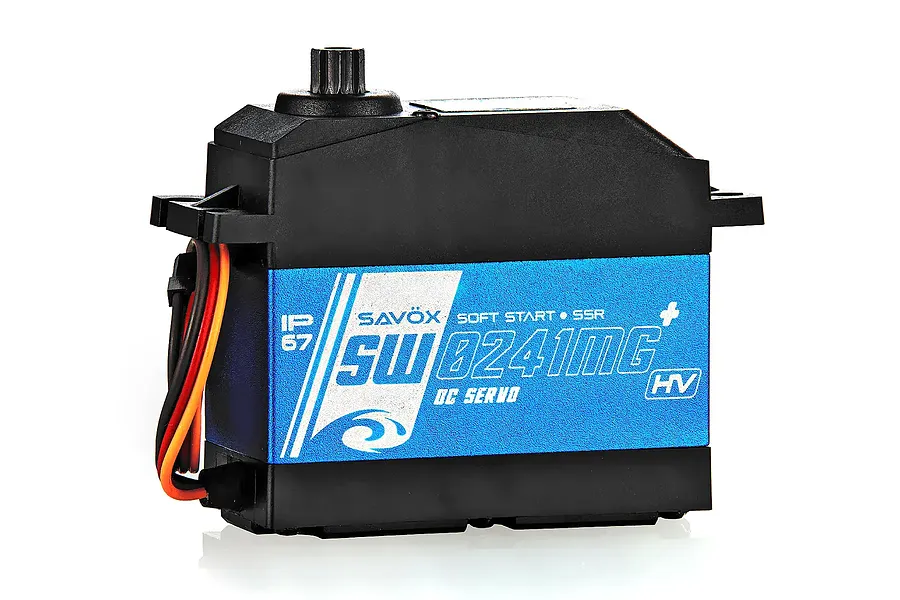

The metal-geared SW-0241MG Plus is a waterproof, large scale servo. It is capable of operating on high voltage and features Soft Start and Sanwa SSR compatibility.
- Waterproof casing
- Anodised Blue
- Metal gearing
Video
In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.
Servo Dimensions
- Total Height (A) = 67.7mm
- Body Width (B) = 65.8mm
- Below Mount (C) = 42.1mm
- Above Mount (D) = 17mm
- Total Length (E) = 81.8mm
- Total Width (F) = 30mm
| Description | QTY |
|---|---|
| SW-0241MG Plus 1/5 40kg 7.4v Metal Geared Waterproof Servo | 1 |
-
Servo Spline Count
- 15Tooth
-
Total Length
- 81.8mm
-
Total Width
- 30mm
-
Bottom to Under Mount
- 42.1mm
-
Top to Under Mount
- 17mm
-
Input Voltage Range
- 6V, 7.4V
-
Drive Motor Type
- Brushed
-
Rotational Degrees
- 120° (Normal)
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.21
-
Signal Type
- Digital
-
Case Material
- Aluminium
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 30
-
Gear Material
- Steel
-
Waterproof Casing
- Yes
-
7.4V Torque kg/cm
- 40
-
Total Height
- 67.7mm
-
7.4V Sec/60 Degrees
- 0.17
-
Body Length
- 65.8mm
-
SizeConventionally sized servo names
- 1/5
