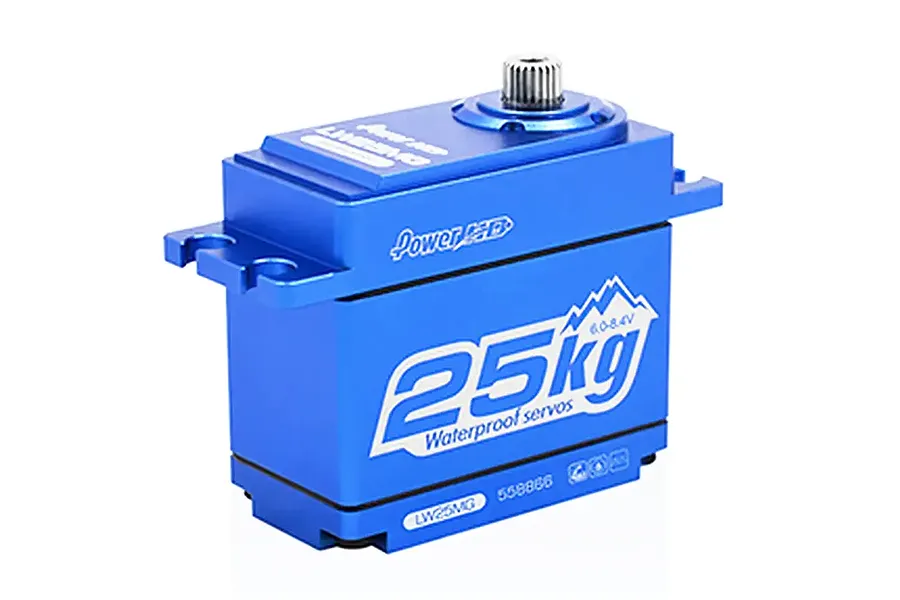

Power HD Standard LW-25MG 25kg 7.4v Metal Geared Waterproof Servo
Videos
Power HD Standard LW-25MG 25kg 7.4v Metal Geared Waterproof Servo
1 out of 5 stars
2 out of 5 stars
3 out of 5 stars
4 out of 5 stars
5 out of 5 stars
$7.26
1 out of 5 stars
2 out of 5 stars
3 out of 5 stars
4 out of 5 stars
5 out of 5 stars
$13.39
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
FitmentIf fitted to a Traxxas TRX-4/6, it is unlikely the stock electronics will be able to support the increased power demands of this servo. It is strongly recommended to use an external BEC.
Power HD LW-25MG Servo Specifications
Total Height (A) = 44mm
Body Width (B) = 41mm
Below Mount (C) = 28mm
Above Mount (D) = 16mm
Total Length (E) = 54mm
Total Width (F) = 20.5mm
Learn how to install a steering servo correctly to increase steering performance, and avoid stripping your servo gears out.
-
Height (A)
- 44mm
-
Body Length (B)
- 41mm
-
Bottom to Under Mount (C)
- 28mm
-
Top to Under Mount (D)
- 16mm
-
Length (E)
- 54mm
-
Width (F)
- 20.5mm
-
SizeConventionally sized servo names
- Standard
-

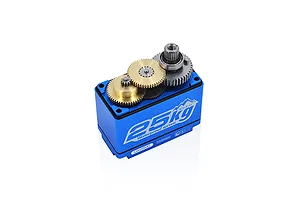

Gear Material
- Metal
-
Waterproof Casing
- Yes
-
Servo Spline Count
- 25Tooth
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 25
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.16
-
Signal Type
- Digital
