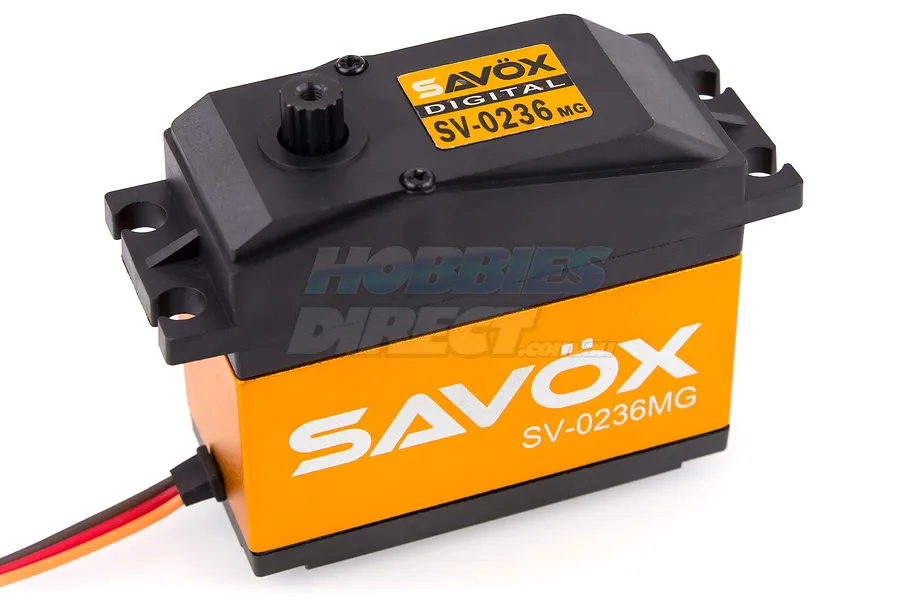

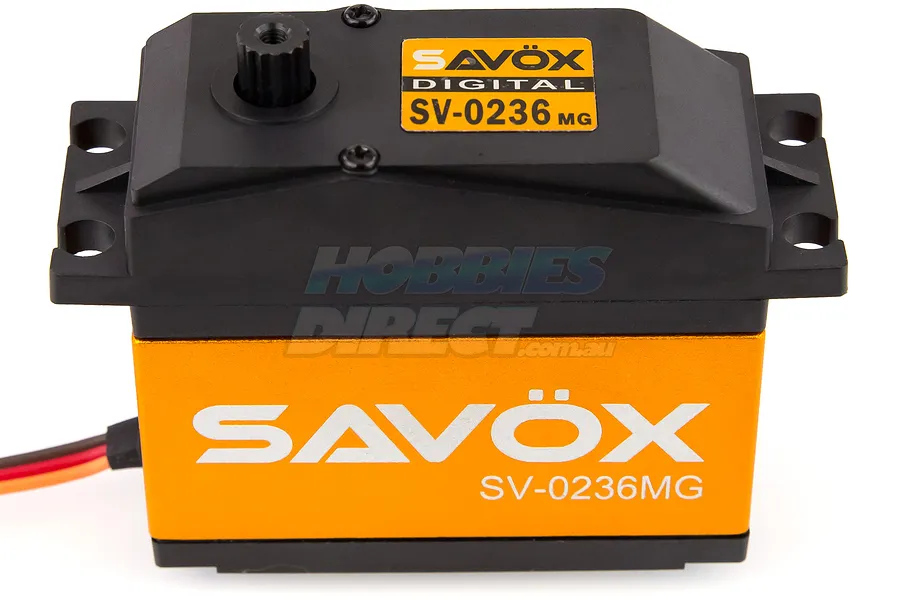

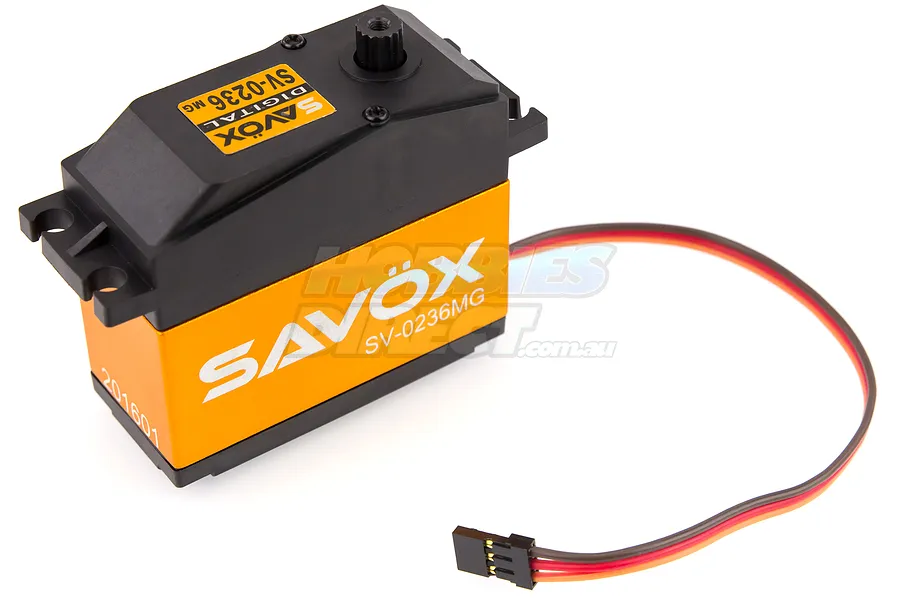

Savox 1/5 40kg 7.4V Metal Geared Servo
1 out of 5 stars
2 out of 5 stars
3 out of 5 stars
4 out of 5 stars
5 out of 5 stars
$7.03
1 out of 5 stars
2 out of 5 stars
3 out of 5 stars
4 out of 5 stars
5 out of 5 stars
$6.52
1 out of 5 stars
2 out of 5 stars
3 out of 5 stars
4 out of 5 stars
5 out of 5 stars
$96.32
 Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
SAV-SV-0236MG Servo SpecificationsTotal Height (A) = 63.9mm
Body Width (B) = 65.8mm
Below Mount (C) = 40.4mm
Above Mount (D) = 23.5mm
Total Length (E) = 81.8mm
Total Width (F) = 30mm
-
Height (A)
- 63.9mm
-
Body Length (B)
- 65.8mm
-
Bottom to Under Mount (C)
- 40.4mm
-
Top to Under Mount (D)
- 23.5mm
-
Length (E)
- 81.8mm
-
Width (F)
- 30mm
-
Gear Material
- Metal
-
Waterproof Casing
- No
-
Servo Spline Count
- 15Tooth
-
Input Voltage Range
- 6VV, 7.4VV
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 30
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.21
-
7.4V Torque kg/cm
- 40
-
7.4V Sec/60 Degrees
- 0.17
-
Signal Type
- Digital
-
Case Material
- Metal
-
Rotational Degrees
- 120° (Normal)
