Losi

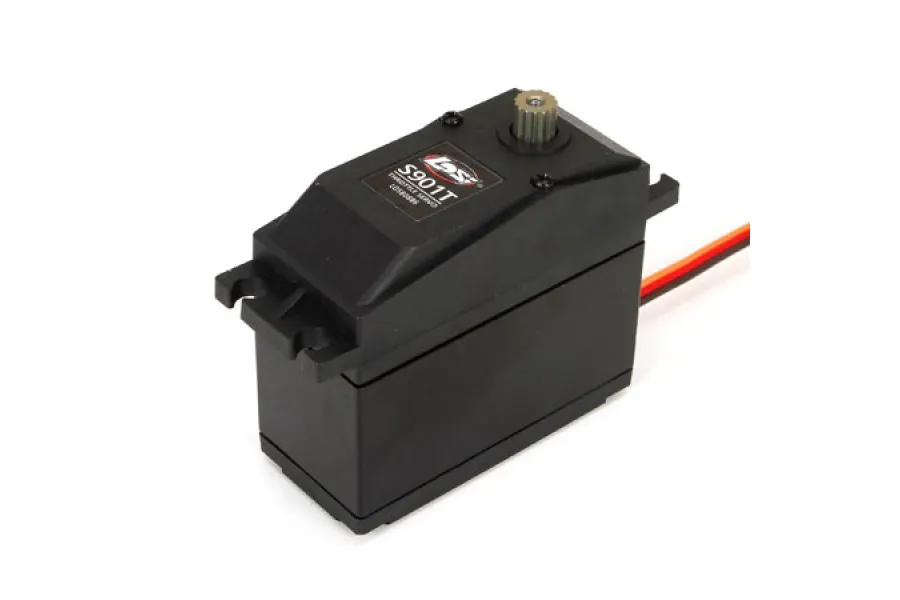

Losi 1/5 35kg 7.4v Metal Geared Throttle Servo S901T

  • 1/5

Part no. LOSB0886

1 in stockNo reviews yet

Now $186.57was $201.24 You Save $14.67

Sale now on

or 4 fortnightly payments of $46.64 with afterpay or PayPal, or zip

Want more than 1? and we'll email you when they're here.

  • 1 in stock · Ships Wednesday · order by Wednesday

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Will it fit?

Check fit: add your vehicle to My GarageFits 12 vehicles

Overview

Note

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Specifications

Servo

Servo
SizeConventionally sized servo names1/5
Gear MaterialMetal
Servo Spline Count15Tooth
Case MaterialMetal
Height (A)63.9mm
Body Length (B)65.8mm
Bottom to Under Mount (C)40.4mm
Top to Under Mount (D)23.5mm
Length (E)81.8mm
Width (F)30mm
Drive Motor TypeBrushed
Rotational Degrees120° (Normal)
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline35
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.19
Signal TypeDigital
