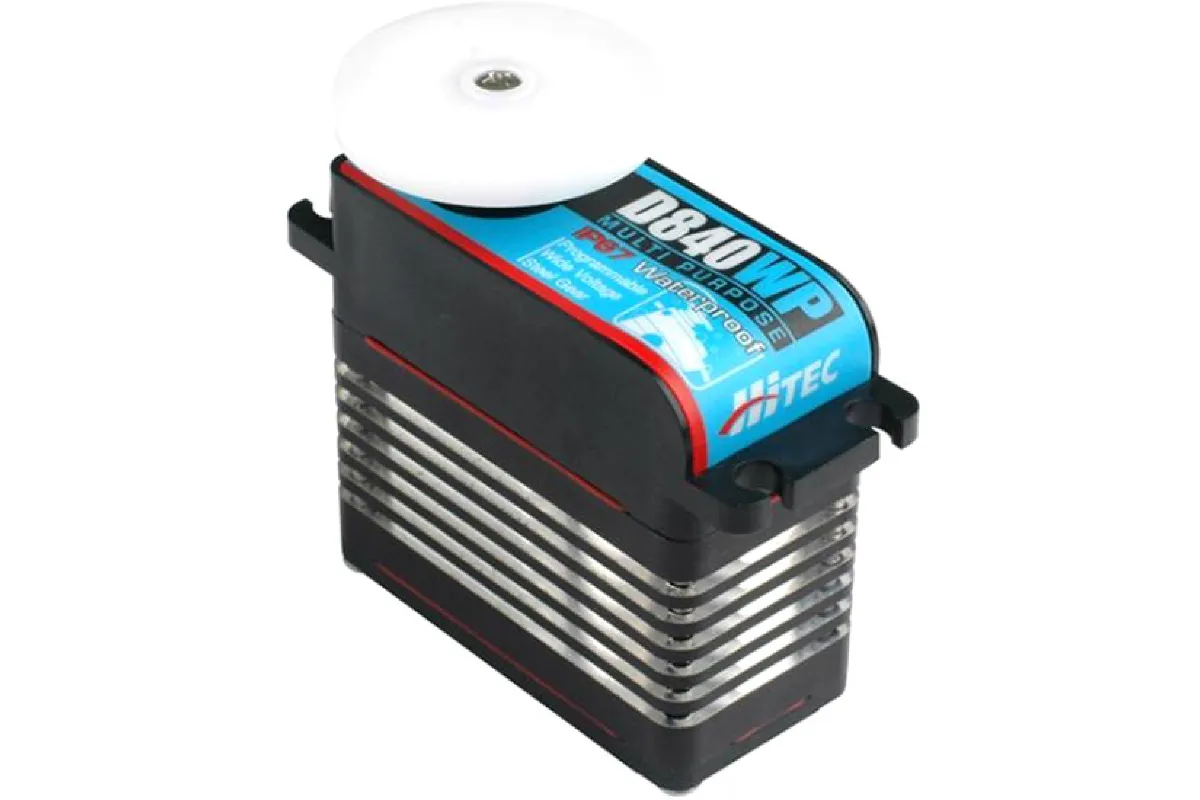

Hitec D840WP 1/5 30kg 7.4v Metal Geared Servo
Brand: Hitec
|
SKU: HRC36840
Description
 Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
Specifications
- Total Height (A) = 70.3mm
- Body Width (B) = 66mm
- Below Mount (C) = 46mm
- Above Mount (D) = 20mm
- Total Length (E) = 83.4mm
- Total Width (F) = 31.4mm
Specifications
Servo | |
---|---|
Servo Size: | 1/5 |
Gear Material: | Metal |
Case Material: | Metal |
Waterproof Casing: | Yes |
Rotational Degrees: | 120o (Normal) |
Signal Type: | Digital |
6.0V Torque kg/cm: | 30 |
6.0V Sec/60 Degrees: | 0.14 |
"A" Measurement: | 70.3 |
"B" Measurement: | 66 |
"C" Measurement: | 46 |
"D" Measurement: | 20 |
"E" Measurement: | 83.4 |
"F" Measurement: | 31.4 |
