Hitec

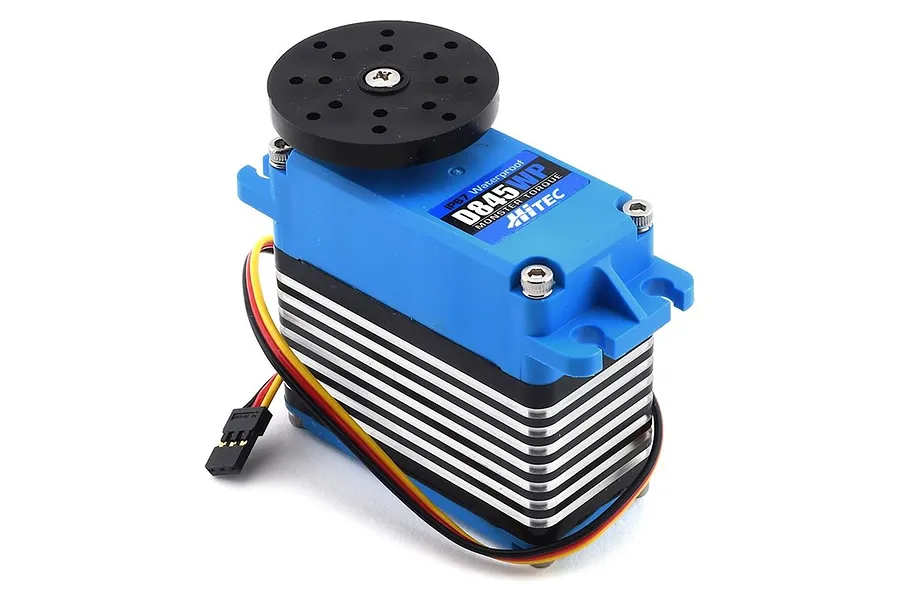

Hitec D845WP 1/5 50kg 7.4v Metal Geared Servo

  • 1/5

Part no. HRC36845

1 in stockNo reviews yet

$217.07

or 4 fortnightly payments of $54.27 with afterpay or PayPal, or zip

Add it to My Garage

Want more than 1? and we'll email you when they're here.

  • 1 in stock · Ships Thursday · order by Thursday

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Part Support

Replacement & upgrade parts that fit this model

Spare partsUpgradesAll parts

Overview

Note

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

Specifications

Total Height (A)70.3mm
Body Width (B)66mm
Below Mount (C)46mm
Above Mount (D)20mm
Total Length (E)83.4mm
Total Width (F)31.4mm

Servo

Servo
SizeConventionally sized servo names1/5
Gear MaterialMetal
Waterproof CasingYes
Case MaterialMetal
Height (A)70.3mm
Body Length (B)66mm
Bottom to Under Mount (C)46mm
Top to Under Mount (D)20mm
Length (E)83.4mm
Width (F)31.4mm
Rotational Degrees120° (Normal)
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline50
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.21
Signal TypeDigital
