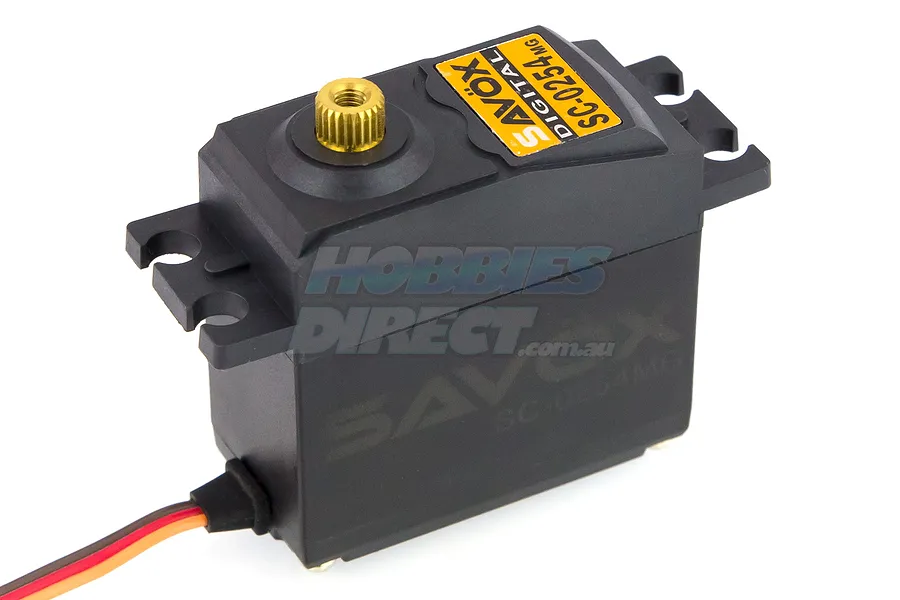

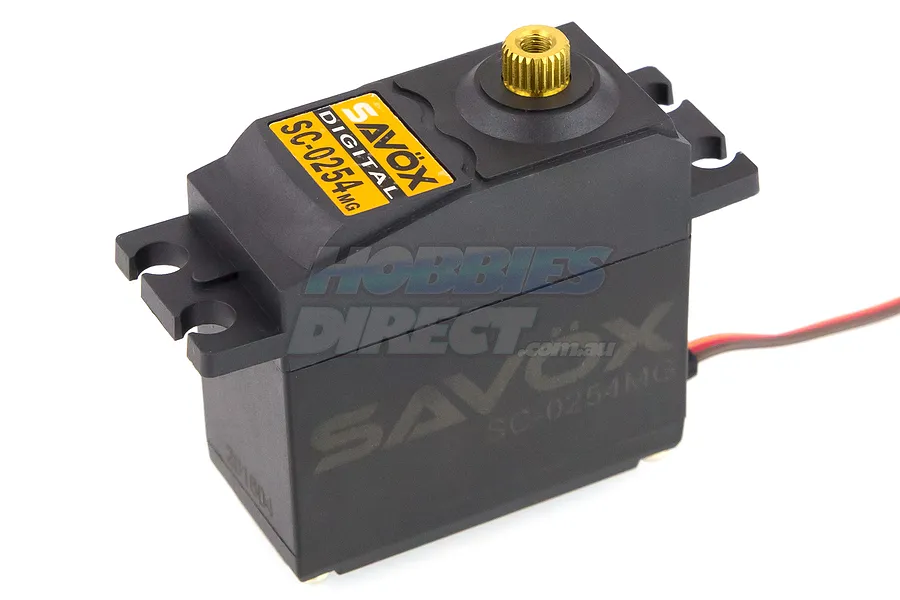

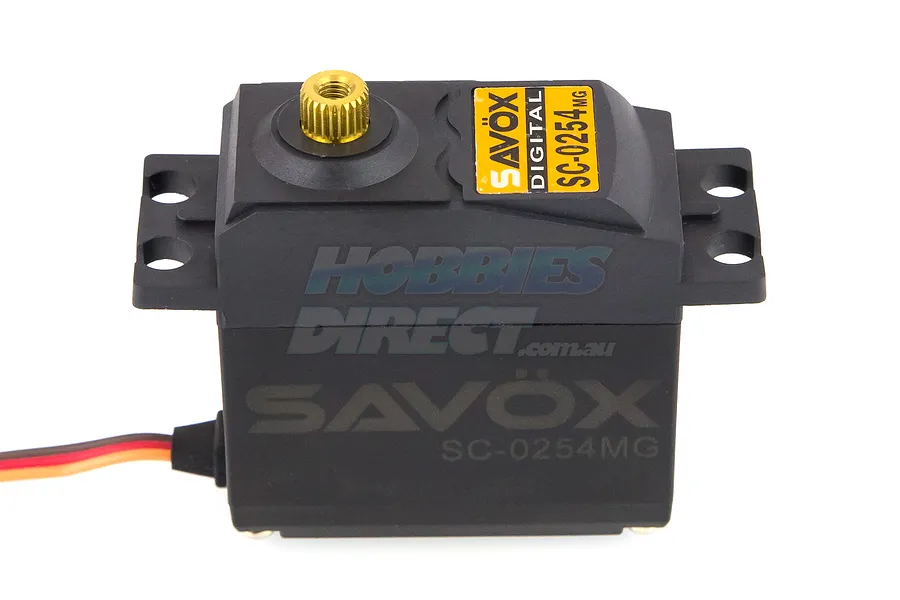

Savox 7.2kg Standard Plus Metal Geared Servo
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
The Savox SC-0254MG Plus is a high-performance digital servo equipped with metal gears and designed to be suitable for multiple RC applications. It serves as an ideal upgrade for standard, plastic-geared servos offering limited torque capabilities. Being a part of the "Plus" series its performance has been improved with Soft Start for smoother operation and Sanwa SSR compatibility for expanded compatibility.
- The metal gearing provides incredible strength and longevity
- Durable plastic casing keeps weight down without sacrificing strength
- Plus series includes Soft start and Sanwa SSR compatibility
- Ideal for 30-60 sized aircraft and in some smaller 1/10 on road cars
- Spline size: 25T Spline
- Servo Technology: Digital
- Operating Voltage: 4.8V - 6V
- Motor Type: Brushed Motor
- Weight: 49g
- Gear Type: Metal Gears
- Refresh Rate: 240 Hz
- Servo Case: Plastic
- Torque @ 4.8V: 6.9 kg-cm (86.1 oz-in)
- Torque @ 6V: 7.2 kg-cm (100 oz-in)
- Speed @ 4.8V : 0.19 sec/60 deg
- Speed @ 6V: 0.14 sec/60 deg

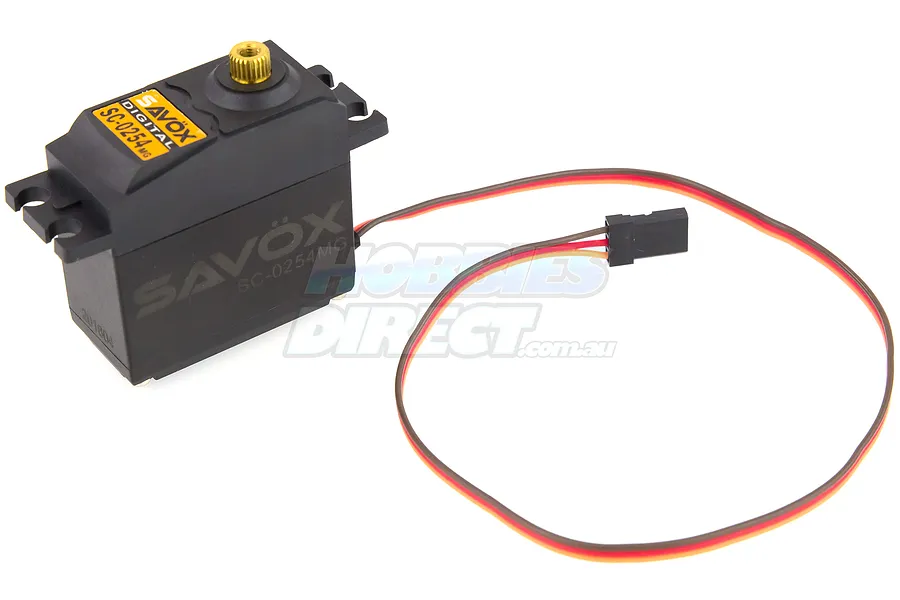

- Connector type: JR/Futaba
- Total Height (A) = 45.15mm
- Body Width (B) = 40.7mm
- Below Mount (C) = 28.3mm
- Above Mount (D) = 16.85mm
- Total Length (E) = 55.4mm
- Total Width (F) = 20mm
In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.
| Description | QTY |
|---|---|
| Savox 7.2kg Standard Plus Metal Geared Servo | 1 |
-
Total Width
- 20mm
-
Servo Spline Count
- 25Tooth
-
Top to Under Mount
- 16.85mm
-
Total Length
- 55.4mm
-
Body Length
- 40.7mm
-
Bottom to Under Mount
- 28.3mm
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.14
-
Total Height
- 45.15mm
-
Case Material
- Metal
-
Rotational Degrees
- 120° (Normal)
-
Signal Type
- Digital
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 7.2
-
Gear Material
- Metal
-
Waterproof Casing
- No
-
SizeConventionally sized servo names
- Standard
