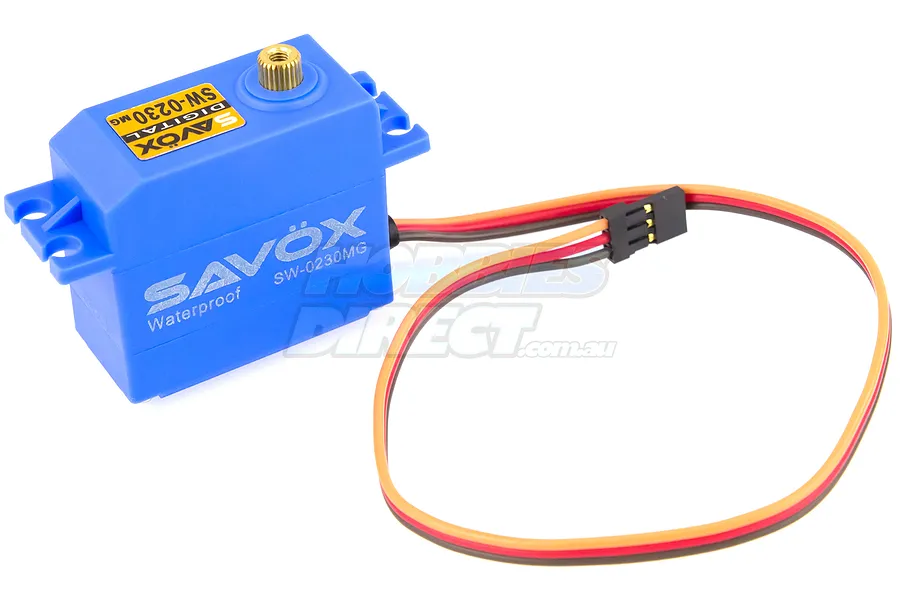

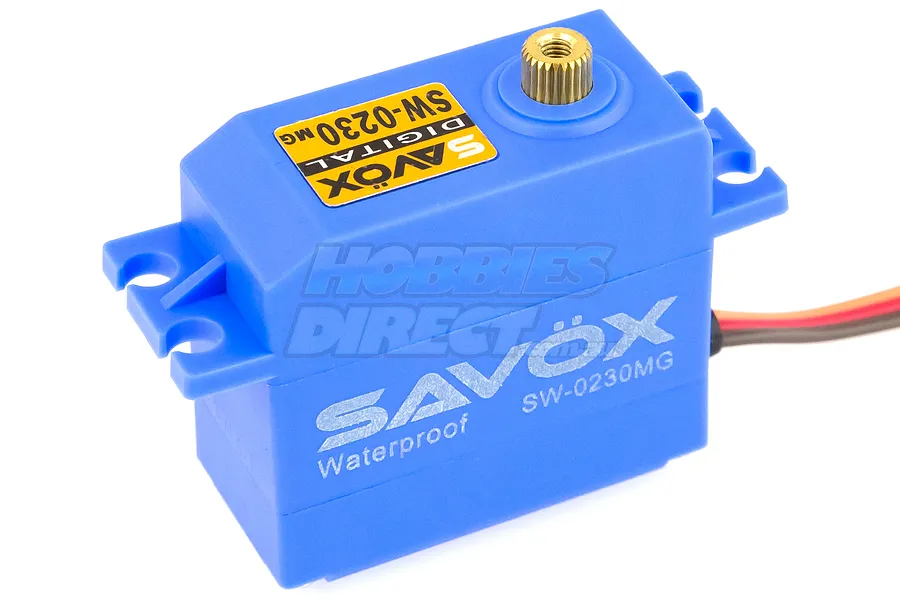

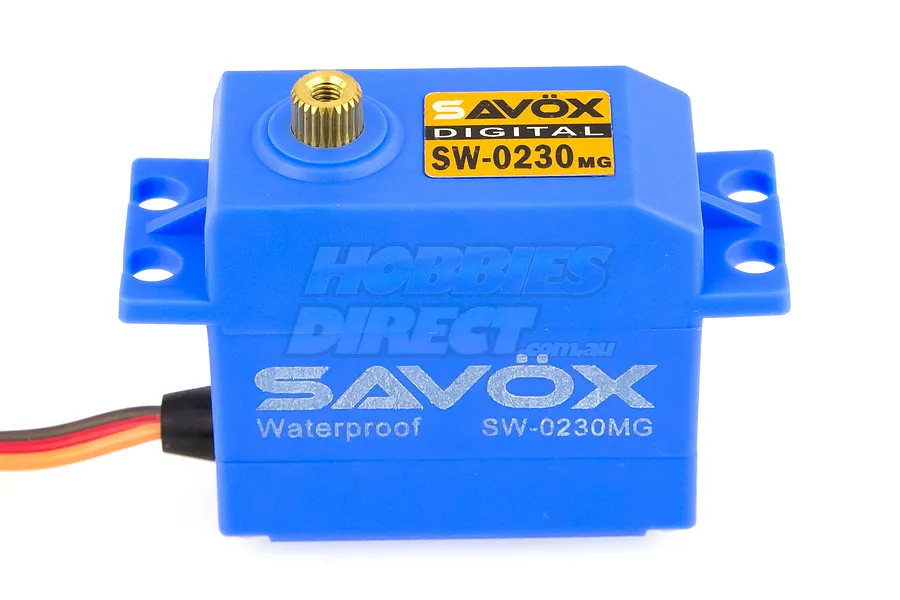

Savox SW-0230MG Plus Standard 8kg Metal Geared Waterproof Servo

Brand: Savox | SKU: SW-0230MG-PLUS

1 in stock

write a review

$71.67

Pay later with

Want more than 1?

and we'll notify you when the stock is here.

Description

&nbspServos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

SAV-SW-0230MG Servo Specifications

Total Height (A) = 42.85mm
Body Width (B) = 41.8mm
Below Mount (C) = 25.6mm
Above Mount (D) = 17.25mm
Total Length (E) = 56.5mm
Total Width (F) = 20.2mm

Specifications

Servo

Height (A): 42.85mm
Body Length (B): 41.8mm
Bottom to Under Mount (C): 25.6mm
Top to Under Mount (D): 17.25mm
Length (E): 56.5mm
Width (F): 20.2mm
Size Conventionally sized servo names: Standard
Gear Material: Metal
Waterproof Casing: Yes
Servo Spline Count: 25Tooth
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 8
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.13
Signal Type: Digital
Case Material: Plastic
Rotational Degrees: 120° (Normal)
