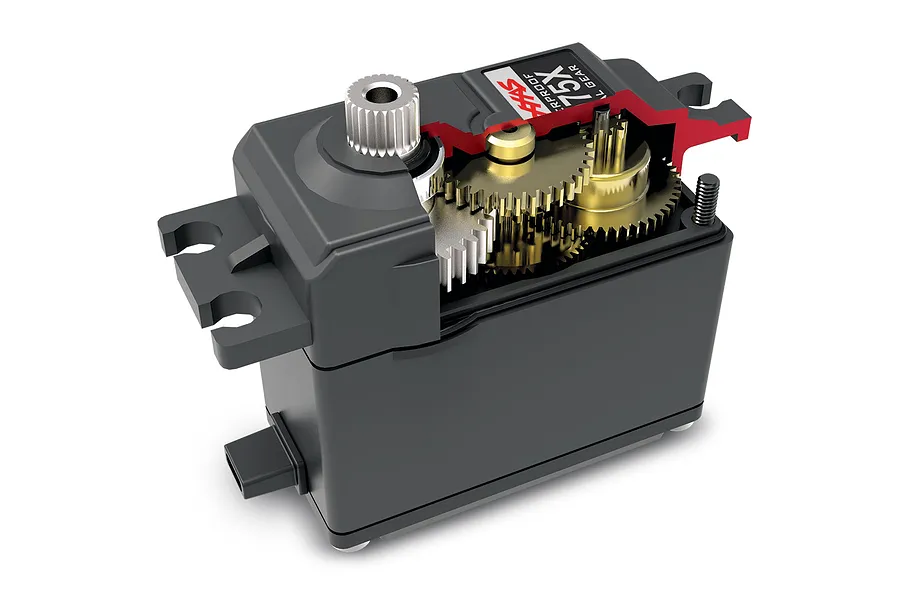

Traxxas High Torque Metal Geared Waterproof 9kg Servo

Brand: Traxxas | SKU: 2075X

1 in stock

write a review

$115.80

Pay later with

Want more than 1?

and we'll notify you when the stock is here.

We'll send it today

When ordered within the next hms

Shop replacement & upgrade parts for this model

Shop Parts

Loading compatibility information...

Description

&nbspServos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

TRA-2075X Servo Specifications

Total Height (A) = 42.5mm
Body Width (B) = 40.2mm
Below Mount (C) = 27mm
Above Mount (D) = 15.5mm
Total Length (E) = 54.8mm
Total Width (F) = 19.7mm

Specifications

Servo

Height (A): 42.5mm
Body Length (B): 40.2mm
Bottom to Under Mount (C): 27mm
Top to Under Mount (D): 15.5mm
Length (E): 54.8mm
Width (F): 19.7mm
Size Conventionally sized servo names: Standard
Gear Material: Metal
Waterproof Casing: Yes
Servo Spline Count: 25Tooth
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 9
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.17
Signal Type: Digital
Drive Motor Type: Brushed
Case Material: Plastic
Rotational Degrees: 120° (Normal)
