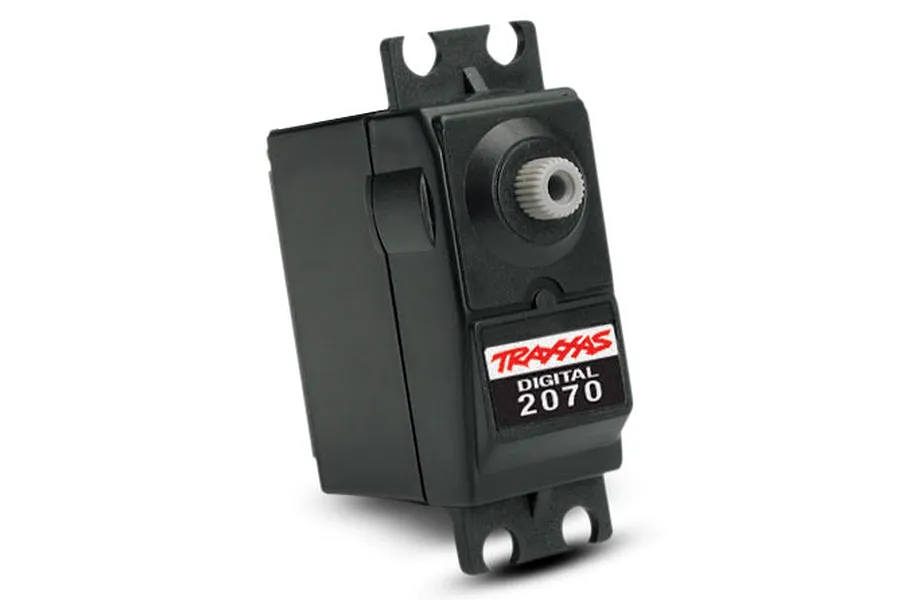

Traxxas Standard 9kg Servo

Brand: Traxxas | SKU: 2070

1 in stock

write a review

$84.76

Pay later with

Want more than 1?

and we'll notify you when the stock is here.

Shop replacement & upgrade parts for this model

Shop Parts

Loading compatibility information...

Description

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

TRA-2070 Servo Specifications

Total Height (A) = 42mm
Body Width (B) = 40.3mm
Below Mount (C) = 27mm
Above Mount (D) = 15mm
Total Length (E) = 54.8mm
Total Width (F) = 20mm

Specifications

Servo

Total Width: 20mm
Servo Spline Count: 25Tooth
Top to Under Mount: 15mm
Total Length: 54.8mm
Body Length: 40.3mm
Bottom to Under Mount: 27mm
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.17
Total Height: 42mm
Case Material: Plastic
Rotational Degrees: 120° (Normal)
Signal Type: Digital
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 9
Gear Material: Plastic
Waterproof Casing: No
Size Conventionally sized servo names: Standard
