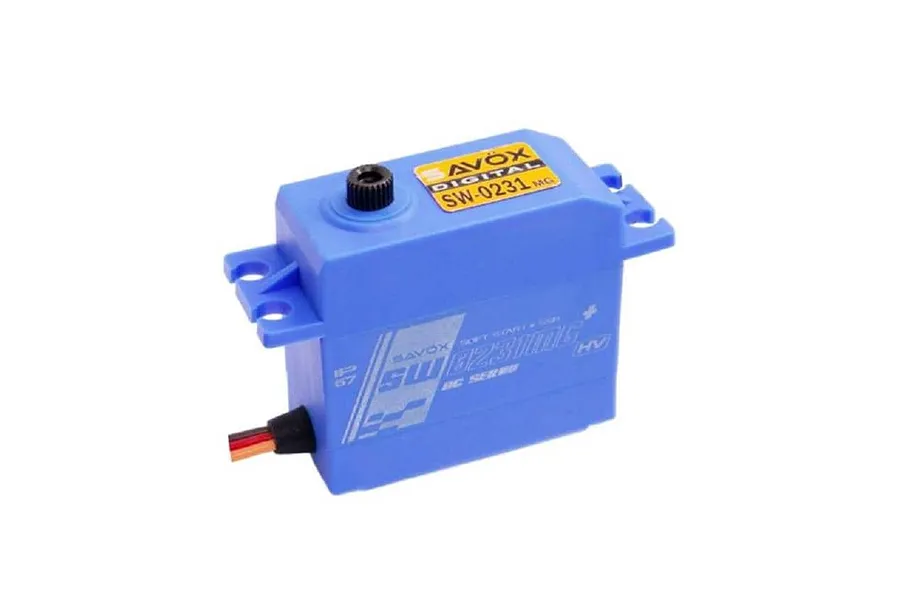

Savox Blue Standard 25kg 7.4v HV Metal Geared Waterproof Servo

Videos

Savox Blue Standard 25kg 7.4v HV Metal Geared Waterproof Servo

Brand: Savox | SKU: SW-0231MG-PLUS

2 in stock

write a review

$78.78

Pay later with

Recommended Products

Power HD Servo Glitch Buster Receiver Capacitor

2 reviews

$7.26

Power HD Black Aluminium 25T Servo Horn

3 reviews

$8.62

Description

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

The SW-0231MG-PLUS is a budget friendly, waterproof, high torque, digital servo in a slightly taller case than most standard sizes. This is a great upgrade if your looking to drive your RC vehicle in any condition.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

How To: Install a Servo

In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.

Features

Metal gearing ensures long life, durability, and performance
Waterproof
High-voltage version of the SW-0231MG with soft start and Sanwa SSR mode

Servo Dimensions

Total Height (A) = 45.75mm
Body Width (B) = 41.8mm
Below Mount (C) = 30.5mm
Above Mount (D) = 17.25mm
Total Length (E) = 56.5mm
Total Width (F) = 20.2mm

Specifications

Torque(6.0v): 15kg-cm (208.3oz-in)
Torque(7.4v): 25kg-cm (347oz-in)
Speed: 0.17 sec (6v) ? 0.15 sec (7.4v)
Operating Voltage: 7.4v
Weight: 66g (2.32oz)

Bearing Type: 2 x Ball Bearing
Gear Type: Metal
Operating Temperature: -10° - 50°C (14° - 122°F)
Refresh Rate: 240 Hz
Size: 41.8x20.2x42.9mm (1.64x0.79x1.68in)

Included items

Description	QTY
SW-0231MG Plus Standard 25kg 7.4v Metal Geared Waterproof Servo	1

Specifications

Servo

Servo Spline Count: 25Tooth
Total Length: 56.5mm
Total Width: 20.2mm
Bottom to Under Mount: 30.5mm
Top to Under Mount: 17.25mm
Input Voltage Range: 6VV, 7.4VV
Drive Motor Type: Brushed
Rotational Degrees: 120° (Normal)
6V Sec/60 Degrees Seconds per 60 degrees of rotation: 0.17
Signal Type: Digital
Case Material: Plastic
6V Torque kg/cm Kilograms of torque at 25mm away from the center of the spline: 15
Gear Material: Metal
Waterproof Casing: Yes
7.4V Torque kg/cm: 25
Total Height: 45.75mm
7.4V Sec/60 Degrees: 0.15
Body Length: 41.8mm
Size Conventionally sized servo names: Standard
