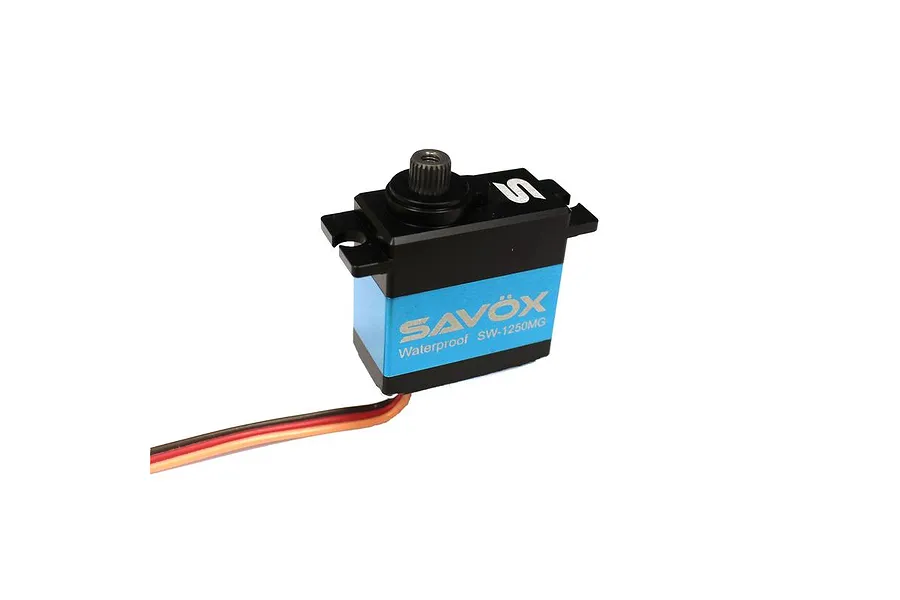

Savox Blue Aluminium 8kg 8.4v Mini Metal Geared Waterproof Servo

Brand: Savox | SKU: SW-1250MG-PLUS
Videos
1 in stock

$134.71

Description

 Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.

The SW-1250MG Plus is a top-of-the-line waterproof, ultra-torque digital mini servo specifically designed as the ultimate upgrade for Traxxas 1/16 scale applications. Its inclusion in the "Plus" series elevates its capabilities with the addition of Soft Start for smoother operation and Sanwa SSR compatibility for expanded compatibility.


Features
  • The metal gearing provides incredible strength and longevity
  • The full aluminium design helps provide a high level of protection and assists in keeping the servo cool
  • Plus series includes Soft start and Sanwa SSR compatibility
  • Ideal as a replacement for Traxxas 1/16 RC vehicles

Specifications
  • Spline size: 25T
  • Servo Technology: Digital
  • Operating Voltage: 6V - 8.4V
  • Motor Type: Coreless
  • Weight: 29.6g
  • Gear Type: Metal Gears
  • Refresh Rate: N/A
  • Servo Case: Plastic
  • Torque @ 6V: 5 kg-cm (69.4 oz-in)
  • Torque @ 7.4V: 8 kg-cm (111.1 oz-in)
  • Torque @ 8.4V: 10 kg-cm (138.9 oz-in)
  • Speed @ 6V: 0.12 sec/60 deg
  • Speed @ 7.4V: 0.10 sec/60 deg
  • Speed @ 8.4V : 0.08 sec/60 deg
  • Connector type: JR/Futaba

Servo Specifications
  • Total Height (A) = 36.85mm
  • Body Width (B) = 29.5mm
  • Below Mount (C) = 23.85mm
  • Above Mount (D) = 13mm
  • Total Length (E) = 40mm
  • Total Width (F) = 15mm
RC Hobby Servo Specifications

How To: Install a Servo

In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.

Included items
Description QTY
Savox Blue Aluminium 8kg 8.4v Mini Metal Geared Waterproof Servo 1
Specifications
Servo
Size: Mini
Sec/60 Degrees: 0.12
6V Torque kg/cm: 5
7.4V Sec/60 Degrees: 0.10
7.4V Torque kg/cm: 8
8.4V Sec/60 Degrees: 0.08
8.4V Torque kg/cm: 10
Servo Spline Count: 25tooth
Gear Material: Metal
Waterproof Casing: Yes
Signal Type: Digital
Input Voltage Range: 6V, 7.4V, 8.4V
Drive Motor Type: Coreless
Case Material: Metal
Rotational Degrees: 120° (Normal)
Total Height: 36.85mm
Body Length: 29.5mm
Bottom to Under Mount: 23.85mm
Top to Under Mount: 13mm
Total Length: 40mm
Total Width: 15mm
