Savox

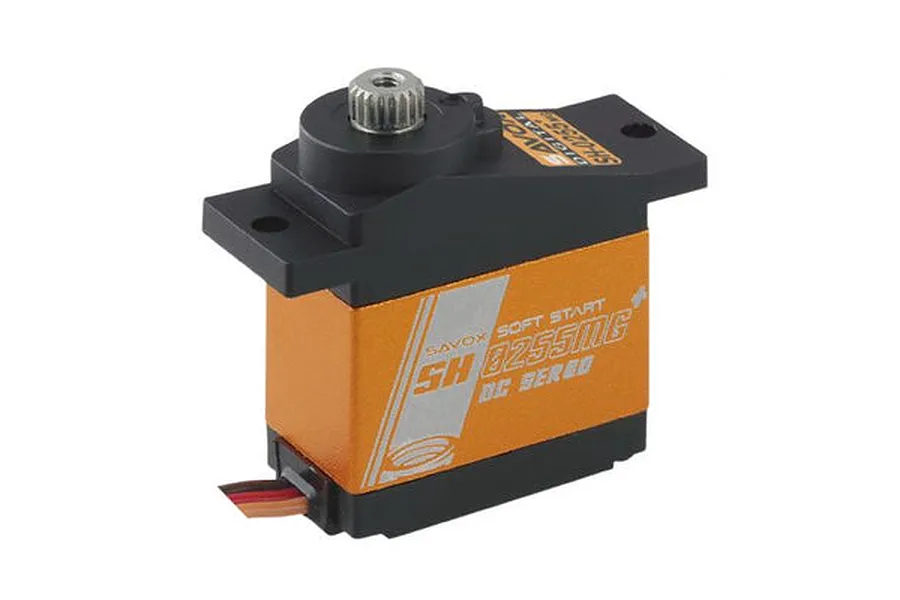

Savox Orange Aluminium 3.9kg 6v Plus Micro Metal Geared Servo

Part no. SH-0255MG-PLUS

2 in stockWrite a review

Videos

$46.74

or 4 fortnightly payments of $11.68 with afterpay

Savox SH-0255MG Plus orange aluminium micro servo — 3.9 kg-cm torque at 6V, metal gears, digital technology with Soft Start and Sanwa SSR compatibility.

  • Digital micro servo with torque comparable to larger servos (3.9 kg-cm @ 6V)
  • Orange anodised aluminium centre case for protection and heat dissipation
  • Metal gears for enhanced durability over plastic alternatives
  • Soft Start and Sanwa SSR compatible
  • Suitable for small aeroplanes and 450 size helicopters

Pay later with afterpay zip PayPal

  • 2 in stock · Ships Monday · order by Monday

  • Checking delivery dates…

  • 60-day returns · 12,000+ 5-star reviews · 03 5292 1101 ·

Videos

Overview

Conquer demanding tasks with the Savox SH-0255MG Plus micro servo. This powerhouse packs a punch with torque comparable to larger servos, making it ideal for high-performance applications. Metal gears ensure long-lasting durability, and digital technology delivers accurate and responsive control. Soft Start and Sanwa SSR compatibility add to its functionality and convenience.

Note: Servos are powered by the ESC's output to the receiver. If you are using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience brown-outs where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver to smooth the current delivery. However, in some cases, you may need to install an external BEC.

Features

  • Uniquely anodised in orange
  • Aluminium centre case helps protect and keep the servo cool
  • Features soft start and Sanwa SSR compatibility
  • Metal gearing for enhanced durability compared to plastic geared servos
  • Suitable for small aeroplanes and 450 size helicopters

In the box

  • 1x Savox Orange Aluminium 3.9kg 6v Plus Micro Metal Geared Servo

Specifications

Spline size21T Spline
Servo TechnologyDigital
Operating Voltage4.8V – 6V
Motor TypeCoreless Motor
Weight64g
Gear TypeMetal Gears
Refresh Rate333 Hz
Servo CaseOrange Aluminium Middle w/ Plastic Top & Bottom
Torque @ 4.8V3.1 kg-cm (43.1 oz-in)
Torque @ 6V3.9 kg-cm (54.2 oz-in)
Speed @ 4.8V0.16 sec/60 deg
Speed @ 6V0.13 sec/60 deg
Connector typeJR/Futaba
Total Height (A)32.3mm
Body Width (B)22.8mm
Below Mount (C)20.82mm
Above Mount (D)11.48mm
Total Length (E)32.4mm
Total Width (F)12mm

Servo

Servo
SizeConventionally sized servo namesMicro
Gear MaterialMetal
Servo Spline Count21Tooth
Waterproof CasingNo
Input Voltage Range4.8V, 6V
Case MaterialAluminium
Height (A)32.3mm
Body Length (B)22.8mm
Bottom to Under Mount (C)20.82mm
Top to Under Mount (D)11.48mm
Length (E)32.4mm
Width (F)12mm
Drive Motor TypeBrushed
Rotational Degrees120° (Normal)
4.8V Torque kg/cm3.1
4.8V Sec/60 Degrees0.16
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline3.9
6V Sec/60 DegreesSeconds per 60 degrees of rotation0.13
Signal TypeDigital
