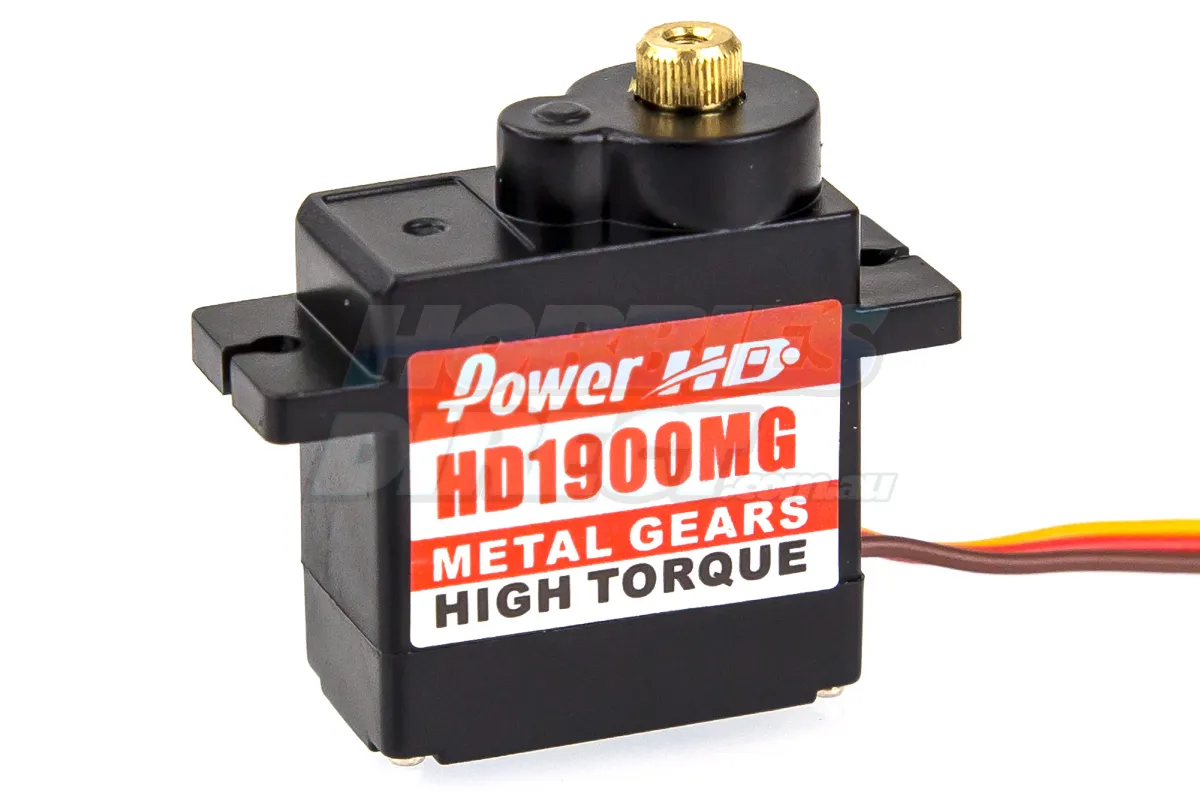

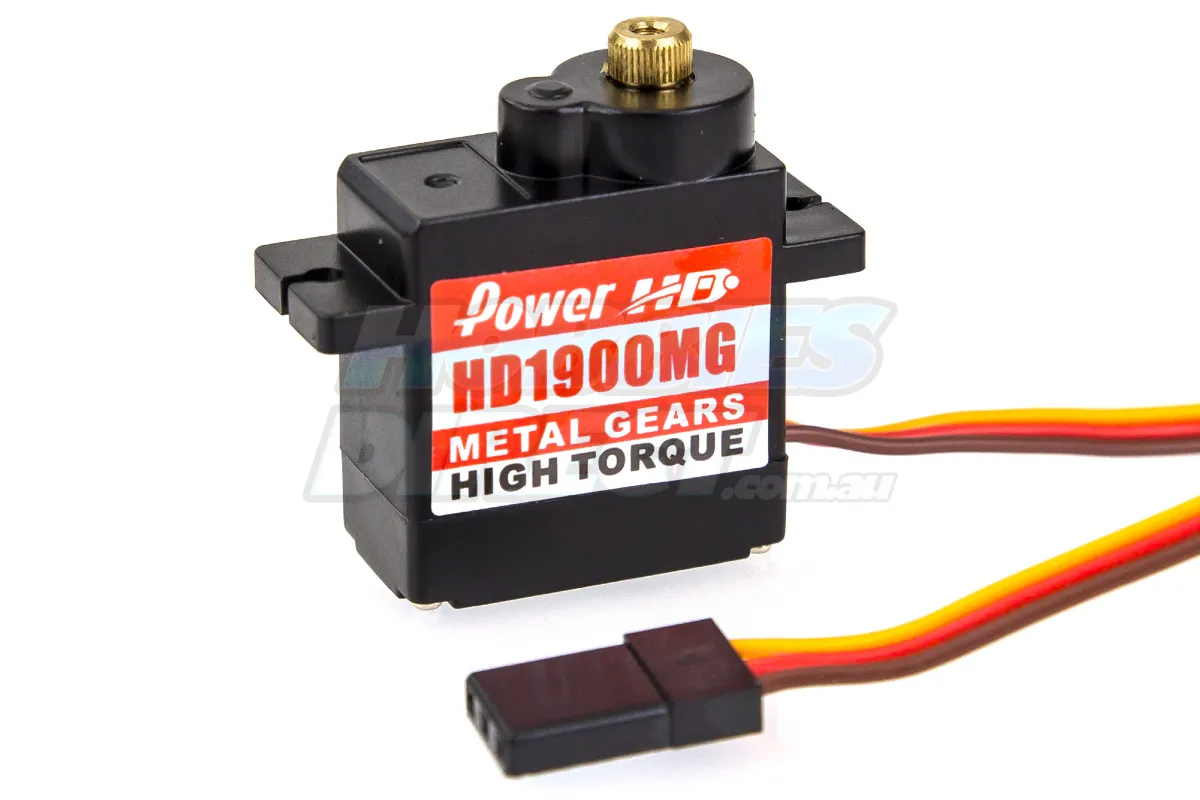

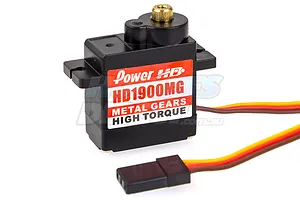

Power HD Micro 1900MG 1.5kg Metal Geared Servo
Videos
Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC.
The Power HD 1900MG is a high-quality servo with a torque of 1.5 kg-cm (20.8 oz/in) at 6.0V and a speed of 0.08 sec. It operates at a voltage range of 4.8 ~ 6.0 DC Volts and weighs only 14.0 g (0.49 oz). It features a DC Motor and Copper Gear Type.
- Micro sized for small applications
- Copper gears
- Fast speed of 0.08/sec at 6V
In this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears.
Servo Dimensions
- Total Height (A) = 30mm
- Body Width (B) = 23mm
- Below Mount (C) = 16mm
- Above Mount (D) = 14mm
- Total Length (E) = 32.5mm
- Total Width (F) = 12mm
- Torque(4.8V): 1.2 kg-cm (16.6 oz/in)
- Torque(6V): 1.5 kg-cm (20.8 oz/in)
- Speed: 0.11 sec (4.8V) | 0.08 sec (6V)
- Operating Voltage: 4.8 - 6V
- Weight: 14.0g (0.49oz)
- Bearing Type: N/A
- Motor Type: Brushed
- Operating Temperature: -20?~60?
- Refresh Rate: 50 Hz
- Size: 23.0x12.2x27.5mm (0.91x0.48x1.08 in)

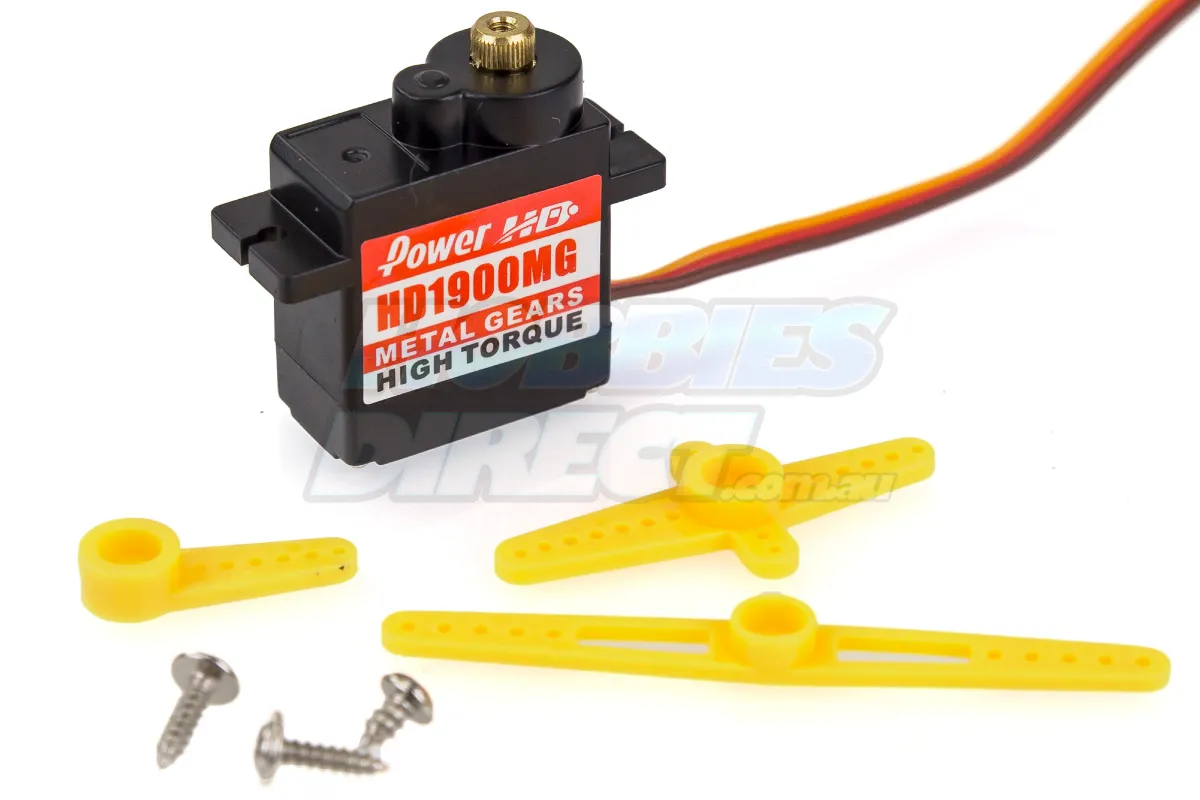

| Description | QTY |
|---|---|
| Micro 1900MG 1.5kg Metal Geared Servo | 1 |
-
Servo Spline Count
- 10Tooth
-
Total Length
- 32.5mm
-
Total Width
- 12mm
-
Bottom to Under Mount
- 16mm
-
Top to Under Mount
- 14mm
-
4.8V Sec/60 Degrees
- 0.11
-
Drive Motor Type
- Brushed
-
Rotational Degrees
- 120° (Normal)
-
6V Sec/60 DegreesSeconds per 60 degrees of rotation
- 0.08
-
Signal Type
- Analog
-
Case Material
- Plastic
-
6V Torque kg/cmKilograms of torque at 25mm away from the center of the spline
- 1.5
-
Gear Material
- Metal
-
Waterproof Casing
- No
-
Input Voltage Range
- 4.8VV, 6VV
-
Total Height
- 30mm
-
Body Length
- 23mm
-
4.8V Torque kg/cm
- 1.2
-
SizeConventionally sized servo names
- Micro
